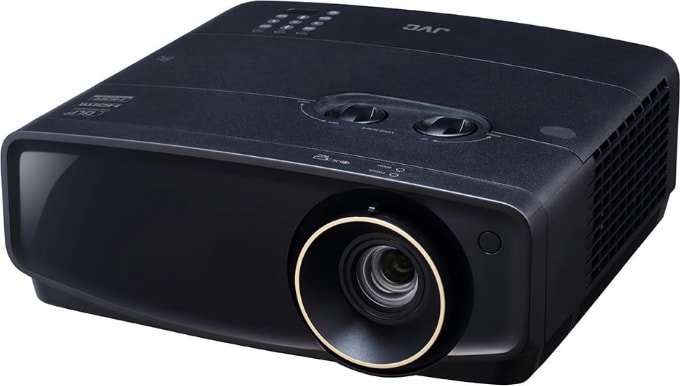

JVC LX-NZ3

    • 3000 lumens brightness
    • Laser light source
    • 4K UHD resolution


LINKS:
 OUR REVIEW    CALCULATOR    SPECS

UHD (3840 x 2160, 16:9)
3000 lumens
£3,898.80 (£3,249.00+VAT)
SKU
P5328

FREE UK Mainland Delivery

BUNDLE OFFERS (Applied at checkout)


FREE Premium XERXES HDMI Cable – 5m

VIEW THIS CABLE


£20 off Any Screen


VIEW SCREENS


£20 off Any Mount


VIEW MOUNTS

review
  • Image Quality
  • Features
  • Connectivity

Also available in white. If you require a white chassis please contact us to order.

The JVC-LX-NZ3 is a dedicated home cinema projector and features a laser light source combined with 4K UHD resolution (3840 x 2160 pixels, 16:9 aspect ratio). Generous lens shift (± 60% Vertical, ± 23% Horizontal) and a 1.6x optical zoom makes for precise image placement as well as flexibility in projector position.

Write Your Own Review
You're reviewing:JVC LX-NZ3
Your Rating

Screen Size Calculator

For recommendations for choosing your screen size please see our Screen size advice page.

Enter the size of the screen you wish to have
  • Screen Width cm
  • or
  • Screen Diagonal cm
Throw distance
JVC LX-NZ3 throw distance range: 290-960cm
Enter the distance between projector lens and screen
  • Throw distance cm
Width # cm Height # cm Diagonal # cm
Screen Size Calculator

To make sure this projector is the right fit for you room

JVC logo
Laser light source technology "BLU-Escent", achieves 3000lm brightness and 20,000 hours light source life
Laser light source technology "BLU-Escent" using blue laser diode for light source, realise both high brightness of 3,000lm and long life of approximately 20,000 hours. Thanks to the high brightness, it can be used in ambient light conditions such as living rooms, etc., and due to the increase of the peak brightness for HDR projection, images with a very wide dynamic range can be enjoyed.

Supports HDR (High Dynamic Range) contents
Contents recorded in HDR can be projected more vividly and dynamically with high resolution. In addition to HDR10 adopted for UHD Blu-ray, it also supports HLG (Hybrid Log Gamma) adopted for broadcasting etc. Furthermore, the LX-NZ3 automatically switches to the optimal picture mode when it detects each signal, so you can enjoy HDR content without any difficult settings.

"Auto Tone Mapping" function automatically optimise settings to HDR10 content (*1)
The brightness of the HDR10 content varies greatly by each video. Therefore, it is required to match the brightness setting (tone mapping) to each content in order to achieve the best image quality. LX-NZ3 is equipped with "Auto Tone Mapping" function that performs automatic adjustment based on mastering information (Max CLL / FALL *2) that indicates the brightness of the content, and you can enjoy the optimal setting for the content without any difficulties.
In addition, by combining this function with the HDR Optimiser installed in some Panasonic UHD-BD players, optimal HDR image can be realised regardless of the presence of mastering information.
(* 1: In the case of content that does not contain mastering information, it will refer to fixed value or need manual adjustment.
* 2: MaxCLL (Maximum Content Light Level), MaxFALL (Maximum Frame Average Light Level))

Wide lens shift with ± 60% vertical, ± 23% horizontal range with 1.6x zoom
The LX-NZ3 has lens shift with a wide ± 60% vertical, ± 23% horizontal range and is equipped with a 1.6x zoom that enables a projection distance of 3m to 4.8m for a 100 inch screen size.
This flexibly adapts to various installation environments without using keystone correction that degrades the image quality by electrical correction.

Dynamic light source control achieves high image quality and ∞: 1 contrast
The laser light source can control the light output instantaneously, so compared to conventional mechanical apertures, dynamic adjustment of brightness with less delay is possible. By controlling the output of the laser according to the brightness of the scene, LX-NZ3 can reproduce images closer to human perception. Moreover, when complete black signal is input, contrast of ∞ 1 can be realised by controlling the laser output.

High definition 4K image from a compact body
The LX-NZ3 achieves compactness of approximately 40cm in width and 34cm in depth, together with high definition 4K images thanks to the 0.47inch DMD. It can be installed easily without taking up space, such as the shelves, tables and ceiling installation in the living room etc.


Light Source
Laser
Display Type
DLP (1 Chip)
Resolution
4K UHD
Brightness (Lumens )
3000.000000
Contrast Ratio
Not specified by manufacturer
Lens Type
Fixed
Lens Ratio
1.36 to 2.17
Optical Zoom
1.6
Lens Shift Vertical Positive (%)
60
Lens Shift Vertical Negative (%)
60
Lens Shift Horizontal Positive (%)
23
Lens Shift Horizontal Negative (%)
23
Keystone Horizontal Negative (degrees)
0
Keystone Horizontal Positive (degrees)
0
Keystone Vertical Negative (degrees)
0
Keystone Vertical Positive (degrees)
0

Connectivity

HDMI

2

DisplayPort

0

HDBaseT

No

DVI-D

VGA in

1

VGA out

0

BNC Video

0

Composite Video

0

Component Video

0

USB for display and control

No

USB Type A for power

No

USB for PC Less Presentation

RJ45 For Control/Monitoring

0

RS232 For Control

1

Screen Trigger

Yes

Physical

Dimensions (W x H x D) in cm

40.5 x 14.6 x 34.1

Weight (Kg)

6.3

Fan Noise (db)

Fan Noise in Eco Mode (db)

Audio Output (Watts)

Chassis Colour

Black

Lamp Life (Hours)

20000

Lamp Life Eco Mode (Hours)

Warranty

Projector Warranty
Lamp Warranty

Product References

SKU
P5328 / 19603
