Panasonic PT-MZ17KLWEJ

The Panasonic PT-MZ17KLBEJ is the replacement to the PT-MZ16K and features 17,000 lumens, laser light source and a fleet of optional interchangeable lenses including the ET-EMU100 UST lens (0.33:1)

A range of advanced onboard installation features are also present including black level correction to match projections on curved surfaces, geometric correction, pinpoint correction and a liquid cooling system to name a few.

Optional Lenses for the Panasonic PT-MZ11K/14K/17K/20K:

• ET-EMU100 – WUXGA (0.330–0.353:1)

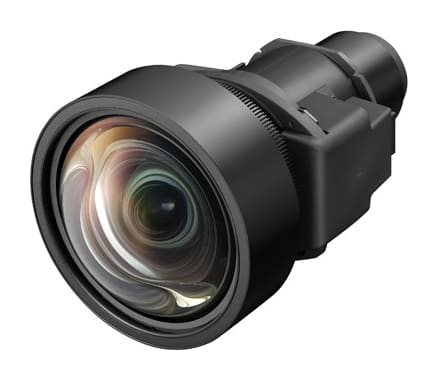

• ET-EMW200 – WUXGA (0.480-0.550:1)

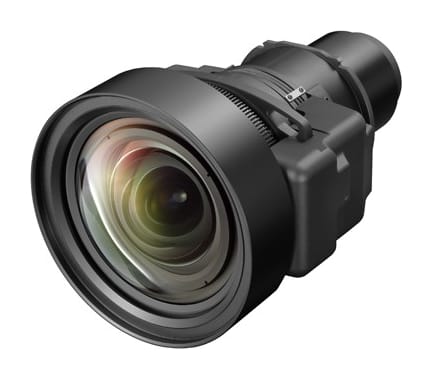

• ET-EMW300 – WUXGA (0.550-0.690:1)
• ET-EMW400 – WUXGA (0.690-0.950:1)

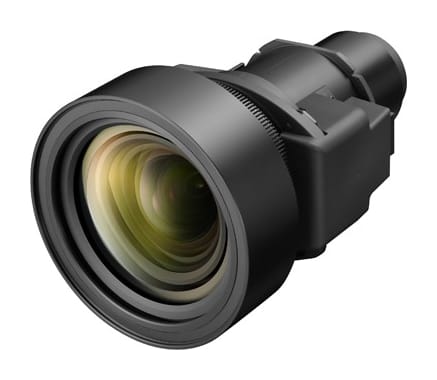

• ET-EMW500 – WUXGA (0.950-1.36:1)

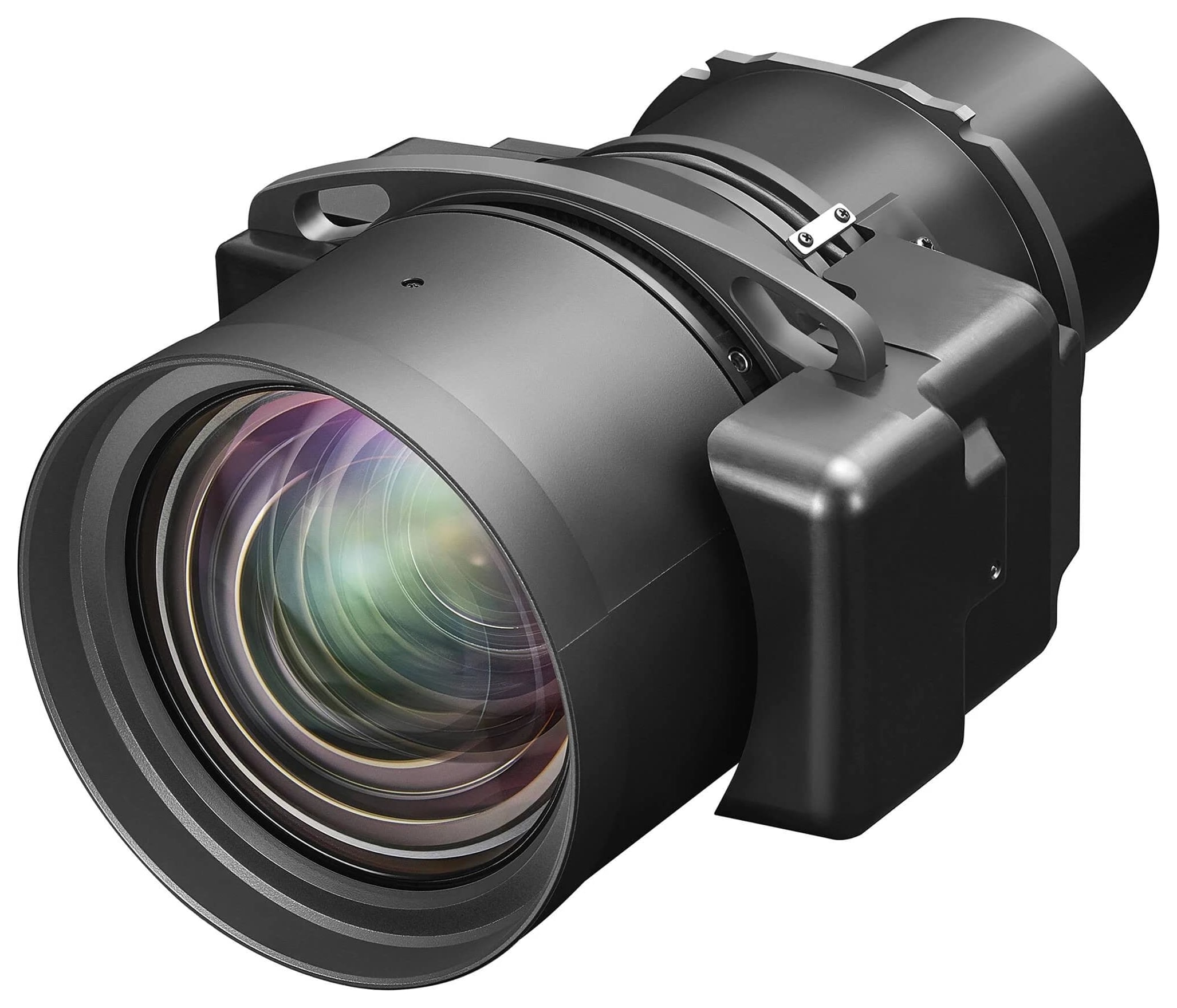

• ET-EMS650 – WUXGA (1.35-2.11:1)
• ET-EMT750 – WUXGA (2.11-4.14:1)
• ET-EMT850 – WUXGA (4.14-7.44:1)

World’s Quietest* Operation Allows Viewers to Concentrate on Your Presentation
PT-MZ20K Series achieves the world’s quietest* operation at 42 dB(2). Not only does it keep participants focused, it also contributes to an improved sound environment for applications such as hybrid conferences. When a quieter environment is required, noise level can be further reduced to 36 dB(3) by setting the projector to QUIET Mode. This helps create an environment where all viewers can concentrate on the presentation.
(* As of as of November 2022, based on LCD laser projectors with 20,000 lm brightness and above according to internal research.
2 PT-MZ20KL in NORMAL Mode. Noise levels of other models in NORMAL Mode are 38 dB for PT-MZ17KL and 35 dB for PT-MZ14KL/MZ11KL.
3 PT-MZ20KL in QUIET Mode. Noise levels of other models in QUIET Mode are 32 dB for PT-MZ17KL and 30 dB for PT-MZ14KL/MZ11KL. Brightness is reduced in QUIET Mode.)

Pure White Generator Delivers High Brightness and Rich Colour
Pure White Generator, developed by Panasonic Connect, contributes to rich colour reproduction at high brightness of up to 20,000 lm1. Efficient light collection uses a multi-reflection system to minimise loss of light-source energy noticeable with conventional systems. It achieves an optimal colour balance without sacrificing brightness for realistic and accurate colour expression.
(1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.)

Multi-Laser Drive Engine Anticipates Unforeseen Circumstances
Multi-Laser Drive Engine ensures stable projection even if light-source problems occur. The projector is equipped with multiple modules consisting of many laser diodes, and in the unlikely event one of the elements malfunctions, Panasonic Connect’s unique Failover Circuitry is activated so that projection can continue with virtually no reduction in brightness. This allows the projector to be used with peace of mind in situations where a drop in brightness could affect important presentations, such as large-scale lectures and seminars.

Long-Term Stability with Unique Liquid-Cooling System and Dustproof Structure
To achieve high brightness and stable operation, we adopted a liquid-cooling system originally developed for our DLP projection systems. This efficient design circulates cooling liquid to the light-source modules directly, preventing temperature increases associated with high-brightness projection. Combined with a highly reliable original dustproof structure, the system enables stable performance even in hot, dusty environments.

Backup Input* Function for Enhanced Reliability
Backup Input* function enables seamless projection even if the input signal is disrupted. With HDMI 1 set as the primary input and HDMI 2 set as the secondary input, the projector switches to HDMI 2 in as little as 0.3 seconds2 if the signal to HDMI 1 is disrupted. This improves reliability and ensures stable operation in environments where video presentation must not be interrupted.
(* Primary Input (HDMI 1) and Secondary Input (HDMI 2) terminal assignment is fixed. Input signals to primary and secondary inputs must be identical.
2 Varies depending on the Backup Input mode and the connected external device.)

Delivering up to 20,000 lm* on AC 100–240 V, an Industry First**

Up to 20,000 lm* on AC 100–240 V Power
This series is the first in the industry** to achieve up to 20,000 lm* on AC 100–240 V input voltage. Conventional projectors require an AC 200–240 V power supply to project at 20,000 lm*, but this series can project images using an ordinary power outlet. This eliminates need for high-voltage power supply installation, and greatly expands the range of situations in which a 20,000 lm-class projector can be deployed.
(* Light output of PT-MZ20KL. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
** As of as of November 2022, based on LCD laser projectors with 20,000 lm brightness and above according to
internal research)

Data Cloning Function Now Compatible with USB Memory
Data cloning function allows the user to copy setting and adjustment values from Main projector to Sub projectors. Data can be copied to up to 99 units via LAN or USB. This function reduces time and effort required when setting up multiple projectors.
Note: Data-cloning is supported among models in the same series with the same resolution. Excludes passwords, projector ID, and network settings.

Geometric Adjustment Corrects Trapezoidal Distortion and Curved Screens
With built-in Geometric Adjustment, various distortions on the screen can be corrected via remote control. In addition to trapezoidal distortion resulting from angled projection, Curved Screen Correction fixes distortion caused by projection onto curved surfaces. Corner Correction allows the user to specify four screen corners, such as the upper right and lower right, for correction. Screen proportions can be maintained and corrections can be saved as data.

Free Grid Enables Pinpoint Correction of Local Distortion
In addition to built-in Geometric Adjustment function, Free Grid allows pinpoint correction of local distortion within the screen. Grids between 2 x 2 and 17 x 17 lines can be selected to allow point-by-point correction, or batch correction by specifying vertical and horizontal lines. Correction data is maintained even after changing the number of grids or points, allowing smooth transition from basic to detailed correction. This convenient function allows adjustment of special screens, such as irregular or uneven wall surfaces, with the remote control.

Smart Projector Control App* for Smooth Installation
Smart Projector Control app* allows you to control the projector from a smartphone. By scanning the QR code(2) displayed on the OSD menu screen or Information Monitor and connecting to wireless LAN, switching input signals and other functions can be performed from a mobile device. In addition to being able to control up to 64 devices simultaneously, it also supports lens adjustment, test-pattern switching, and focus adjustment using your device’s camera3 from a distance of 30 m4.
(*Check device compatibility at the App Store or the Google Play store.
2 Requires optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.
3 Some devices do not support projector autofocus function.
4 When projecting a 300-inch image. Maximum distance is 3 m (10 ft) for a 100-inch image.)

Black Level Correction to Match Screen Shape
With conventional black level correction, only the width and angle of the black border are specified for correction, making edge-blending on curved screens difficult. To solve this problem, PT-MZ20K Series is equipped with a function that allows the shape of black borders to be adjusted to match the screen shape. Using up to 17 points, flexible black level correction is possible even on curved screens, enhancing the sense of cohesion in multi-screen applications.

Lens Lineup is Compatible with AFO* (Active Focus Optimiser)
A variety of optional lenses (eight models(2) in total) are available to support a range of screen sizes between 80 and 600 inches, allowing you to select the optimal lens for your projection needs. These lenses are equipped with a temperature sensor and automatically correct focus in conjunction with the projector’s AFO2 function. This technology maintains a sharp image regardless of the brightness of the content, eliminating need for manual focus adjustment. Of course, powered lens-shift and zoom adjustment is also supported via remote control or Smart Projector Control app(3).
(*Specifications vary depending on the lens. Please refer to the Operating Manual for details.

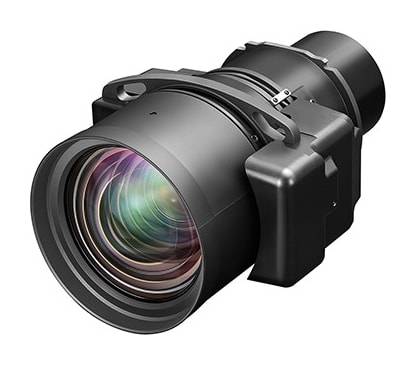

2 PT-MZ17KL/MZ14KL/MZ11KL are also compatible with previously released ET-EMS600/EMT700/EMT800 lenses.
3 Check device compatibility at the App Store or the Google Play store.)

Compatible with Ultra-Short-Throw Zoom Lens for Space-Saving Installation
ET-EMU100 Ultra-Short-Throw Zoom Lens has a throw ratio of 0.330–0.353:1 and a screen size range of 100–400 inches, and enables large-screen projection even from tight installation spaces. With no gap (offset area) between the ceiling and the screen, ET-EMU100 eliminates need for adjustment and expands the range of visual expression by supporting the zoom function despite its ultra-short focus.

Supports 4K Signal Input*
Uncompressed 4K/60p input signals* are supported via HDMI or DIGITAL LINK. Since no external devices such as converters are required, 4K signals can be processed smoothly. This eliminates the need for re-encoding when the projector is used with other 4K-compatible equipment, making projection with 4K signals simple and efficient.
(*Input signals are converted to the projector’s display resolution upon playback. 4K/60p signals are supported via HDMI and DIGITAL LINK terminals. 4K/60p and 4K/50p signals input via DIGITAL LINK are supported in YPBPR 4:2:0 format only.)
