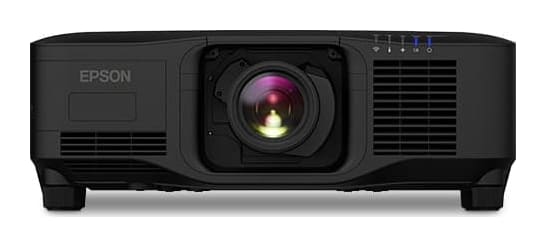

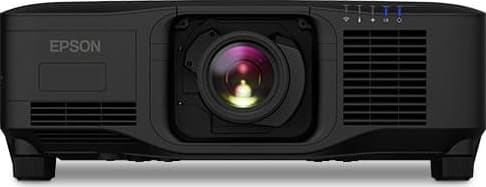

Epson EB-PU2216B

Incredible Colour
Epson 3-chip 3LCD technology produces 16,000 lumens of equal white and colour brightness

WUXGA with 4K Enhancement
Accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image

Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source

Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
Optional Lenses for the Epson EB-PU2216B :

• ELPLX02S – 0.35:1 UST LENS (Lens Shift : Vertical + 25% Horizontal +/-15%)
• ELPLU03S – 0.48 – 0.57:1 LENS (Lens Shift : Vertical + 24% Horizontal +/-10%)
• ELPLU04 – 0.64 – 0.77:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLW05 – 0.77 – 1.07:1 LENS (Lens Shift : Vertical +/- 24% Horizontal +/-10%)
• ELPLW06 – 1.19 – 1.62:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM15 – 1.57 – 2.56:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM10 – 2.42 – 3.71:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM11 – 3.54 – 5.41:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLL08 – 5.27 – 7.41:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLW08 – 0.86 – 1.2:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)

Engineered for reliability
hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation

Outstanding image quality
high native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support5 and scene adaptive gamma correction for true-to-life images

– Fast installation — built-in NFC functionality and easy-to-use Android and iOS mobile app, Epson Projector Configuration Tool (EPCT), to streamline multi-projector installations

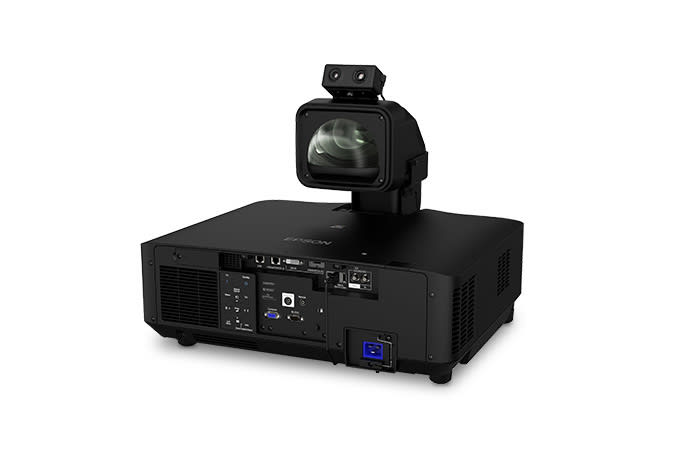

– Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, colour calibration and screen matching

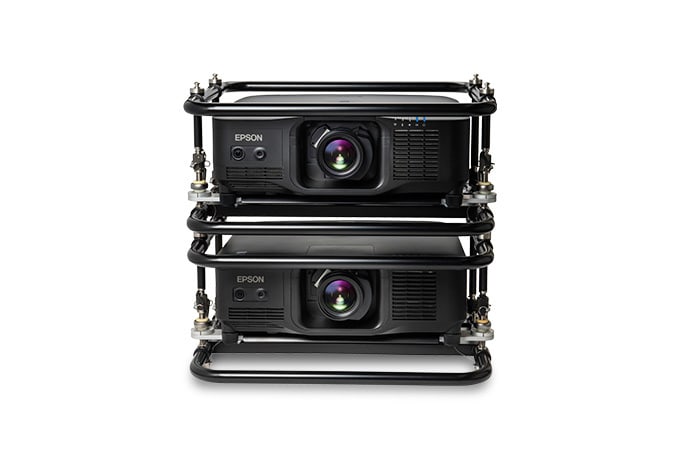

– Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera
– Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT9); easily manage your installed inventory using Epson Projector Management
– Built-in media player — remotely update playlists and content with the Epson Projector Content Manager application
– Custom brightness and constant brightness modes — helps maximise light source life and provide a consistent brightness level

Eco Features
– RoHS compliant
– Recyclable product
– Epson America, Inc. is a SmartWay® Transport Partner

Screen size compatibility

1524 – 25400 mm (60 – 1000″)

Contrast ratio (typical)

2000:1

Contrast ratio (dynamic)

2500000:1

Zoom ratio

1.6:1

Zoom capability

Yes

Projector brightness (economic mode)

11200 ANSI lumens

Matrix size

2.62 cm (1.03″)

Projection technology

3LCD

Projector brightness

16000 ANSI lumens

Zoom type

Auto

Lamps

Light source type

Laser

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Lens system

Focal length range

varies by lens

Horizontal lens shift range

0 – 18%

Vertical lens shift range

-60 – 60%

Throw ratio

0.35 – 7.41:1

Interchangeable lens

Yes

Lens position memory

10

Video

Video processing

10 bit

Video colour modes

Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709

Full HD

Yes

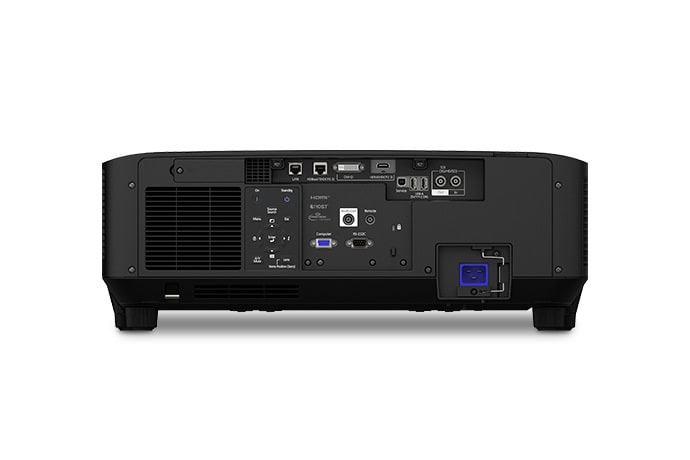

Ports & interfaces

HDBaseT port

Yes

USB 2.0 Type-B ports quantity

USB 2.0 Type-B ports quantity

1

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity

1

HDMI ports quantity

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

USB 2.0 ports quantity

3

Serial interface type

RS-232C

DVI port

Yes

AC (power) in

Yes

Service port type

USB Type-B

USB 2.0 Type-A ports quantity

USB 2.0 Type-A ports quantity

2

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

No

Sound emission

Noise level

38 dB

Noise level (economic mode)

34 dB

Technical details

Product colour

Black

Preset modes

Cinema, Dynamic

Performance

Password protection

Yes

Features

4K Ultra HD upscaling

Yes

Country of origin

China

Design

Product type

Standard throw projector

Cable lock slot type

Kensington

Cable lock slot

Yes

Placement

Ceiling, Desktop, Flying frame

Power

AC input voltage

200-240 V

AC input frequency

50 – 60 Hz

Power consumption (typical)

1083 W

Power consumption (standby)

0.4 W

Power consumption (economy mode)

773 W

Software

Bundled software

Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool

Software support

via: AMX, Crestron (Network), Extron

Operational conditions

Storage temperature (T-T)

-10 – 60 °C

Weight & dimensions

Weight

24.2 kg

Width

586 mm

Depth

492 mm

Height

218 mm

Packaging content

Remote control included

Yes

Warranty card

Yes

Manual

Yes

Cables included

AC

Batteries included

Yes

WLAN adapter included

Yes

Other features

Supported network protocols

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
