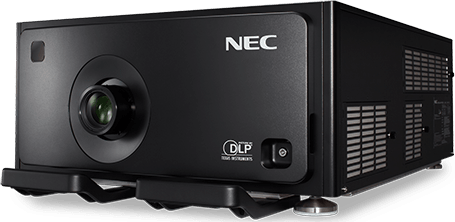

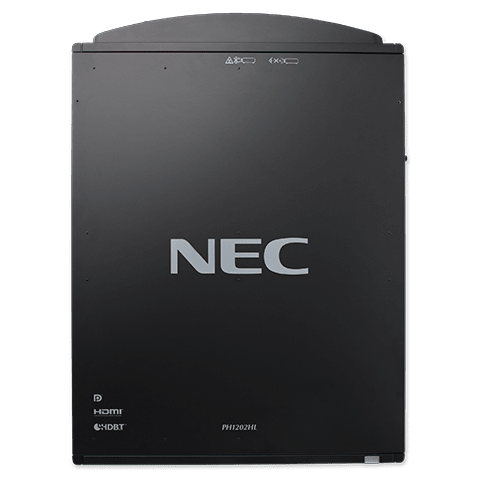

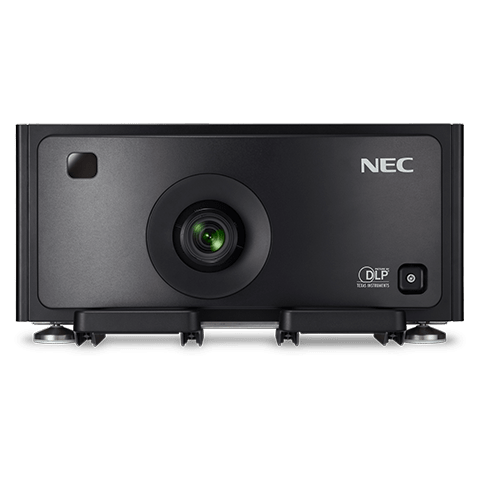

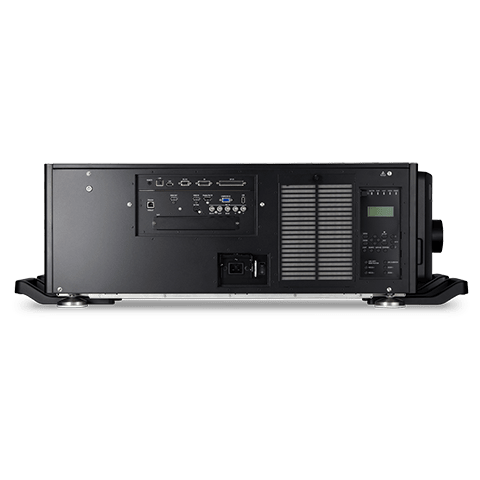

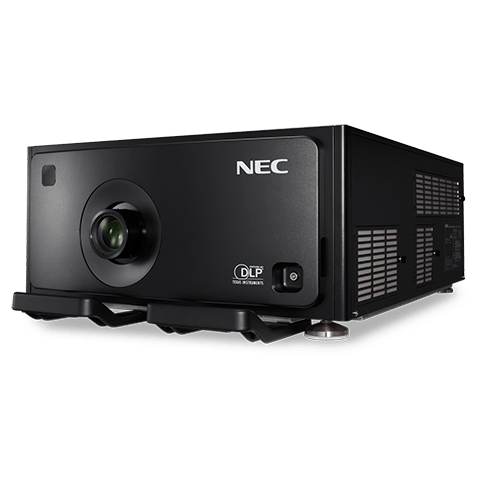

NEC PH1202HL

    • 12000 lumens brightness
    • Laser light source
    • 1080p resolution
    • 3 Years advance replacement warranty


LINKS:
  CALCULATOR    SPECS

HD (1920 x 1080, 16:9)
12000 lumens
Contact us Contact us
SKU
P4035

FREE UK Mainland Delivery



BUNDLE OFFERS (Applied at checkout)


FREE XERXES Premium HDMI Cable – 10m

VIEW THIS CABLE


£50 off Any Mount


SEE MORE


£200 off Any Lens


SEE MORE

review
  • Image Quality
  • Features
  • Connectivity
Write Your Own Review
You're reviewing:NEC PH1202HL
Your Rating
Screen Size Calculator

To make sure this projector is the right fit for you room

NEC logo
NEC's new bright NEC PH1202HL, a 3DLP Laser Installation Projector delivers all the benefits associated with the latest laser light source. With no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an outstanding colour gamut and supreme image detail at high resolutions, laser is the light source of the future.

Addressing the demanding large venue environment, the new NEC PH1202HL presents high brightness, Super Dust Protection and professional installation features for superior projection performance within Rental/Staging, Higher Education, Museums, large Corporates and Signage installations.

Key highlights:

  • No lamp replacement - up to 20000 h maintenance free operation possible due to Laser Light Source.
  • Easy installation - selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free installation and replacement of old installation projectors.
  • Easy way to a big picture - up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large presentation pictures without any external devices. PiP function allows additional sources to be displayed.
  • Perfect Image quality - high brightness, up to 12.000 ANSI input signal and unique picture and colour processing technology based on the latest NEC scaler chip achieves outstanding picture quality.
  • Rich connectivity - including HDBaseT, the world’s first HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding connectivity.
  • Widest application support - portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability.
  • Super Dust Protection - NEC's patented heat exchanger and the completely sealed optical engine offer continuously best performance in harsh Rental/Staging environment.
  • Image

    Light Source
    Laser
    Display Type
    DLP (1 Chip)
    Resolution
    1080p
    Brightness (Lumens )
    12000.000000
    Contrast Ratio
    10000
    Lens Type
    Removable
    Lens Ratio
    to
    Optical Zoom
    Lens Shift Vertical Positive (%)
    5
    Lens Shift Vertical Negative (%)
    5
    Lens Shift Horizontal Positive (%)
    11
    Lens Shift Horizontal Negative (%)
    11
    Keystone Horizontal Negative (degrees)
    40
    Keystone Horizontal Positive (degrees)
    40
    Keystone Vertical Negative (degrees)
    40
    Keystone Vertical Positive (degrees)
    40

    Connectivity

    HDMI

    1

    DisplayPort

    1

    HDBaseT

    Yes

    DVI-D

    0

    VGA in

    1

    VGA out

    1

    BNC Video

    1

    Composite Video

    0

    Component Video

    0

    USB for display and control

    No

    USB Type A for power

    No

    USB for PC Less Presentation

    RJ45 For Control/Monitoring

    1

    RS232 For Control

    1

    Screen Trigger

    No

    Physical

    Dimensions (W x H x D) in cm

    68.0 x 33.3 x 86.0

    Weight (Kg)

    68

    Fan Noise (db)

    47

    Fan Noise in Eco Mode (db)

    43

    Audio Output (Watts)

    Chassis Colour

    Black

    Lamp Life (Hours)

    20000

    Lamp Life Eco Mode (Hours)

    30000

    Warranty

    Projector Warranty
    3 Years advance replacement
    Lamp Warranty
    3 Years or 10000 hours (whatever comes first)

    Product References

    SKU
    P4035 / 16593
