ViewSonic LS901HD
SKU: p5915
- 6000 Lumens Brightness (Laser / DLP)
- 1080p Resolution – 16:9 Aspect Ratio
- Lens Ratio 1.2-2.04 : 1
- Projector warranty: 3 Years Swap Out
- Free additional 2 year warranty extension. End user claim required directly to ViewSonic
- Laser warranty: 5 Years or 20,000 hours
- Volume discounts available
£1,584.00 Excl. VAT
WishlistIn Wishlist
We offer credit terms to education, health, government bodies and PLC companies.
Email official purchase orders to info@projectorpoint.co.uk
We can advise you on all technical aspects of this projector.
Bundle Offers (Applied at Checkout)
£20 off any Projector Screen
View All Screens
£20 off any Mount
View All MountsQuick Links
Manufacturer Overview
Introducing the LS901HD from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 6,000 ANSI Lumens brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. With a 1.7x optical zoom, it allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. The projector also features HDMI 2.0b, allowing you to enjoy original 4K quality content with HDR and HLG support. Employing advanced 3rd generation laser phosphor technology, the LS901HD boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.
Technical Specifications
- Native Resolution
- 1920×1080
- Brightness (ANSI Lumens)
- 6000
- Brightness (Center Lumens)
- 6600
- Contrast Ratio
- 3000000:1
- Display Color
- 1.07 Billion Colors
- Light Source Type
- Laser Phosphor
- Light Source Life (hours) – Normal Mode
- 20000
- Light Source Life (hours) – SuperEco Mode
- 30000
- Lens
- F=2.3-3.0, f=17.63-27.9mm
- Projection Offset
- 154% +/- 10%
- Throw Ratio
- 1.2-2.04
- Optical Zoom
- 1.7X
- Digital Zoom
- 0.8x-2.0x
- Image Size
- 30″-300″
- Minimum Throw Distance
- 0.80m
- Maximum Throw Distance
- 13.55m
- Keystone (Horizontal)
- +/-30°
- Keystone (Vertical)
- +/-30°
- Lens Shift (Vertical)
- 0%, -21%
- Audible Noise (Normal)
- 31dB
- Audible Noise (Eco)
- 25dB
- Input Lag
- 16ms
- Resolution Support (Minimum)
- VGA(640 x 480)
- Resolution Support (Maximum)
- 4K UHD(3840 x 2160)
- HDTV Compatibility
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
- Horizontal Frequency
- 15K-135KHz
- Vertical Scan Rate
- 23-120Hz

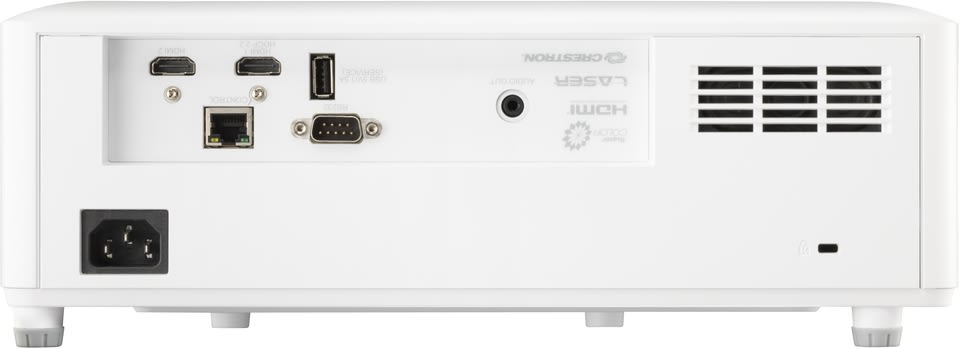

Input
- HDMI Ports
- 2 (HDMI 2.0/ HDCP 2.2, HDMI 1.4/ HDCP 1.4)
Audio-out (3.5mm)
- Audio-out (3.5mm)
- 1
- Speaker
- 15W x2
- USB Type A (Power)
- 1 (5V/1.5A)
RS232 (DB 9-pin male)
- RS232 (DB 9-pin male)
- 1
RJ45 (LAN control)
- RJ45 (LAN control)
- 1
- USB Type A (Services)
- 1 (share with USB A Output)
Power
- Power Supply Voltage
- 100-240V+/- 10%, 50/60Hz
- Power Consumption (Normal)
- 245W
- Power Consumption (Standby)
- <0.5W
- Operating Temperature
- 0~40?
Weight & Dimensions
- Net Weight
- 4.77kg
- Gross Weight
- 6.7kg
- Dimensions (WxDxH) with Adjustment Foot
- 337x280x132mm
- Packing Dimensions
- 496x387x195mm
Other
- OSD Languages
- English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Farsi, Vietnamese, Indonesian, Romanian, Slovakian
- User Guide Languages
- English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese
Power Cord
- Power Cord
- 1
Remote Control
- Remote Control
- 1
- QSG
- Yes
- Warranty Card
- Yes (CN Only)
Optional Accessory
- Wall/Ceiling Mount
- PJ-WMK-007
