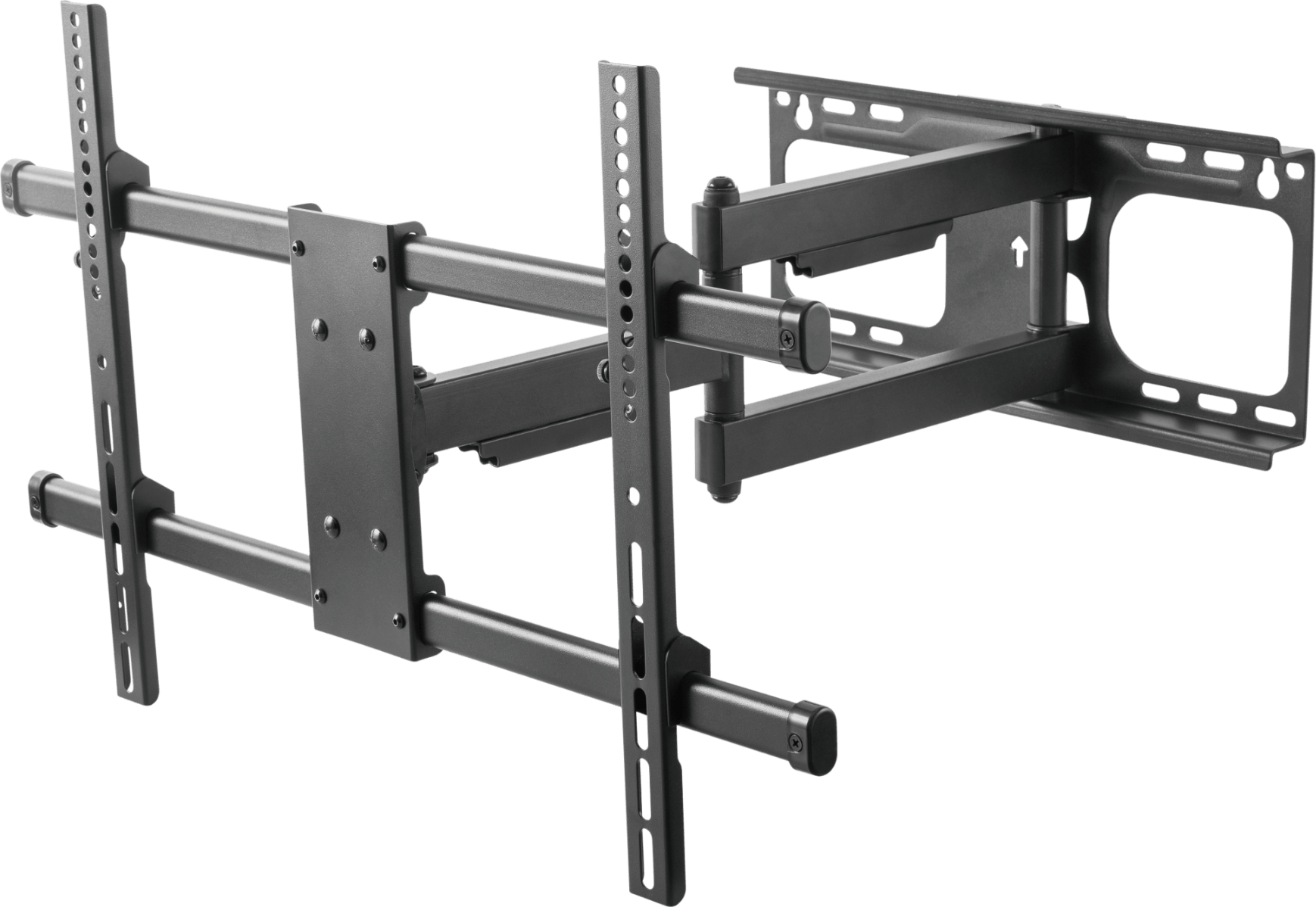

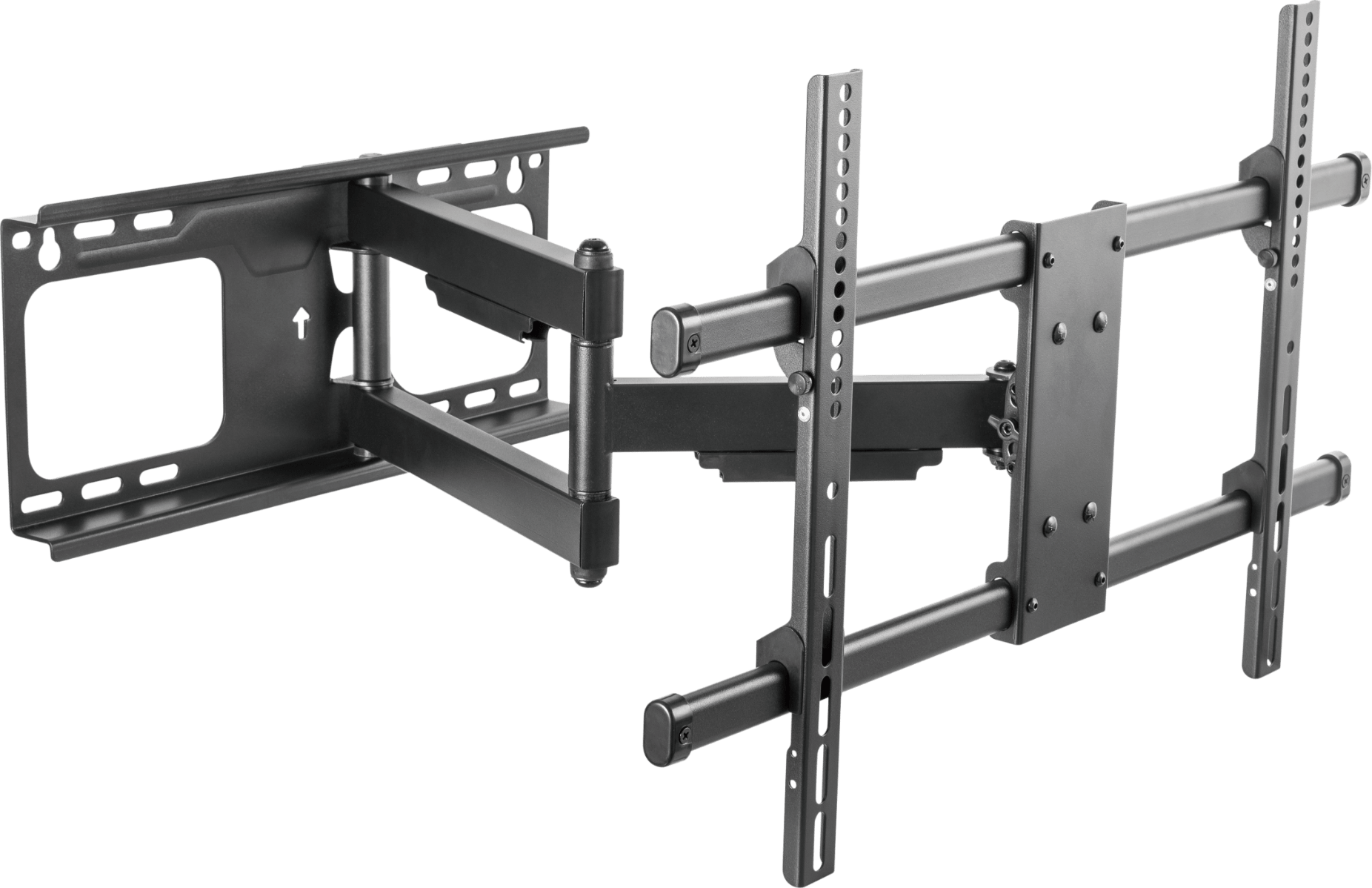

Vision – Articulating Wall Mount (VFM-WA6X4/3)

Vision’s Vision Flat-Panel Mount – Wall Arm range is tough and flexible. The VFM-WA6X4/3 fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 x 400 mm apart.

Up to 70″
Most larger displays use VESA arrangement of mounting points up to 600 x 400 mm apart, so the WA6X4 fits the majority of displays up to this size. Note: if a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

Safe Working Load
The strong mechanical design has a “safe working load” of 30 kg/ 66 lbs.

Adjust Level
Didn’t fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.

Tilt and Swivel

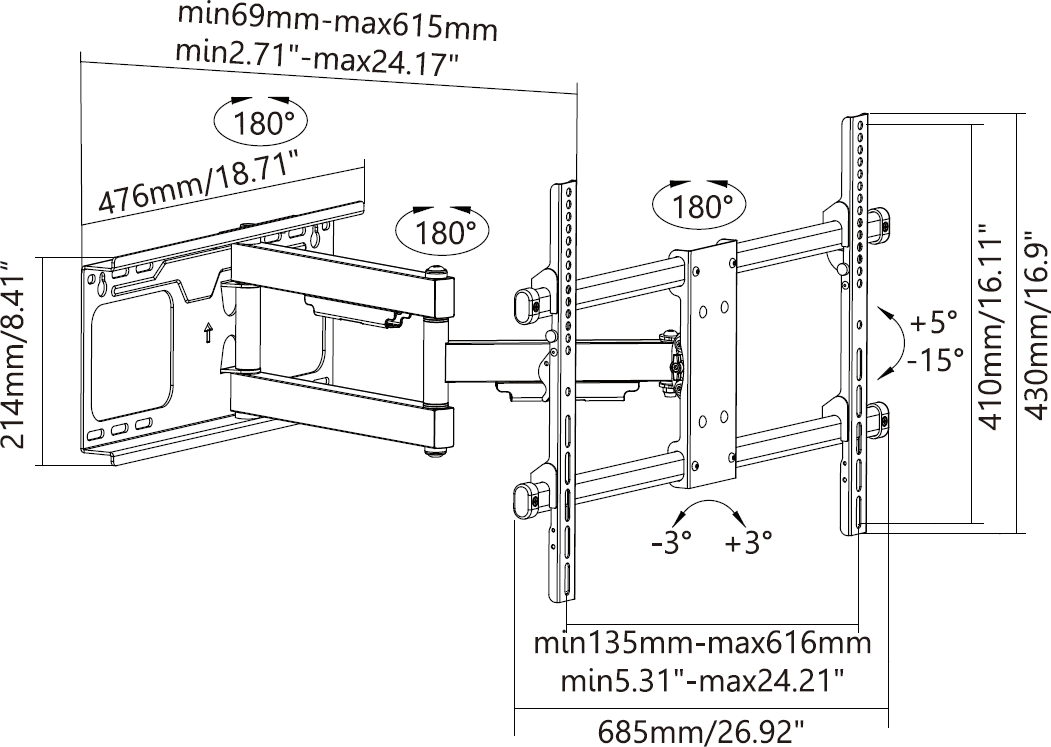

-5-15° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.

VESA

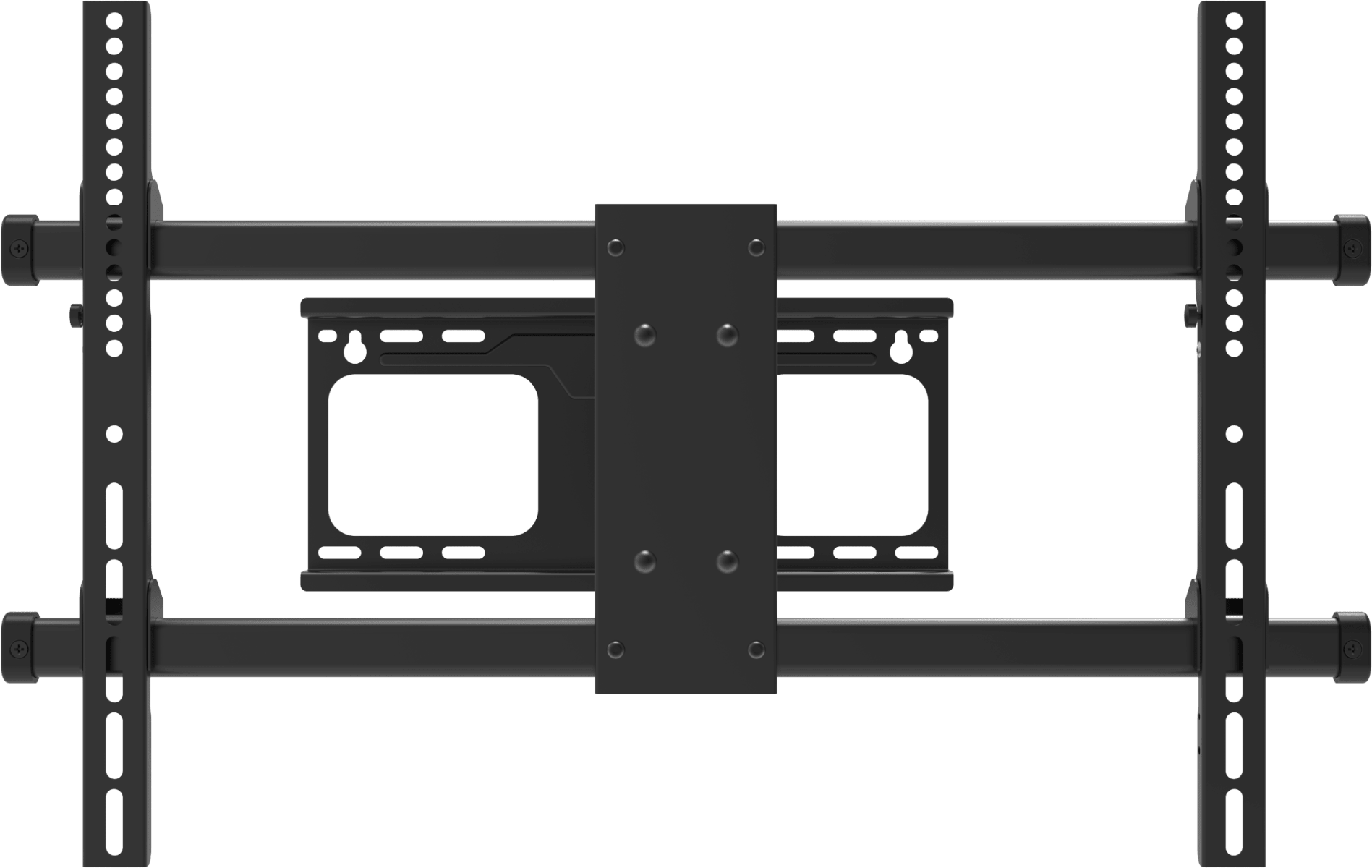

The VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 600 x 400 mm apart are known as VESA 600×400 and will suit this mount. This mount also covers all smaller VESA sizes down to 200 x 200.

Cable Management
Integrated sleeves allow cables to be routed under the arm.

Secure
Once the display assembly latches in place two thumbscrews can be added to the latch to lock it in place.
