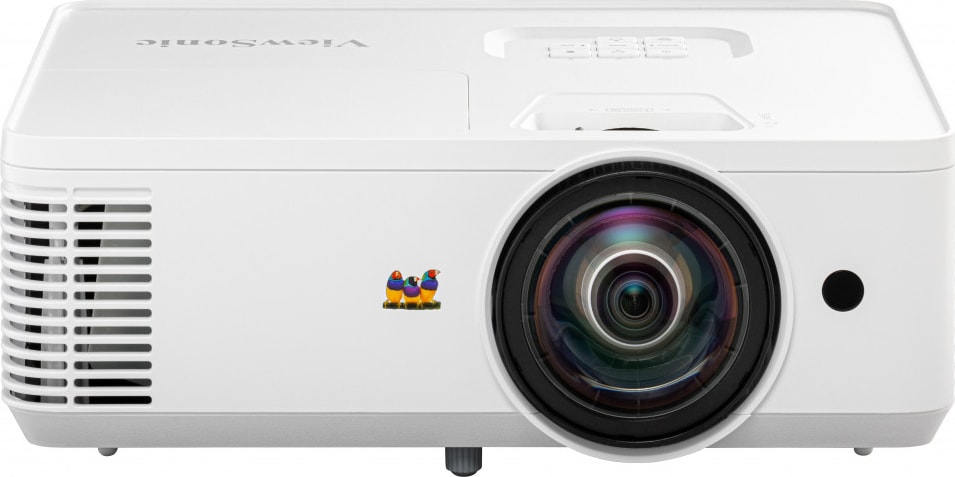

ViewSonic PS502W
SKU: P5846
Dedicated short throw projector with 0.52:1 lens ratio. Bright, WXGA resolution images. Cost effective, good all rounder.
- 4000 Lumens Brightness (Lamp / DLP)
- WXGA Resolution – 16:10 Aspect Ratio
- Lens Ratio 0.52-0.52 : 1
- 3 Year Pickup, Repair and Return warranty
- 1,000 Hours Lamp warranty
- 2.87 KG
- Volume discounts available
£459.00 Excl. VAT
WishlistIn Wishlist Quick Links
Projectorpoint Opinion
The Viewsonic PS502W Projector is a WXGA dedicated short throw projector that is perfect for business and educational environments. With 4,000 ANSI lumens of brightness, it delivers clear and vibrant visuals even in spaces with ambient light. This makes it ideal for meeting rooms, classrooms, and other bright environments.
One of the standout features of the PS502W is its short throw projection capability. With a 0.52:1 short throw ratio, it can provide a 100″ large screen size from just 1.1m away. This means that even in small spaces, you can enjoy a big screen experience without being obstructed by shadows or eye glare.
In terms of usability, the PS502W excels with its user-friendly interface and intuitive controls. The menu system is straightforward, making it easy to navigate and adjust settings. The remote control is well-designed and responsive, providing convenient access to all the projector’s functions.
Overall, the Viewsonic PS502W with its impressive image quality, versatility, and user-friendly interface, offers a great value for your money.
Manufacturer Overview
The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centres.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you’re guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colours for Captivating Presentations
Impress any audience with ViewSonic’s exclusive colour technology and elevate your presentation with a true-to-life colour experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
Technical Specifications
- Number of colours
- 1.07 billion colours
- Projector native resolution
- WXGA (1280×800)
- Screen size compatibility
- 1524 – 7620 mm (60 – 300″)
- Projection distance
- 0.67 – 3.36 m
- Contrast ratio (typical)
- 15000:1
- Zoom capability
- Yes
- Vertical scan range
- 23 – 120 Hz
- Horizontal scan range
- 15 – 102 kHz
- Keystone correction, vertical
- -19 – 19°
- Projector brightness
- 4000 ANSI lumens
- Smart projector
- No
Lamps
- Lamp type
- UHP
- Lamps quantity
- 1 lamp(s)
- Lamp power
- 240 W
- Light source type
- Lamp
- Service life of light source
- 4000 h
- Service life of light source (economic mode)
- 12000 h
Lens system
- Fixed focal length
- 7.51 mm
- Focus
- Manual
- Throw ratio
- 0.52
- Offset
- 112.40%
- Digital zoom
- 2x
- Fixed aperture
- 2.8
Video
- Analog signal format system
- NTSC, PAL, SECAM
- Full HD
- Yes
- 3D
- No
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080)
- Built-in speaker(s)
- Yes
- RMS rated power
- 16 W
Ports & interfaces
- HDMI connector type
- Full-size
- PC in (D-Sub)
- Yes
- HDMI version
- 1.4
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 2
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio out
- Yes
- PC Audio in
- Yes
- DVI port
- No
- AC (power) in
- Yes
- Service port type
- USB Type-A
USB 2.0 Type-A ports quantity
- USB 2.0 Type-A ports quantity
- 1
Network
- Smart TV
- No
- Ethernet LAN
- No
- Wi-Fi
- No
- Card reader integrated
- No
Sound emission
- Noise level
- 34 dB
- Noise level (economic mode)
- 25 dB
Technical details
- Product colour
- White
- HDCP
- Yes
- Air filter
- Yes
- Image lag time
- 33.2 ms
Features
- Interactive
- No
- HDCP version
- 1.4
Design
- Product type
- Standard throw projector
- Cable lock slot type
- Kensington
- LED indicators
- Yes
- Cable lock slot
- Yes
Power
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 295 W
- Power consumption (standby)
- 0.5 W
Packaging data
- Package width
- 400 mm
- Package depth
- 337 mm
- Package height
- 168 mm
- Package weight
- 4.08 kg
- Remote control type
- IR
Weight & dimensions
- Weight
- 2.87 kg
- Width
- 309 mm
- Depth
- 234 mm
- Height
- 115 mm
Packaging content
- Remote control included
- Yes
- Warranty card
- Yes
- Quick start guide
- Yes
- Cables included
- AC, VGA
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
