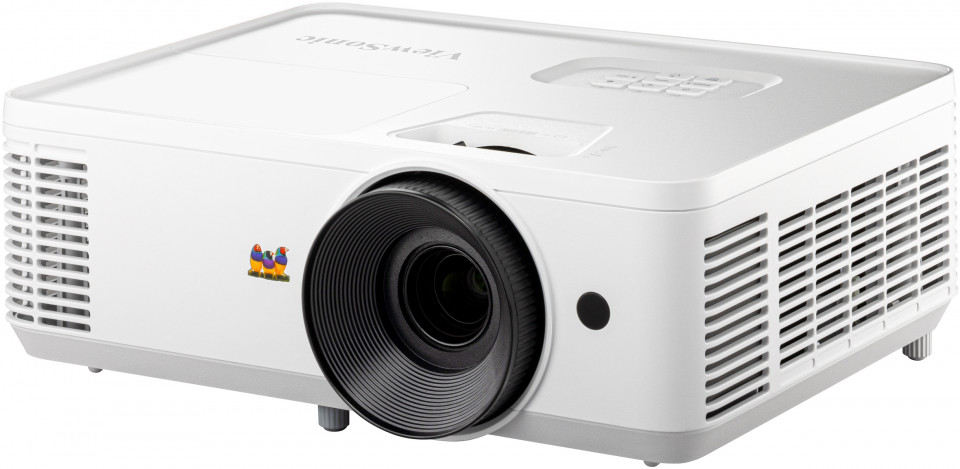

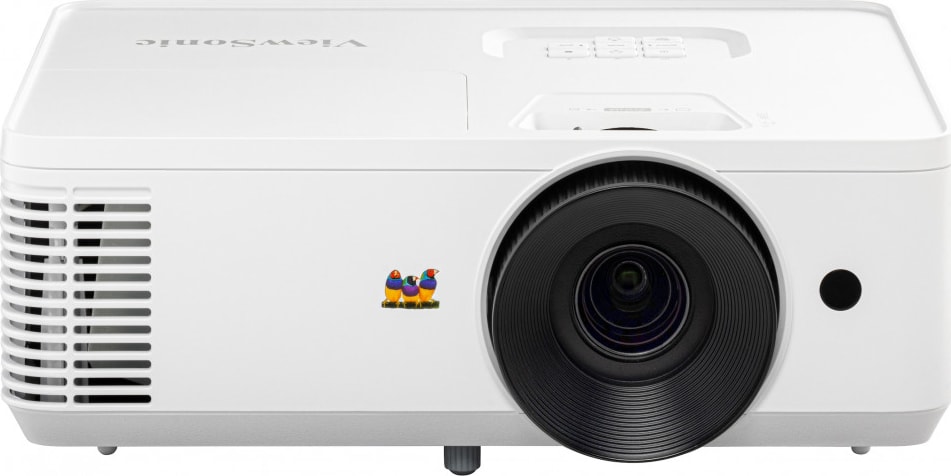

ViewSonic PA700X
This product is now discontinued. Please contact us for details of a replacement product
The ViewSonic PA700X is a bright XGA resolution projector with 4,500 lumens, perfect for bright environments like meeting rooms or classrooms
- 4500 Lumens Brightness (Lamp / DLP)
- XGA Resolution – 4:3 Aspect Ratio
- Lens Ratio 1.94-2.16 : 1
- Projector warranty: 2 Year Pickup, Repair and Return
- Lamp warranty: 1 Year or 1,000 Hours
- 2.7 KG
- Volume discounts available
Quick Links
Projectorpoint Opinion
The Viewsonic PA700X Projector is a bright XGA resolution projector that is a good choice for business and education environments. With 4,500 ANSI Lumens of brightness, this projector delivers clear and vibrant visuals even in spaces with a ambient light (not direct ambient light on the screen).
With dual HDMI ports on the PA700X, you can easily connect multiple devices without the need to constantly switch cables. The on-screen display allows you to effortlessly select and change the input source. Additionally, the USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient.
Overall, the Viewsonic PA700X projector is a reliable and versatile option for business and education environments. Its good level of brightness, easy connectivity, and vibrant colours all at a competitive price point.
Manufacturer Overview
The PA700X is ViewSonic’s high brightness XGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centres.
High Brightness for Business & Education Environments
Thanks to 4,500 ANSI Lumens brightness, you’re guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Present the Best with Vibrant Colours
Impress any audience with ViewSonic’s exclusive colour technology and elevate your presentation with a true-to-life colour experience.
A Simpler Way to Update Projector Software
Skip trips to the service centre by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Technical Specifications
- Number of colours
- 1.07 billion colours
- Projector native resolution
- XGA (1024×768)
- Screen size compatibility
- 762 – 7620 mm (30 – 300″)
- Projection distance
- 1.18 – 13.17 m
- Contrast ratio (typical)
- 12500:1
- Zoom capability
- Yes
- Vertical scan range
- 23 – 120 Hz
- Horizontal scan range
- 15 – 102 kHz
- Keystone correction, vertical
- -40 – 40°
- Projector brightness
- 4500 ANSI lumens
- Smart projector
- No
Lamps
- Lamp type
- UHP
- Lamps quantity
- 1 lamp(s)
- Lamp power
- 240 W
- Light source type
- Lamp
- Service life of light source
- 4000 h
- Service life of light source (economic mode)
- 12000 h
Lens system
- Focus
- Manual
- Focal length range
- 21.85 – 24.01 mm
- Aperture range (F-F)
- 2.42 – 2.53
- Throw ratio
- 1.94 – 2.16
- Optical zoom
- 1.1x
- Offset
- 115%
- Digital zoom
- 2x
Video
- Analog signal format system
- NTSC, PAL, SECAM
- Full HD
- Yes
- 3D
- No
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080)
- Built-in speaker(s)
- Yes
Number of built-in speakers
- Number of built-in speakers
- 1
- RMS rated power
- 3 W

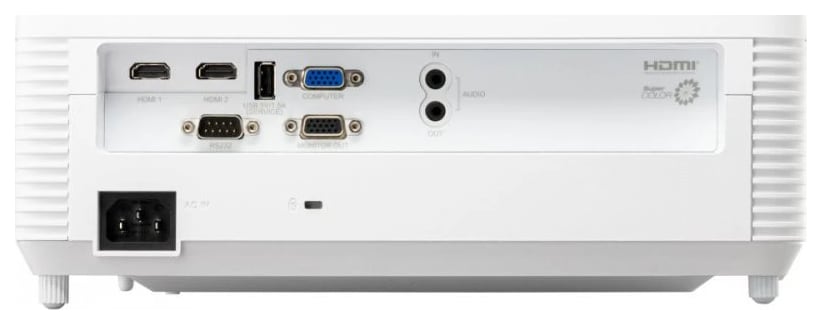

Ports & interfaces
- HDMI connector type
- Full-size
- PC in (D-Sub)
- Yes
- HDMI version
- 1.4
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 2
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio out
- Yes
- PC Audio in
- Yes
- DVI port
- No
- AC (power) in
- Yes
- Service port type
- USB Type-A
USB 2.0 Type-A ports quantity
- USB 2.0 Type-A ports quantity
- 1
Network
- Smart TV
- No
- Ethernet LAN
- No
- Wi-Fi
- No
- Card reader integrated
- No
Sound emission
- Noise level
- 34 dB
- Noise level (economic mode)
- 25 dB
Technical details
- Product colour
- White
- HDCP
- Yes
- Air filter
- Yes
- Image lag time
- 33.2 ms
Features
- Interactive
- No
- HDCP version
- 1.4
Design
- Product type
- Standard throw projector
- Cable lock slot type
- Kensington
- LED indicators
- Yes
- Cable lock slot
- Yes
Power
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 295 W
- Power consumption (standby)
- 0.5 W
Packaging data
- Package width
- 400 mm
- Package depth
- 337 mm
- Package height
- 168 mm
- Package weight
- 3.8 kg
- Remote control type
- IR
Weight & dimensions
- Weight
- 2.7 kg
- Width
- 309 mm
- Depth
- 234 mm
- Height
- 115 mm
Packaging content
- Remote control included
- Yes
- Warranty card
- Yes
- Quick start guide
- Yes
- Cables included
- AC, VGA
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
