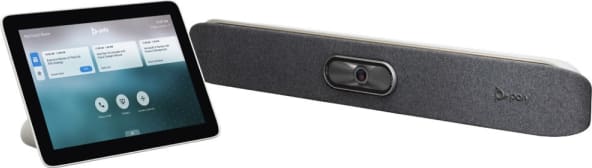

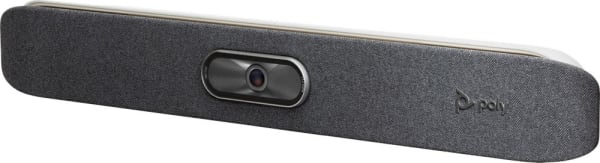

POLY STUDIO X50 4K Video Bar and TC8 Touch Controller (2200-86270-102)

The Poly Studio X50 is a premium 4K videoconferencing solution that is simple to set up and deploy. The Poly Studio X50’s 120 degree field of vision with 4K UHD capture resolution along with 3 in built microphones well as acoustic echo cancellation and background noise suppression makes for a professional setup for environments for up to 10 people.

Share your content wirelessly to the main screen via the Poly X50 as it features support for both Apple Airplay and Miracast. (The Poly X50 and mobile device needed to be connected to the same network.)

Supplied with the Poly TC8 Touch interface. The Intuitive touch interface lets you access video conferencing solutions with ease. Its sleek design features an 8″ high-resolution touch display to make control options clear and accessible. Launch, join and share in an instant. The TC8 is pre-paired out of the box. Power over ethernet means only one cable is required for connection to the X50.

Product Benefits

• Get any medium sized conference room up and running in minutes, with a simple setup process and all-in-one design.
• Make it easy for anyone, even guests, to share content wirelessly from any personal device—with no special apps or tools needed.
• Powerful audio pickup and incredible noise blocking technology allows every word to be heard without distractions.
• On-board support for cloud video platforms like Zoom, GoToMeeting and 8×8 means no room PC or Mac is required.
• Dual monitor output for greater flexibility in set up and use.

Don’t just have a meeting. Experience a boardroom-quality performance. The Poly Studio X50 is an all-in-one video bar for medium sized conference rooms. It’s radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. And wireless content sharing lets users collaborate from their devices without the need for cables or external devices.

After initial configuration of the X30 for use with your preferred VC cloud based software (zoom, blue jeans, teams etc) and general X30 settings, It’s a matter of turning on and tapping the TC8 controller to use and join meetings

Simple Set-up, No Drama
Get your medium sized conference room up and running in moments. No PC or Mac is required, with cloud service platform support built-in. The compact, lightweight design easily fits on top or underneath display in rooms of up to 10 participants.

Production Quality Performance
Feel more connected to others on the call thanks to production-quality camera framing. Block out audio distractions with NoiseBlockAI, powered by machine learning. And easily share content over wired or wireless connections. Dual monitor support provides greater flexibilty in deployment and set up.

Do Meetings Your Way
Poly Studio X features native support for Video-as-a-Service (VaaS) platforms, including Zoom and Microsoft Teams, without the need for a PC. Plus, it has H.323 and SIP support for easy connection to any standards-based video solutions or VaaS gateway. So you can do meetings however you prefer

Video standards and protocols
H.264 AVC, H.264 High Profile, H.265

Video input
1x HDMI

Video output
2x HDMI
Touch display compatible

People video resolution
4K, 30 fps (TX & RX) from 2048 Kbps*
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps

Content video resolution
Input
UHD (3840 x 2160)
HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p)
XGA (1024 x 768)
SVGA (800 x 600)
Output
UHD (3840 x 2160)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)

Content frame rate
5–60 fps (up to 4K resolution at 15 fps in call)
Content sharing
Content app
Apple Airplay
Miracast
HDMI input
Whiteboarding

Camera
5x digital zoom
120° FOV
UHD 2160p (4K) capture resolution
Automatic people framing
Audio input
3x MEMS microphones, plus 2x 2nd order microphones
1x HDMI
1x 3.5 mm line-in*
* Supported in future software update

Audio output
Stereo speakers
1x 3.5 mm line-out*
*Supported in future software update

Other interfaces
2x USB-A (3.0)
1x USB-C
Bluetooth 5.0
WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency

Audio standards and protocols
22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A

Network
IPv4
1x 10/100/1G Ethernet
Auto-MDIX
H.323 and/or SIP up to 6 Mbps running Poly Video App
Lost Packet Recovery (LPR) technology
Dynamic bandwidth allocation
Reconfigurable MTU size
Web proxy support—Basic, Digest, and NTLM
Simple Certificate Enrollment Protocol (SCEP)

Security
Media encryption (H.323, SIP): AES-128, AES-256
H.235.6 support
Authenticated access to admin menus, web interface, and API
Local account password policy configuration
Security profiles
Local account and login port lockout
Secure defaults
Remote logging with support for TLS
Active directory external authentication

Options
VESA and wall mount kit
Stand
TC8

Interoperability
Support for native 3rd party applications, including Zoom Rooms for Android and Microsoft Teams Collaboration Bar
All cloud service provider through Poly Video App Mode

Electrical
Auto sensing power supply
Typical operating voltage/power
37 VA @ 120 V @ 60 Hz
37 VA @ 230 V @ 50/60 Hz
Typical BTU/h: 65

Environmental specification
Operating temperature: 0 to 40 °C
Operating humidity (non-condensing):15 to 80%
Non-operating temperature: -40 to 70 °C
Non-operating humidity (non-condensing): 5 to 95%
Maximum altitude: 16,000 ft

Physical characteristics
30 W x 4 H x 4 D (Inches) 762 W x 102 H x 102 D (MM)
5.6 lbs/2.54 kg

Warranty
One-year return to factory parts and labor

Package contents
Poly Studio X50
Poly TC8 Touch Controller
Cable bundle
Monitor clamp
Privacy cover
