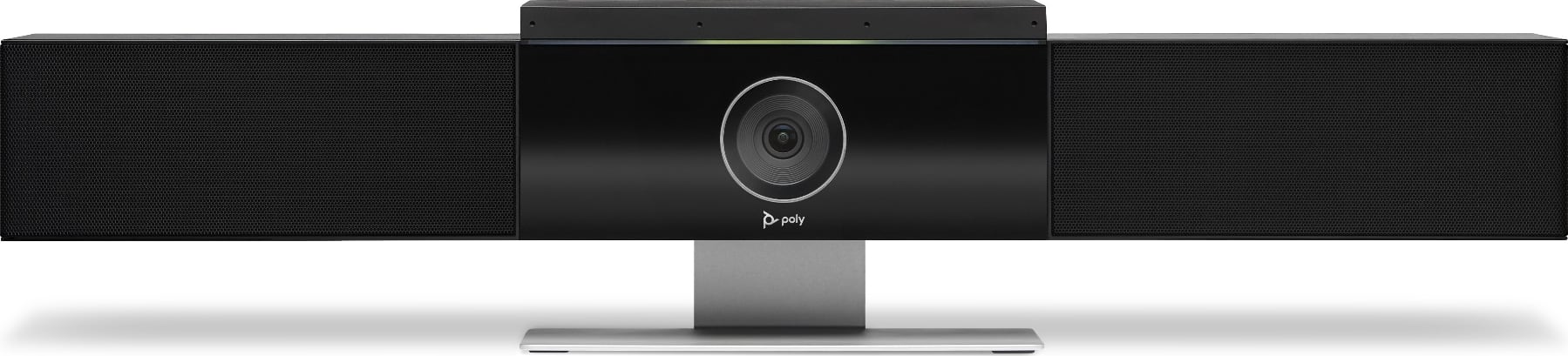

POLY STUDIO – Video Bar (7200-85830-102)

Whether you want to make a persuasive point or a lasting connection, you need technology that lets you interact naturally. So put the days of frustrating video-conferencing experiences behind you. Now you can see and hear everyone clearly, and converse naturally, with Poly Studio. Simple USB connectivity gets up and running fast, keeps the technology in the background and you in the foreground, and provides a business-class solution to everybody working in a huddle room. It’s time to raise the bar for video conferencing—it’s time for Poly Studio.

Hear beat-in-class sound
You’ve never heard a USB video bar sound this good. It’s the only one with patented NoiseBlock technology to intelligently tune out distracting sounds that interrupt meetings. And outside conversations stay out of your calls with Acoustic Fence—it captures just the voices within a defined space.

See natural video
With group framing and automatic speaker tracking, the connection feels personal. And it’s built right in, no drivers or software is needed on the PC. Everybody on the video call can see the important details—right down to body language and facial expressions.

Manage and deploy with ease
Cloud-based management tools let IT push software updates and make settings changes without ever leaving their desk. Centralized management and high-scale deployments help IT eliminate “sneakernet.” Plus it works with nearly any video platform—so you can be confident this is a future-proof solution.

• 105 mm x 700 mm x 70 mm = 4.2” x 27.3” x 2.8” (HxWxD) without stand
• 156 mm x 700 mm x 70 mm = 6.2” x 27.3” x 2.8” (HxWxD) with stand

• 5 lbs 2.6 oz (2342 g) without stand
• 6 lbs 4.7 oz (2856 g) with stand

• 183 mm x 40 mm x 19 mm = 7.2” x 1.6” x .75” (HxWxD)

• Windows 7, 8.1, 10
• MacOS 10.12, 10.13, 10.14

• UAC 1.0 Audio
• UVC 1.1/1.5 Video
• HID 1.11

• 120-degree FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing & speaker tracking
• 5x zoom / EPTZ
• 2 camera presets

• Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression
• Poly NoiseBlock technology
• Poly Acoustic Fence technology
• Mute/unmute controls

• 6-element beamforming microphone array
• 12 ft pickup range
• 120 Hz–16 kHz frequency response

• 100 Hz–20 KHz frequency response
• Output = 90 dB @ 0.5m

• 1x USB 3.0 Type-C port (with 2.0 compatibility)
• Power connector
• Optional external microphone
• 3.5 mm stereo Audio In
• Kensington security lock
• 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible
• Bluetooth® 4.2

• Certified for Microsoft Teams and Skype for Business
• Zoom Certified
• LogMeIn GoToMeeting®
• BlueJeans Network
• Google Hangouts communication platform
• Amazon Chime
• Cisco Webex
• VidyoDesktop
• Polycom RealPresence Desktop

• Poly Studio
• Remote control with 2 AAA batteries
• Power adapter
• 5 m USB 2.0 cable (Type-C to Type-A)
• Wall mount kit
• Setup sheet
