Philips 241B7QUBHEB/00

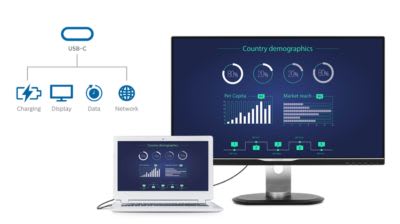

USB-C enables laptop power charging directly from a monitor
This Philips display features a built-in USB type-C docking station with power delivery. With intelligent and flexible power management, you can power charge your compatible* laptop directly. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor’s docking station. You can watch high-resolution video and transfer data at super-speed, while powering up and re-charging your notebook at the same time. (*For USB-C power and charging function, your Notebook/device must support USB-C standard Power Delivery specifications. Please check with your Notebook user manual or manufacturer for more details.)

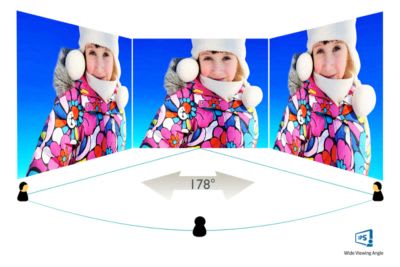

IPS technology for full colours and wide viewing angles
IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

LowBlue Mode for easy-on-the-eyes productivity
Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.




Securely sign in with pop-up webcam with Windows Hello
Phillips’ innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.



PowerSensor saves up to 80% energy costs
PowerSensor is a built-in ‘people sensor’ that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life



Built-in USB docking simplifies your connections
Philips USB-docking monitors deliver universal port replication for simple, clutter-free notebook connection. Securely connect to networks and transmit data, video and audio from a laptop using just a single USB cable. What’s more, you can dock with a USB Type-C port for additional power charging. With docking monitors with built-in DisplayLink Technology, users can benefit from forwards and backwards USB compatibility with virtually any recent notebook. USB docking can boost business productivity and reduce costs.

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.

Technical Specifications

• Picture/Display

  LCD panel type

  IPS technology

  Backlight type

  W-LED system

  Panel Size

  23.8 inch/60.5 cm

  Display Screen Coating

  Anti-Glare, 3H, Haze 25%

  Effective viewing area

  527 (H) x 296.5 (V)

  Aspect ratio

  16:9

  Maximum resolution

  1920 x 1080 @ 75 Hz*

  Pixel Density

  93 PPI

  Response time (typical)

  5 ms (Grey to Grey)*

  Brightness

  250

   cd/m²

  Contrast ratio (typical)

  1000:1

  SmartContrast

  50,000,000:1

  Pixel pitch

  0.275 x 0.275 mm

  Viewing angle

  • 178º (H)/178º (V)
  • @ C/R > 10

  Flicker-free

  Yes

  Picture enhancement

  SmartImage

  Display colours

  16.7 M

  Colour gamut (typical)

  NTSC 85%*, sRGB 102%*

  Scanning Frequency

  30–85 kHz (H) / 48–75 Hz (V)

  sRGB

  Yes

  LowBlue Mode

  Yes

  EasyRead

  Yes

• Connectivity

  Signal Input

  DisplayPort 1.2 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 2 x 1 (DP Alt mode, power delivery up to 65 W)

  Signal Output

  DisplayPort out (DP, USB-C)*

  USB:

  USB-C 3.2 x 1 Gen 2 (upstream), USB 3.2 x 4 (downstream, w/ 1 fast charging)

  RJ45

  Ethernet LAN up to 1G*

  Sync Input

  • Separate Sync
  • Sync on Green

  Audio (In/Out)

  Audio out

  DC power out

  x 1 (support 19 V, max 65 W)*

• USB docking

  USB-C to USB-C

  Video (DP Alt mode), Data, Power delivery

  USB-C to USB-A

  Video, Data

  USB-C power delivery

  USB PD version 3.0

  USB-C max. power delivery

  Up to 65 watts (5 V/3 A, 9 V/3 A, 10 V/3 A,12 V/3 A, 15 V/3 A, 20 V/3.25 A)

• Convenience

  Built-in Speakers

  2 W x 2

  Built-in webcam

  2.0 megapixel FHD camera with microphone and LED indicator (for Windows 10 Hello)

  User convenience

  • SmartImage
  • Input
  • PowerSensor
  • Menu
  • Power On/Off

  Control software

  SmartControl

  OSD Languages

  • Brazil Portuguese
  • Czech
  • Dutch
  • English
  • Finnish
  • French
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Polish
  • Portuguese
  • Russian
  • Simplified Chinese
  • Spanish
  • Swedish
  • Traditional Chinese
  • Turkish
  • Ukrainian

  Other convenience

  • Kensington lock
  • VESA mount (100 x 100 mm)

  Plug and Play Compatibility

  • DDC/CI
  • Mac OS X
  • sRGB
  • Windows 10 / 8.1 / 8 / 7

• Stand

  Height adjustment

  150

   mm

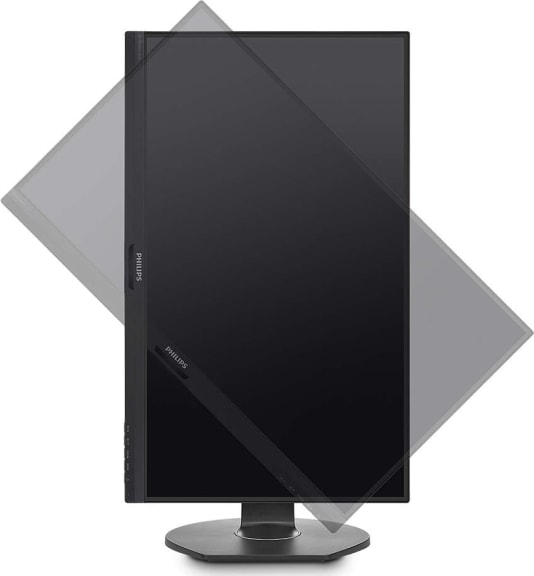

  Pivot

  90 degree

  Swivel

  -175/175

   degree

  Tilt

  -5/30

   degree

• Power

  ECO mode

  13.7 W (typ.)

  On mode

  16.7 W (typ.) (EnergyStar 7.0 test method)

  Standby mode

  < 0.5 W (typ.)

  Off mode

  Zero watts with Zero switch

  Energy Label Class

  A

  Power LED indicator

  • Operation – White
  • Standby mode – White (flashing)

  Power supply

  • Built-in
  • 100–240 VAC, 50–60 Hz

• Dimensions

  Product with stand (max height)

  541 x 527 x 257

   mm

  Product without stand (mm)

  541 x 332 x 57

   mm

  Packaging in mm (W x H x D)

  603 x 492 x 224

   mm

• Weight

  Product with stand (kg)

  6.30

   kg

  Product without stand (kg)

  3.87

   kg

  Product with packaging (kg)

  8.99

   kg

• Operating conditions

  Temperature range (operation)

  0°C to 40°C

   °C

  Temperature range (storage)

  -20°C to 60°C

   °C

  Relative humidity

  20%-80

   %

  Altitude

  Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

  MTBF (demonstrated)

  70,000 hrs (excluded backlight)

• Sustainability

  Environmental and energy

  • PowerSensor
  • EnergyStar 7.0
  • EPEAT*
  • TCO Certified Edge
  • RoHS
  • WEEE

  Recyclable packaging material

  100

   %

  Post-consumer recycled plastic

  85%

  Specific Substances

  • PVC/BFR free housing
  • Mercury free
  • Lead free

• Compliance and standards

  Regulatory Approvals

  • CE Mark
  • FCC Class B
  • SEMKO
  • cETLus
  • CU-EAC
  • TUV Ergo
  • TUV/GS
  • EPA
  • UKRAINIAN
  • ICES-003
  • CB
  • KUCAS
  • SASO

• Cabinet

  Front bezel

  Black

  Rear cover

  Black

  Foot

  Black

  Finish

  Texture

• What’s in the box?

  Monitor with stand

  Yes

  Cables

  HDMI cable, DP cable, USB-C to C/A cable, DC out cable, Power cable
