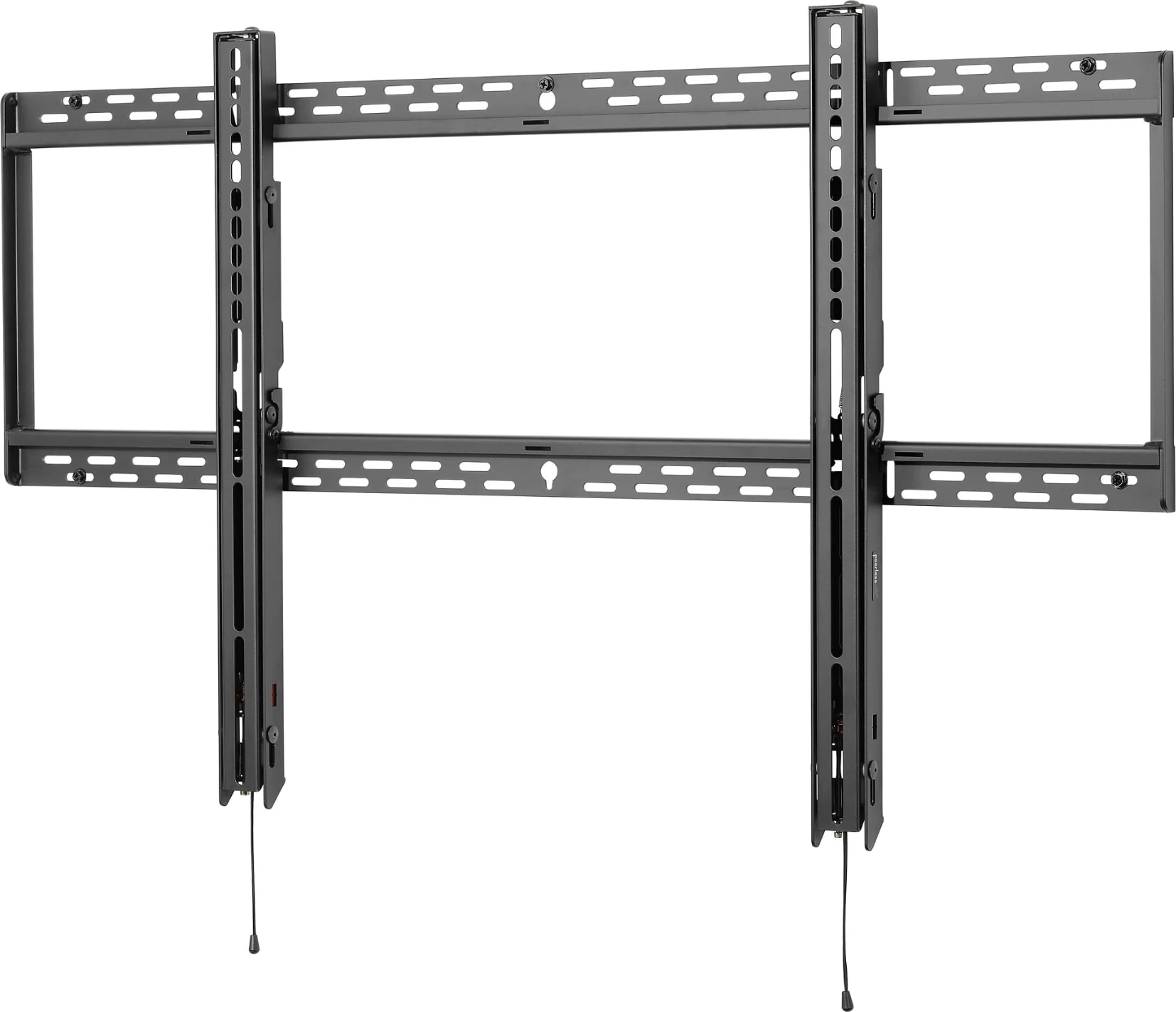

Peerless – Wall Bracket for 60″ – 98″ Screens (SF680P)

SmartMount Universal Flat Wall Mount for 60″ to 98″ displays
Peerless-AV’s SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Features
Universal mount fits displays with mounting patterns up to 1100 x 650mm (43.29″ W x 25.59″ H)
Low-profile design holds display only 1.73″ (44mm) from the wall
Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
Laterial display adjustment up to 19.25″ (489mm)
1″ of post-installation vertical adjustment provides flexibility in the installation
Includes fastener pack with all necessary mounting and display attachment hardware (including M10)

Product Specifications
Minimum to Maximum Screen Size – 60″ to 98″
Mounting Pattern – 1100 x 650mm (43.29 x 25.59″)
Weight Capacity- 350lb (158.0kg)
Color – Black
Finish – Powder Coat
Security Features – Non-Security Hardware
Distance from Wall – 1.73″ (46mm)
Product Dimensions – 45.75 x 27.48 x 1.73″ (1162 x 698 x 44mm)
