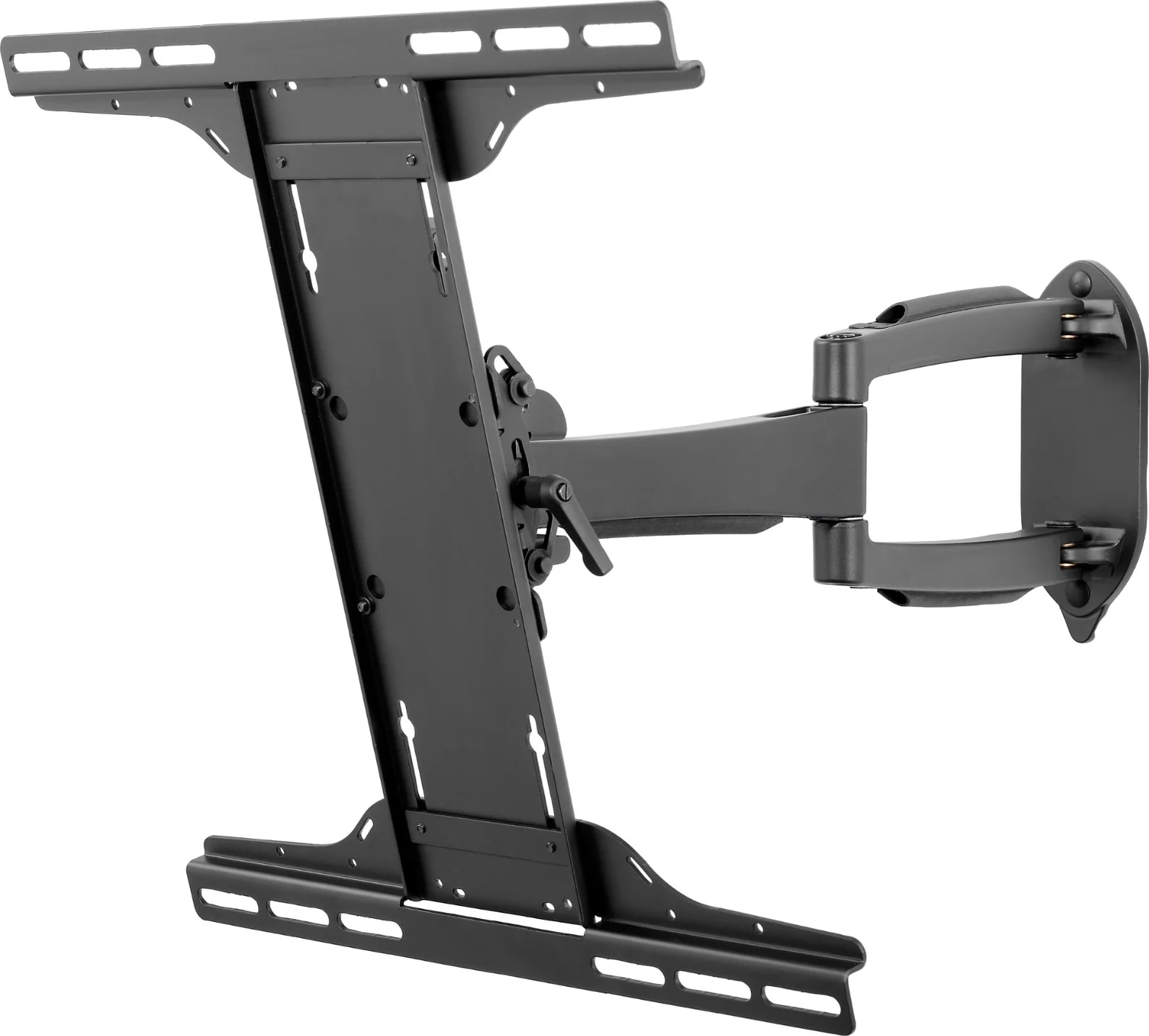

Peerless – SmartMount Articulating Wall Arm (SA746PU)

SmartMount® Articulating Wall Arm for 32″ to 50″ Displays

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation levelling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22″ (564mm) or fully-retract it to just 3.46″ (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Features
Design is UL listed and tested to four times stated load capacity
Includes all necessary wall and display attachment hardware
Landscape or portrait mounting options increases display versatility
Universal mount fits displays with mounting patterns 200 x 100 to 400 x 400mm
Quick and easy, Hook-and-Hang™ one-person installation
The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display
Easy levelling ±5° after display installation
±90° of pivot allows for perfect display positioning
Retracts to hold display just 3.46″ (88mm) from the wall

Product Specification
Minimum to Maximum Screen Size – 32″ to 50″
Mounting Pattern – 432 x 408mm (17.00 x 16.06″)
Weight Capacity – 80lb (36kg)
Color – Black
Finish – High Gloss
Security Features – Non-Security Hardware
Distance from Wall – 4.34 – 20.92″ (110 – 531mm)
Roll – +5 / -5
Swivel Yaw – +90 / -90
Tilt – +15 / -5
Product Dimensions – 18.75 x 17.00 x 4.34 – 20.92″ (476 x 432 x 110 – 531mm)
