Panasonic

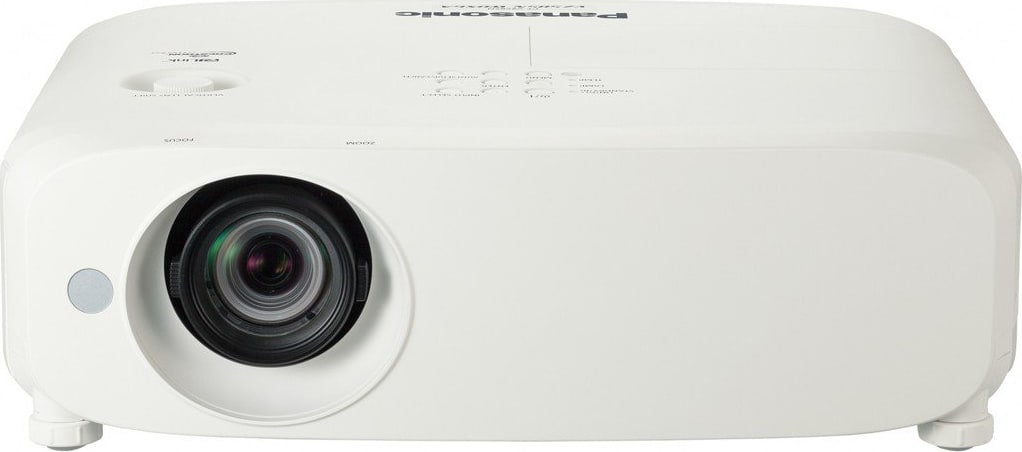

Panasonic PT-VW545NEJ

Call for Availability
FREE UK Mainland Delivery

SKU: p4857

The Panasonic PT-VW545N is a versatile WXGA resolution projector, ideal for board or training rooms with its 5500 lumens brightness and 1.6x optical zoom.

  • 5500 lumens brightness
  • LCD aspect ratio
  • WXGA resolution
  • 3 Years Return To Base warranty
  • Lamp Warranty: 6 months or 500 hours

£1,190.00 Excl. VAT

Projectorpoint Opinion

The Panasonic PT-VW545N is a bright 5500 ansi lumens, native widescreen, WXGA resolution (1280 x 800 pixels, 16:10 aspect ratio) with a 1.09-1.76:1 lens and 1.6x optical zoom making it a great choice as a first time or replacement projector especially for board or training rooms.

Manufacturer Overview

On the bright side – up to 5500lm brightness
With high brightness ranging from 5000lm to 5500lm, the PT-VZ580 series of portable projectors is at least 200lm brighter than the VZ570 series. You can expect deep blacks, pure highlights, crisp graphics and easy-to-read text.

Picture perfect images
A winning formula for imaging brilliance is complemented by a high 16000:1 contrast ratio. The PT-VZ580 series features resolutions from XGA to WUXGA, bringing native Full HD video to big screens in small spaces. This gives pin-sharp, detailed images for an immersive viewing experience. With the colour adjustment and correction function you can easily correct for slight variations in the colour reproduction range when using multiple projection, particularly in side-by-side configuration.

More efficient parts for easy maintenance
In the PT-VZ580 Series we have increased the air filter replacement cycle to a maximum of 7,000 hours and it can be washed twice: reducing the total cost of ownership. The high efficiency lamp also has a replacement cycle of 7,000 hours in ECO2 mode, reducing the need for maintenance over long periods of use, lowering maintenance costs and reducing environmental impact.

Simple wireless connection with Plug and Share
Thanks to Plug and Share*, it’s easier than ever to project wirelessly with the PT-VZ580 series. Plug and Share gives you the option connecting to the projector with nothing more than a USB stick. Simply plug a USB stick into the projector and the configuration files are automatically copied to it – there’s no need to key in the network information. Then plug the USB into your computer and run Plug and Share straight from your USB stick – without having to install on your computer.
*Plug and Share is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N
Share your screen from your mobile with Miracast
Several projectors in the PT-VZ580* Series come with Advanced Miracast for an improved wireless connection. Your Android device forms a direct Wi-Fi connection with the projector so you can discover it and connect to share your screen. With Advanced Miracast it takes a third less time to connect and the connectivity ratio is increased by 40% (compared to the VZ57N series). The projectors are the first series to support Moderator Mode and the Cut-In function, making them perfect for collaborating in meetings.
*Miracast is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N

Flexible installation
Adding to the range of options for connecting wirelessly, wired connection is also more flexible for this series. You can connect with a single DIGITAL LINK* cable with extended reach (up to 150m), giving you more possibilities when installing the projectors. The 1.6x zoom lens gives you the flexibility to project from a wide range of distances, making it easier to install the unit even when space is limited.
*DIGITAL LINK is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N

Easy to see, even in bright rooms
Daylight View Basic technology makes it possible to see images clearly, even in brightly-lit rooms. A built-in sensor measures the light level in the room and the technology optimises the halftone colour and brightness levels accordingly.

Quieter than writing with a pencil
In quiet mode, the PT-VZ580 series make less noise than someone writing with a pencil. The quiet design keeps noise levels down to 29 dB*, so the sound of the cooling fan is hardly noticeable and the audience won’t be distracted during meetings and presentations.
* 37dB in Normal and 35dB in ECO1 mode

Technical Specifications


Brightness
5500 Lumens
Light Source
Lamp
Contrast Ratio
16000 :1

Lens

Lens type

Throw Ratio – Minimum
1.09
Throw Ratio – Maximum
1.76

Warranty

Projector
3 years Return To Base
Light Source
6 months or 500 hours

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Panasonic PT-VW545NEJ”

Your email address will not be published. Required fields are marked *


Need help or advice? Talk to experts!

If you need help making your choice, simply call our experts on our freephone.
Call Now:  0800 073 0833

Projection Calculator

OR
Throw Distance:
450 cm
Diagonal:
181 - 382 cm
Width:
158 - 333 cm
Height:
89 - 187 cm

Where can I position the projector?

To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
