Panasonic

Panasonic PT-RZ890BEJ

Call for Availability
FREE UK Mainland Delivery

SKU: p5423

This product is now discontinued. An equivalent replacement would be the Panasonic PT-REZ80BEJ

The Panasonic PT-RZ990BEJ is a high brightness, native WUXGA resolution installation projector with extensive connectivity and optional lenses.

  • 8800 Lumens Brightness (Laser / DLP)
  • WUXGA Resolution – 16:10 Aspect Ratio
  • Optional Lenses available
  • 3 years Return To Base warranty
  • 23 KG
Call for Price & Availability

We offer credit terms to education, health, government bodies and PLC companies.

Email official purchase orders to info@projectorpoint.co.uk

Do you need this projector installing as well?

Speak to our sales team to book a site survey

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 10m HDMI cable (18Gbps)

View Cable
Icon of a Projector Mount

£50 off any Mount

View All Mounts
Icon of a Projector Lens

£200 off any Projector Lens

View All Lenses

Projectorpoint Opinion

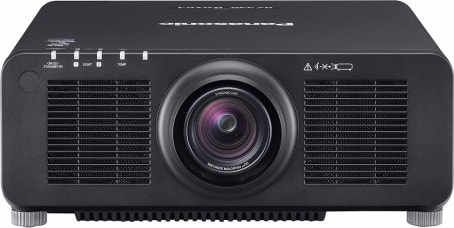

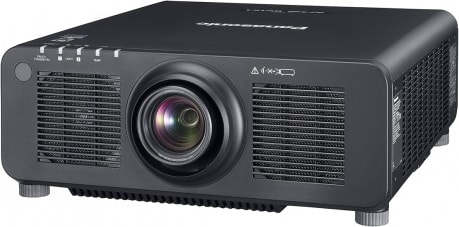

The Panasonic PT-RZ890BEJ is a high brightness, native WUXGA resolution (1920 x 1200 pixels, 16:10 aspect ratio) installation projector featuring extensive connectivity inputs, laser light source and numerous optional lenses.

This models ships with ET-DLE170 lens as standard

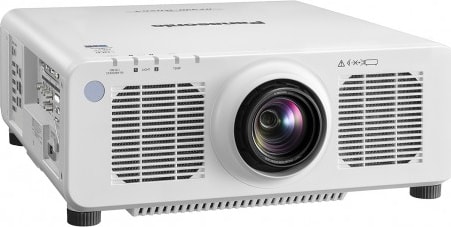

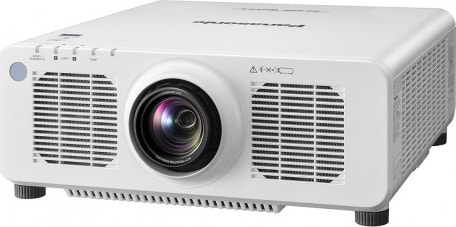

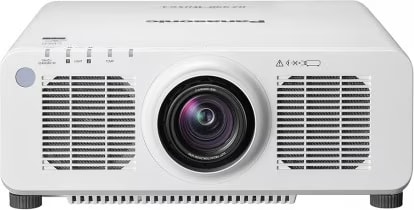

Also available in white. If you require a white chassis please contact us to order.

Optional Lens Aspect Ratio 16:10
ET-DLE030 / ET-DLE035 Lens 0.38:1
ET-DLE055 Lens 0.785:1
ET-DLE020 Lens 0.280 – 0.299:1
ET-DLE060 Lens 0.60 – 0.801:1
ET-DLE085 Lens 0.782 – 0.977:1
ET-DLE105 Lens 0.978 – 1.32:1
ET-DLE150 Lens 1.30 – 1.89:1
ET-DLE170* Lens 1.71 – 2.41:1
ET-DLE250 Lens 2.27 – 3.62:1
ET-DLE350 Lens 3.58 – 5.45:1
ET-DLE450 Lens 5.36 – 8.58:1

Manufacturer Overview

Power to impress with accurate colours

Panasonic Quartet Colour Harmoniser Realises High Brightness and Accurate Colours
Expect saturated colour and finely expressed detail from next-generation 1-Chip DLP technology without sacrificing brightness thanks to Quartet Colour Harmoniser, an original colour-wheel technology with optimised optical design that precisely modulates light-source output according to colour requirements.

Excellent Uniformity for Multi-Screen Projection
1-Chip DLP technology allows for great uniformity between adjoining screens. Minimal variation between DMDs allows images from the PT-RZ990 Series to be easily blended for a more immersive viewing experience.

Easy to install and integrate

Supports 4K/60p Signal Input
PT-RZ990 Series supports uncompressed 4K/60p signal input* via HDMI® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.
(* 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection.)

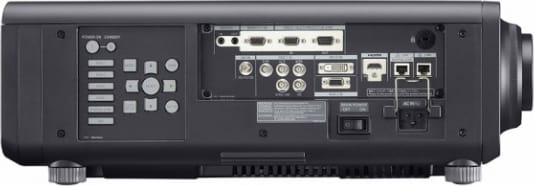

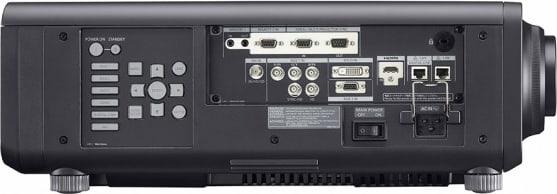

Separate LAN and DIGITAL LINK Terminals
Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron, AMX, and Extron applications to be assigned to a dedicated LAN connection, freeing the DIGITAL LINK pipeline for video over cable runs of up to 150 m (492 ft).

Optional Lenses Offer New Creative Possibilities
Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world’s first UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

Smart Projector Control
Smart Projector Control is a mobile app enabling remote control of select projectors. Install on your iPhone or Android™ phone or tablet, connect to your compatible projectors via Wi-Fi (LAN), and control functions including lens adjustment, input switching, status monitoring, and more. The app also features a handy auto-focus function that uses the smartphone’s camera to achieve precise projector focus.

Geometric Adjustment with Free Grid Correction
PT-RZ990 benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly create a distortion-free image.

Reliable Even in Harsh Conditions

Filter less Projector Structure with Airtight Optical Block
Heat-pipe-based filter less cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry’s toughest guidelines, you’re assured of a linear brightness ramp, superior colour uniformity, and maintenance-free projection for 20,000 hours*1. These benefits are welcome when the projector is installed in a difficult-to-access location.
(*1 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % varies depending on environment and usage conditions)

Dual Lasers for Failsafe Reliability
Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and colour-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Backup Input Setting Protects Picture Display
Projectors can be configured to switch instantaneously to a backup input-signal should the primary signal be disrupted. This layer of insurance is invaluable in control rooms, security and surveillance applications, and for live events where image projection must not be interrupted.

Other features

Contrast Sync and Shutter Sync Function
Contrast Sync, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Multi-Unit Brightness and Colour Control
Sensors detect colour and brightness apparent on screen. Projectors automatically calibrate for a uniform multi-screen image, adding a layer of convenience and cost saving for long-term events.

Multi-screen Support System
Optimally adjusts multiple screens with edge blending, colour matching, and digital image enlargement.

Geometry Manager Pro Software and Upgrade Kits
Download free Geometry Manager Pro software to expand geometric and multi-screen setup and calibration capabilities via PC. The suite includes two upgrade kits that can be optionally unlocked with paid key codes. ET-UK20 adds uniformity correction and extensive creative masking capabilities. ET-CUK10 features Auto Screen Adjustment which enables simultaneous setup (including curved-screen correction) of multiple projectors for multi-screen applications using a compatible camera. This streamlines edge-blending, colour-matching, black-level, stacking, and brightness uniformity calibration.

Data-cloning Function
Data-cloning function allows various settings and configuration data*1 to be copied from a master projector to up to 99 slave projectors*2. Alternatively, the data can be cloned to slave projectors via LAN. This feature simplifies and expedites the setup process for multi-unit projection applications.
(*1 Excludes passwords, projector name/ID, and network settings. *2 Data-cloning function supported on identical projectors only.)

Additional Features
– Laser safety guaranteed
– DICOM Simulation Mode
– Built-in Geometric Adjustment
– Art-Net DMX, Crestron Connected, and PJLink
– Rec. 709 Mode for HDTV Projection
-Fade In and Fade Out function

Technical Specifications


Brightness
8800 Lumens
Resolution
WUXGA
Light Source
Laser
Contrast Ratio
10000 :1

Lens

Lens type
Interchangeable
Throw Ratio – Minimum

Throw Ratio – Maximum

Warranty

Projector
3 years Return To Base
Light Source


Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Panasonic PT-RZ890BEJ”

Your email address will not be published. Required fields are marked *


Need help or advice? Talk to experts!

If you need help making your choice, simply call our experts on our freephone.
Call Now:  0800 073 0833

Projection Calculator

OR
Throw Distance:
450 cm
Diagonal:
181 - 382 cm
Width:
158 - 333 cm
Height:
89 - 187 cm

Where can I position the projector?

To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
