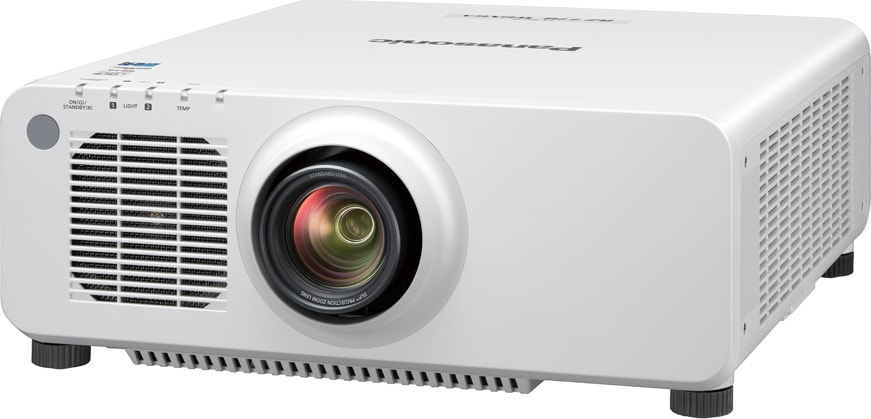

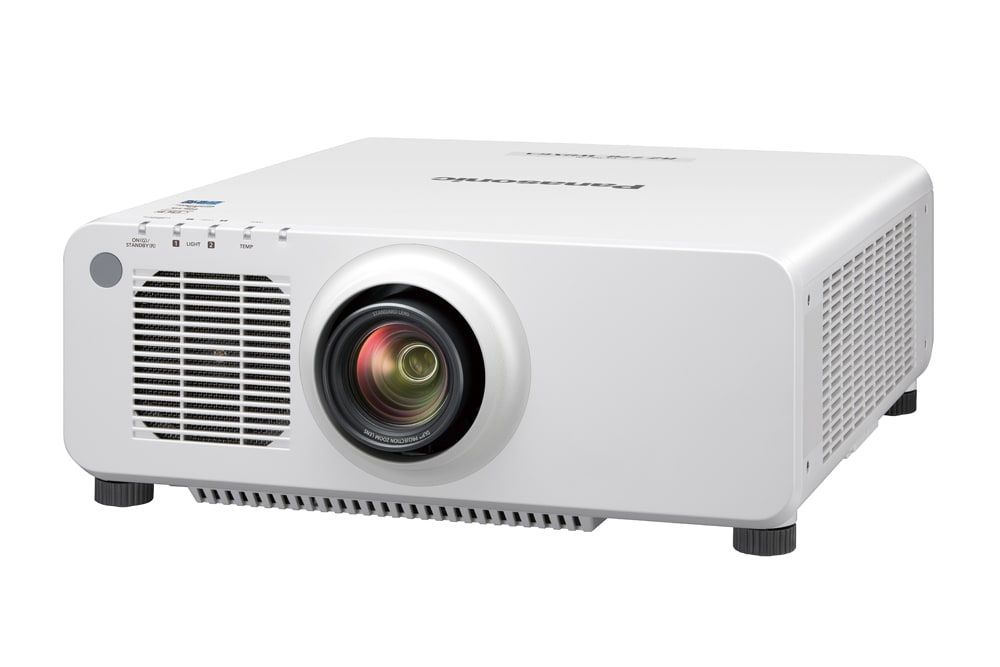

Panasonic PT-RZ790WEJ
Panasonic PT-RZ790WEJ: High brightness, WUXGA resolution, extensive connectivity. Bright, color-rich images. Easy installation. SOLID SHINE Laser reliability.
- 7000 Lumens Brightness (Laser / DLP)
- WUXGA Resolution – 16:10 Aspect Ratio
- Optional Lenses available
- 3 years Return To Base warranty
- 23.2 KG
- Project pricing available
£10,100.00 Excl. VAT
Quick Links
Projectorpoint Opinion
The Panasonic PT-RZ790WEJ is a high brightness, native WUXGA resolution (1920 x 1200 pixels, 16:10 aspect ratio) installation projector featuring extensive connectivity inputs, laser light source and numerous optional lenses.
This models ships with ET-DLE170 lens as standard
Also available in black. If you require a black chassis please contact us to order.
Optional Lens Aspect Ratio | 16:10 |
---|---|
ET-DLE030 / ET-DLE035 Lens | 0.38:1 |
ET-DLE055 Lens | 0.785:1 |
ET-DLE020 Lens | 0.280 – 0.299:1 |
ET-DLE060 Lens | 0.60 – 0.801:1 |
ET-DLE085 Lens | 0.782 – 0.977:1 |
ET-DLE105 Lens | 0.978 – 1.32:1 |
ET-DLE150 Lens | 1.30 – 1.89:1 |
ET-DLE170* Lens | 1.71 – 2.41:1 |
ET-DLE250 Lens | 2.27 – 3.62:1 |
ET-DLE350 Lens | 3.58 – 5.45:1 |
ET-DLE450 Lens | 5.36 – 8.58:1 |
Manufacturer Overview
Features
Bright, Colour-Rich Images in Any Environment
The PT-RZ790 Series delivers the brightness, resolution, and colour that designers need to enhance exhibits with bright, bold, and vivid pictures. SOLID SHINE Laser and Quartet Colour Harmonizer enhance colour-depth and white-balance accuracy for arrestingly realistic pictures even in well-lit spaces.
Light, Quiet, Compact Projectors are Easy to Install
Projectors support our 1-Chip DLP lenses and 4K signal input (*3) via HDMI and DIGITAL LINK, adapting to your space with 23.2 kg (*4) body and 36 dB operation in Normal Mode. Smart Projector Control app enhances efficiency with On/Off function, lens adjustment, touchscreen OSD navigation, and projection auto-focusing using your smartphone camera (*5).
Proven SOLID SHINE Laser Reliability
Hermetically sealed DMD block, shielded laser drive, and new filterless cooling system eliminate the hassle of maintenance for 20,000 hours (*6) of continuous projection, while brightness ramp and colour uniformity remain linear. For extra insurance, Backup Input (*7) switches to a failback if primary video is interrupted.
(*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
*3 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI.
*4 Including standard lens.
*5 Projector auto-focus may not be supported on some mobile devices.
*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [ON], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % will vary depending on environment and usage conditions. Parts other than the light source may require replacement before 20,000 hours, and checkup is recommended around this time.
*7 Combination of primary/backup input terminals is fixed. Backup Input function enabled when input signal to primary/backup terminals is the same.)
Technical Specifications
- Number of colours
- 1.073 billion colours
- Projector native resolution
- XGA (1024×768)
- Native aspect ratio
- 4:3
- Screen size compatibility
- 762 – 7620 mm (30 – 300″)
- Projection distance
- 1.1 – 13 m
- Contrast ratio (dynamic)
- 22000:1
- Zoom capability
- Yes
- Vertical scan range
- 23 – 120 Hz
- Horizontal scan range
- 15 – 102 kHz
- Matrix type
- DMD
- Matrix size
- 1.4 cm (0.55″)
- Keystone correction, vertical
- -40 – 40°
- Projection technology
- DLP
- Projector brightness
- 3600 ANSI lumens
- Zoom type
- Manual
Lamps
- Lamps quantity
- 1 lamp(s)
- Lamp power
- 190 W
- Light source type
- Lamp
- Service life of light source
- 4500 h
- Service life of light source (economic mode)
- 15000 h
Lens system
- Focus
- Manual
- Throw ratio
- 1.96 – 2.15:1
- Optical zoom
- 1.1x
Video
- Analog signal format system
- NTSC, PAL, PAL 60, SECAM
- 3D Ready
- Yes
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
- Built-in speaker(s)
- Yes
Number of built-in speakers
- Number of built-in speakers
- 1
- RMS rated power
- 2 W
Ports & interfaces
- HDMI connector type
- Full-size
- HDMI version
- 1.4
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 3
HDMI ports quantity
- HDMI ports quantity
- 1
Composite video in
- Composite video in
- 1
- Serial interface type
- RS-232
RS-232 ports
- RS-232 ports
- 1
- PC Audio out
- Yes
- PC Audio in
- Yes
- DVI port
- No
- AC (power) in
- Yes
Network
- Ethernet LAN
- No
- Wi-Fi
- No
- Card reader integrated
- No
Technical details
- Product colour
- Grey, White
Features
- Certification
- FCC (ICES-003), cTUVus
Design
- Product type
- Standard throw projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Desktop
Power
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 260 W
- Power consumption (standby)
- 0.5 W
Packaging data
- Package width
- 365 mm
- Package depth
- 188 mm
- Package height
- 300 mm
- Package weight
- 6.24 kg
Operational conditions
- Operating altitude
- 0 – 1499 m
Weight & dimensions
- Weight
- 2.2 kg
- Width
- 294 mm
- Depth
- 218 mm
- Height
- 110 mm
Packaging content
- Remote control included
- Yes
- Quick start guide
- Yes
- Cables included
- AC, VGA
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
