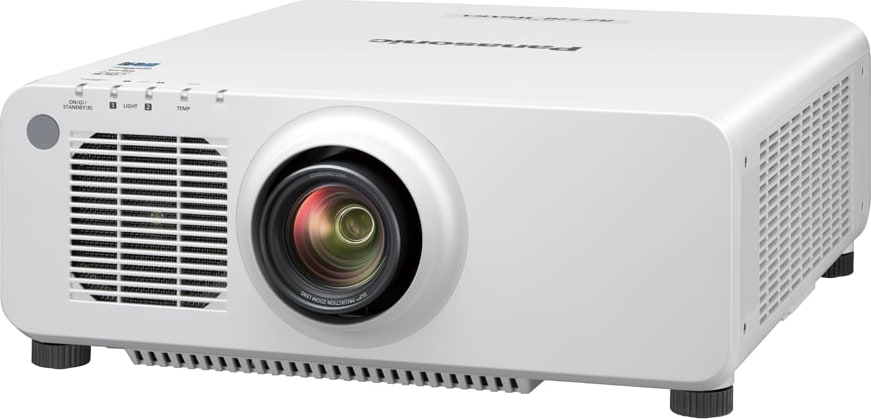

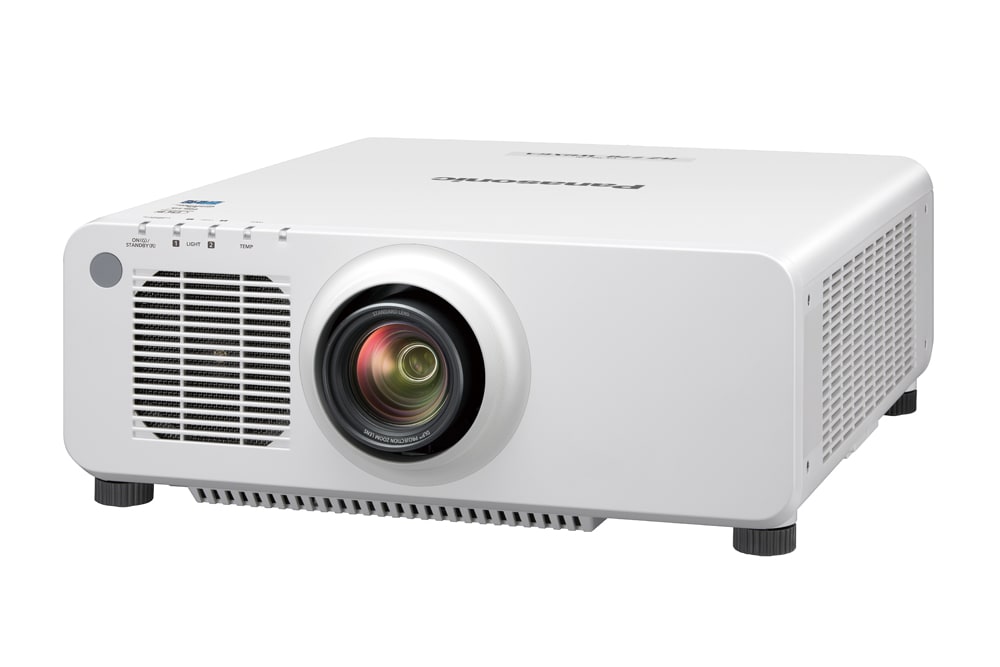

Panasonic PT-RZ690WEJ
The Panasonic PT-RZ690WEJ is a high brightness, native WUXGA resolution installation projector with extensive connectivity and laser light source.
- 6000 Lumens Brightness (Laser / DLP)
- WUXGA Resolution – 16:10 Aspect Ratio
- Optional Lenses available
- 3 years Return To Base warranty
- 23.2 KG
- Ships with ET-DLE170 lens as standard
- Project pricing available
£10,100.00 Excl. VAT
Quick Links
Projectorpoint Opinion
The Panasonic PT-RZ690WEJ is a high brightness, native WUXGA resolution (1920 x 1200 pixels, 16:10 aspect ratio) installation projector featuring extensive connectivity inputs, laser light source and numerous optional lenses.
This models ships with ET-DLE170 lens as standard
Also available in black. If you require a black chassis please contact us to order.
Optional Lens Aspect Ratio | 16:10 |
ET-DLE030 / ET-DLE035 Lens | 0.38:1 |
ET-DLE055 Lens | 0.785:1 |
ET-DLE020 Lens | 0.280 – 0.299:1 |
ET-DLE060 Lens | 0.60 – 0.801:1 |
ET-DLE085 Lens | 0.782 – 0.977:1 |
ET-DLE105 Lens | 0.978 – 1.32:1 |
ET-DLE150 Lens | 1.30 – 1.89:1 |
ET-DLE170* Lens | 1.71 – 2.41:1 |
ET-DLE250 Lens | 2.27 – 3.62:1 |
ET-DLE350 Lens | 3.58 – 5.45:1 |
ET-DLE450 Lens | 5.36 – 8.58:1 |
Manufacturer Overview
Features
Bright, Colour-Rich Images in Any Environment
The PT-RZ790 Series delivers the brightness, resolution, and colour that designers need to enhance exhibits with bright, bold, and vivid pictures. SOLID SHINE Laser and Quartet Colour Harmonizer enhance colour-depth and white-balance accuracy for arrestingly realistic pictures even in well-lit spaces.
Light, Quiet, Compact Projectors are Easy to Install
Projectors support our 1-Chip DLP lenses and 4K signal input (*3) via HDMI and DIGITAL LINK, adapting to your space with 23.2 kg (*4) body and 36 dB operation in Normal Mode. Smart Projector Control app enhances efficiency with On/Off function, lens adjustment, touchscreen OSD navigation, and projection auto-focusing using your smartphone camera (*5).
Proven SOLID SHINE Laser Reliability
Hermetically sealed DMD block, shielded laser drive, and new filterless cooling system eliminate the hassle of maintenance for 20,000 hours (*6) of continuous projection, while brightness ramp and colour uniformity remain linear. For extra insurance, Backup Input (*7) switches to a failback if primary video is interrupted.
(*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
*3 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI.
*4 Including standard lens.
*5 Projector auto-focus may not be supported on some mobile devices.
*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [ON], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % will vary depending on environment and usage conditions. Parts other than the light source may require replacement before 20,000 hours, and checkup is recommended around this time.
*7 Combination of primary/backup input terminals is fixed. Backup Input function enabled when input signal to primary/backup terminals is the same.)
Technical Specifications
- Projector native resolution
- WUXGA (1920×1200)
- Native aspect ratio
- 16:10
- Screen size compatibility
- 1270 – 15240 mm (50 – 600″)
- Contrast ratio (typical)
- 10000:1
- Zoom capability
- Yes
- Matrix size
- 1.7 cm (0.67″)
- Keystone correction, vertical
- -40 – 40°
- Keystone correction, horizontal
- -15 – 15°
- Projection technology
- DLP
- Projector brightness
- 6000 ANSI lumens
- Projection modes
- Ceiling, Front, Rear
Lamps
- Light source type
- Laser
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 24000 h
Lens system
- Focus
- Auto
- Focal length range
- 25.6 – 35.7 mm
- Aperture range (F-F)
- 1.7 – 1.9
- Horizontal lens shift range
- -10 – 30%
- Vertical lens shift range
- -16 – 50%
- Throw ratio
- 1.71–2.41:1
Video
- Full HD
- Yes
Ports & interfaces
- HDBaseT port
- Yes
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 1
HDMI ports quantity
- HDMI ports quantity
- 1
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 2
- Serial interface type
- RS-232C
- DVI port
- Yes
BNC input ports
- BNC input ports
- 6
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Wi-Fi
- No
- Card reader integrated
- No
Sound emission
- Noise level
- 35 dB
Technical details
- Product colour
- White
- HDCP
- Yes
Design
- Product type
- Large venue projector
- Housing material
- Plastic
- Placement
- Ceiling, Floor
Power
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 700 W
Weight & dimensions
- Weight
- 22.9 kg
- Width
- 498 mm
- Depth
- 581 mm
- Height
- 200 mm
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
