Panasonic PT-RZ690BEJ

    • 6000 lumens brightness
    • Laser light source
    • WUXGA resolution
    • 3 Years Return To Base warranty


LINKS:
 OUR REVIEW    CALCULATOR    SPECS

WUXGA (1920 x 1200, 16:10)
6000 lumens
£8,508.00 (£7,090.00+VAT)
SKU
P5364

FREE UK Mainland Delivery



BUNDLE OFFERS (Applied at checkout)


FREE XERXES Premium HDMI Cable – 10m

VIEW THIS CABLE


£50 off Any Mount


SEE MORE


£200 off Any Lens


SEE MORE

review
  • Image Quality
  • Features
  • Connectivity

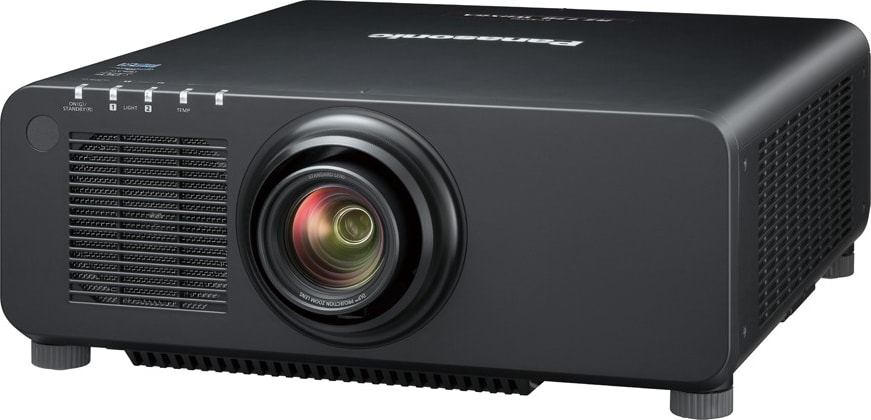

The Panasonic PT-RZ690BEJ is a high brightness, native WUXGA resolution (1920 x 1200 pixels, 16:10 aspect ratio) installation projector featuring extensive connectivity inputs, laser light source and numerous optional lenses.

This models ships with ET-DLE170 lens as standard

Also available in White. If you require a black chassis please contact us to order.

Optional Lens Aspect Ratio16:10
ET-DLE030 / ET-DLE035 Lens0.38:1
ET-DLE055 Lens0.785:1
ET-DLE020 Lens0.280 – 0.299:1
ET-DLE060 Lens0.60 – 0.801:1
ET-DLE085 Lens0.782 – 0.977:1
ET-DLE105 Lens0.978 – 1.32:1
ET-DLE150 Lens1.30 – 1.89:1
ET-DLE170* Lens1.71 – 2.41:1
ET-DLE250 Lens2.27 – 3.62:1
ET-DLE350 Lens3.58 – 5.45:1
ET-DLE450 Lens5.36 – 8.58:1
Write Your Own Review
You're reviewing:Panasonic PT-RZ690BEJ
Your Rating
Screen Size Calculator

To make sure this projector is the right fit for you room

Panasonic logo

Power to impress with accurate colours

Panasonic Quartet Colour Harmoniser Realises High Brightness and Accurate Colours
Expect saturated colour and finely expressed detail from next-generation 1-Chip DLP technology without sacrificing brightness thanks to Quartet Colour Harmoniser, an original colour-wheel technology with optimised optical design that precisely modulates light-source output according to colour requirements.

Excellent Uniformity for Multi-Screen Projection
1-Chip DLP technology allows for great uniformity between adjoining screens. Minimal variation between DMDs allows images from the PT-RZ990 Series to be easily blended for a more immersive viewing experience.

Easy to install and integrate

Supports 4K/60p Signal Input
PT-RZ990 Series supports uncompressed 4K/60p signal input* via HDMI® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.
(* 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.)

Separate LAN and DIGITAL LINK Terminals
Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron, AMX, and Extron applications to be assigned to a dedicated LAN connection, freeing the DIGITAL LINK pipeline for video over cable runs of up to 150 m (492 ft).

Optional Lenses Offer New Creative Possibilities
Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world’s first UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

Smart Projector Control
Smart Projector Control is a mobile app enabling remote control of select projectors. Install on your iPhone or Android™ phone or tablet, connect to your compatible projectors via Wi-Fi (LAN), and control functions including lens adjustment, input switching, status monitoring, and more. The app also features a handy auto-focus function that uses the smartphone’s camera to achieve precise projector focus.

Geometric Adjustment with Free Grid Correction
PT-RZ990 benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly create a distortion-free image.

Reliable Even in Harsh Conditions

Filter less Projector Structure with Airtight Optical Block
Heat-pipe-based filter less cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry’s toughest guidelines, you’re assured of a linear brightness ramp, superior colour uniformity, and maintenance-free projection for 20,000 hours*1. These benefits are welcome when the projector is installed in a difficult-to-access location.
(*1 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % varies depending on environment and usage conditions)

Dual Lasers for Failsafe Reliability
Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and colour-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Backup Input Setting Protects Picture Display
Projectors can be configured to switch instantaneously to a backup input-signal should the primary signal be disrupted. This layer of insurance is invaluable in control rooms, security and surveillance applications, and for live events where image projection must not be interrupted.

Other features

Contrast Sync and Shutter Sync Function
Contrast Sync, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Multi-Unit Brightness and Colour Control
Sensors detect colour and brightness apparent on screen. Projectors automatically calibrate for a uniform multi-screen image, adding a layer of convenience and cost saving for long-term events.

Multi-screen Support System
Optimally adjusts multiple screens with edge blending, colour matching, and digital image enlargement.

Geometry Manager Pro Software and Upgrade Kits
Download free Geometry Manager Pro software to expand geometric and multi-screen setup and calibration capabilities via PC. The suite includes two upgrade kits that can be optionally unlocked with paid key codes. ET-UK20 adds uniformity correction and extensive creative masking capabilities. ET-CUK10 features Auto Screen Adjustment which enables simultaneous setup (including curved-screen correction) of multiple projectors for multi-screen applications using a compatible camera. This streamlines edge-blending, colour-matching, black-level, stacking, and brightness uniformity calibration.

Data-cloning Function
Data-cloning function allows various settings and configuration data*1 to be copied from a master projector to up to 99 slave projectors*2. Alternatively, the data can be cloned to slave projectors via LAN. This feature simplifies and expedites the setup process for multi-unit projection applications.
(*1 Excludes passwords, projector name/ID, and network settings. *2 Data-cloning function supported on identical projectors only.)

Additional Features
- Laser safety guaranteed
- DICOM Simulation Mode
- Built-in Geometric Adjustment
- Art-Net DMX, Crestron Connected, and PJLink
- Rec. 709 Mode for HDTV Projection
-Fade In and Fade Out function


Light Source
Laser
Display Type
DLP (1 Chip)
Resolution
WUXGA
Brightness (Lumens )
6000.000000
Contrast Ratio
10000
Lens Type
Removable
Lens Ratio
1.71 to 2.41
Optical Zoom
Lens Shift Vertical Positive (%)
50
Lens Shift Vertical Negative (%)
16
Lens Shift Horizontal Positive (%)
30
Lens Shift Horizontal Negative (%)
10
Keystone Horizontal Negative (degrees)
15
Keystone Horizontal Positive (degrees)
15
Keystone Vertical Negative (degrees)
40
Keystone Vertical Positive (degrees)
40

Connectivity

HDMI

1

DisplayPort

0

HDBaseT

No

DVI-D

1

VGA in

1

VGA out

1

BNC Video

1

Composite Video

0

Component Video

0

USB for display and control

No

USB Type A for power

No

USB for PC Less Presentation

0

RJ45 For Control/Monitoring

1

RS232 For Control

1

Screen Trigger

No

Physical

Dimensions (W x H x D) in cm

49.8 x 20.0 x 58.1

Weight (Kg)

23.2

Fan Noise (db)

40

Fan Noise in Eco Mode (db)

36

Audio Output (Watts)

Chassis Colour

Black

Lamp Life (Hours)

20000

Lamp Life Eco Mode (Hours)

24000

Warranty

Projector Warranty
3 Years Return To Base
Lamp Warranty

Product References

SKU
P5364 / 19772
