Bright and vivid picture quality : Combining 3-Chip DLP imaging with Panasonic’s original SOLID SHINE Laser technology, the PT-RZ12K Series achieves truly stunning picture quality. Two powerful solid-state laser light sources, a heat-resistant phosphor wheel, and three independent DLP chips for red, green, and blue ensures class-leading brightness, colour accuracy, and contrast.
Accurate Colour Reproduction : The PT-RZ12K Series captures a more accurate Rec. 709-compliant colour space than comparable laser projectors. A blue laser ensures greater precision, while an expanded colour gamut improves white balance accuracy.
Ultra-Durable Laser Optical Engine for Continuous 24-hour Operation :Dual Drive Laser Optical Engine uses two discrete light sources grouping laser diodes into modules. A failsafe laser light source redundancy circuit ensures minimal reduction in brightness and colour uniformity in the event of laser diode failure, making PT-RZ12K Series ideal for mission-critical applications. Further, brightness decreases gradually and in a linear rather than exponential fashion (as is common to lamp-based projectors) over its 20,000-hour maintenance-free service life.
Dustproof for Ultimate Endurance : The PT-RZ12K Series has hermetically sealed laser modules, a long-life Eco Filter, and a new air-intake system to extend life and maintain picture quality in locations with dust contamination. SOLID SHINE Laser products exceed rigorous dust-proofing requirements for operation in environments containing 0.150 mg of dust per cubic meter.
Efficient Cooling System Assures Reliable Operation : The PT-RZ12K Series employs a newly developed direct liquid cooling system for the laser light source that features a redesigned air intake and a solid aluminium heat sink to suppress temperature rises. This allows stable operation in ambient temperatures of up to 50 °C (122 °F)* while reducing operating noise to just 43 dB.
Eco Filter Extends Replacement to 20,000 Hours (environment dependent) :The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It joins with a dust-resistant cabinet to enable long-term use even in punishing conditions. A long maintenance cycle of up to 20,000 hours reduces hassle, and the eco-friendly washable filter*2 can be reused, reducing cost and waste.
Safety Guaranteed :Panasonic laser light is no more harmful to eyesight than a regular lamp-based projector, as a diffusing lens reduces the concentration of beam energy. Accidental direct exposure to will not result in damage to eyesight.
Original Panasonic Technology Reduces Motion Blur :Together with a unique high-speed Real Motion Processor chip, Panasonic has refined the PT-RZ12K Series’ optical engine to enhance focus performance for a better sense of resolution, contrast, and fluidity. Real Motion Processor creates supplemental frames and interpolates for a fast 120 Hz frame-rate, resulting in incredibly smooth and realistic reproduction of motion. Further, images of up to 120 Hz can be displayed with Dual-link 3G-SDI, DVI-D, and HDMI simultaneous inputs.

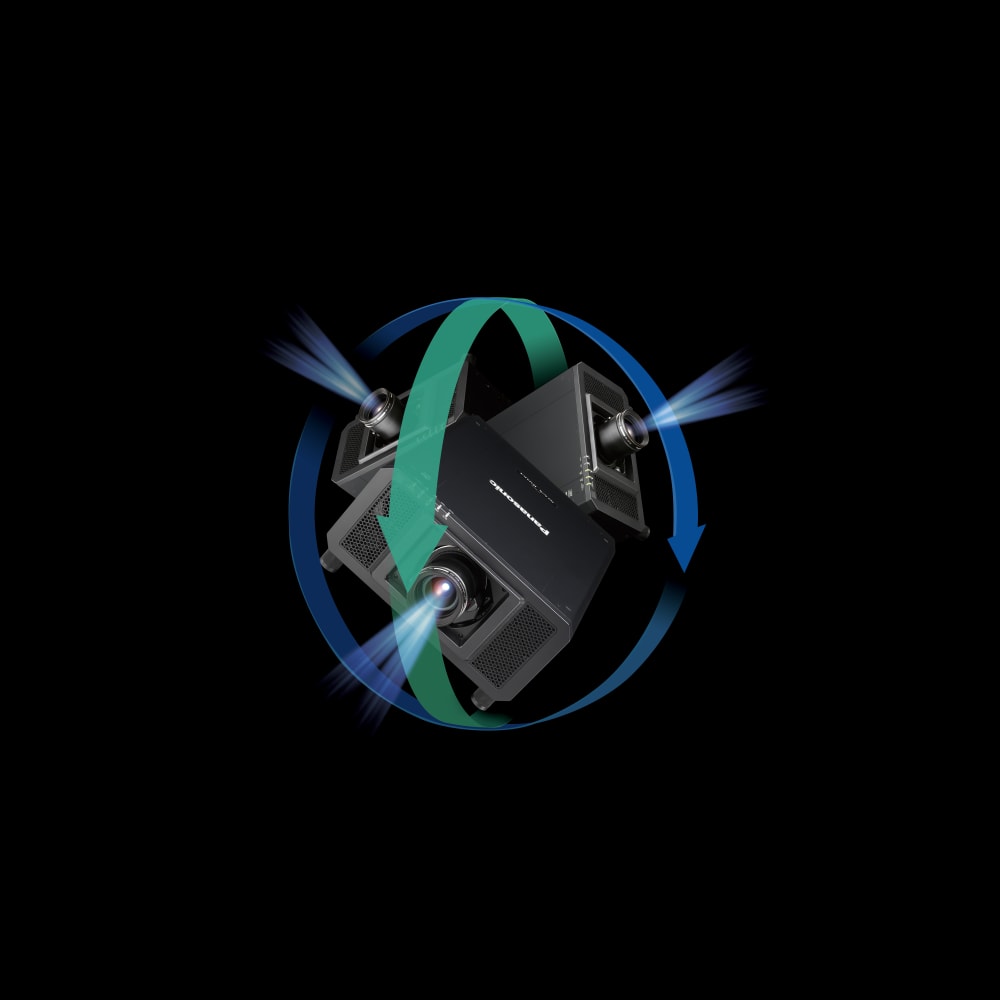

Flexible Setup and Smooth Operation :Unlike conventional lamp-based projectors, the PT-RZ12K Series’ SOLID SHINE Laser system allows free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion.
Single-Cable DIGITAL LINK Connection :DIGITAL LINK supports transmission of uncompressed HD video and control commands through a single cable (CAT 5e or higher STP cable) for distances of up to 150 m (492 ft)with the optional ET-YFB200G. Add an optional DIGITAL LINK Switcher or Digital Interface Box to further simplify installation complexity in large venues while reducing cost and improving reliability at the same time.
Geometric Adjustment for Specially Shaped Screens :This function adjusts the image for projection onto spherical, cylindrical, and other specially shaped screens. Adjustments can be easily made using only the remote control, with no external equipment needed. 4-Corner Adjustment and Keep Aspect Off functions also simplify fine adjustment.
