NEC P603X

Wide zoom ratio, cost effective 8,000 hr lamp in eco and a rock solid NEC Warranty

    • 6000 lumens brightness
    • XGA resolution
    • 3 Years warranty


LINKS:
 OUR REVIEW    CALCULATOR    SPECS

Wide zoom ratio, cost effective 8,000 hr lamp in eco and a rock solid NEC Warranty
1024 x 768 (XGA)
6000 lumens
£1,030.80 incl. VAT (£859.00 ex. VAT)
SKU
P4825

FREE UK Mainland Delivery

BUNDLE OFFERS (Applied at checkout)


FREE XERXES Premium HDMI Cable – 10m

VIEW THIS CABLE


£20 off Any Screen


VIEW SCREENS


£20 off Any Mount


VIEW MOUNTS

review
  • Image Quality
  • Features
  • Connectivity

In Detail;

The NEC P603X features 6000 lumens, XGA resolution (1024 x 768 pixels / 4:3 aspect ratio) 6000 lumens and is particularly suited to large sized training or meeting rooms.

Featuring a strong 1.7x optical zoom / 1.3-2.2:1 lens ratio, the P603X is immensely flexible in where it can be positioned in relation to the distance between projector and screen making it a great projector choice if replacing an old projector.

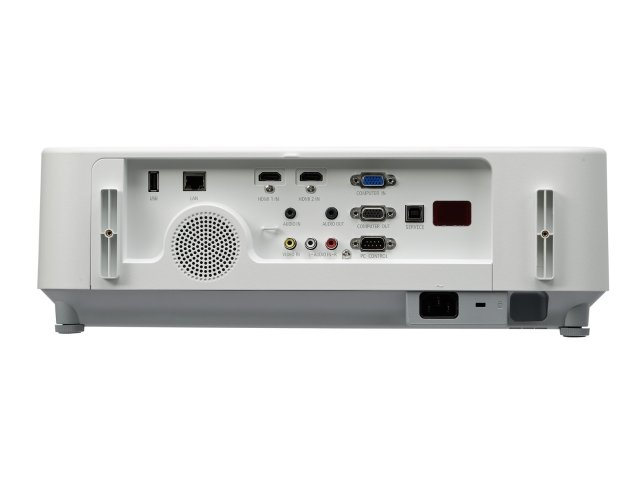

Extensive connectivity inputs including 1 x VGA, 2 x HDMI as well as a USB input for PC less presentations. The RJ45 input allows you to connect the NEC P603X to your network and either display content to the projector (requires free NEC image express utility lite software download from NEC website to be installed on source computer/s) or monitor the projector for vital usage statistics, remotely control the projector or set up schedules for on/off periods.

The optional wireless dongle allows you to send content wirelessly from your computer to the projector (NEC image express utility lite software on source computer must be used in conjunction with the wireless usb dongle)

Write Your Own Review
You're reviewing:NEC P603X
Your Rating

Screen Size Calculator

For recommendations for choosing your screen size please see our Screen size advice page.

Enter the size of the screen you wish to have
  • Screen Width cm
  • or
  • Screen Diagonal cm
Throw distance
NEC P603X throw distance range: 80-1350cm
Enter the distance between projector lens and screen
  • Throw distance cm
Width # cm Height # cm Diagonal # cm
Screen Size Calculator

To make sure this projector is the right fit for you room

NEC logo

Brighten up your lectures and meetings

The NEC P603X brings brightness of up to 6,000 ANSI lumen to your meeting and learning spaces. Enjoy smooth operation over five years (at 8 hours operation a day, 200 days a year) with low maintenance, long lamp life and the NEC patented LCD panel dust protection. The NEC P603X is the perfect replacement device for preceding models because it offers the same mounting options and with its wide zoom range, it is easy to adjust the projection to the existing screen. LCD technology delivers natural colours with a high contrast whilst the wide horizontal and vertical lens shift offers broad flexibility in installation. With its low power consumption, the NEC P603X offers a low total cost of ownership (TCO) and helps you to reduce your carbon footprint.

For more efficient and collaborative meetings and lectures, add NEC’s MultiPresenter option to share content from up to 16 devices! No additional power source is needed as the stick is powered via the USB slot.

Benefits
- Affordable Large Screen projection – ideal for larger corporate or education venues and auditoriums.
- Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
- High brightness – for best performance in bright ambient light
- Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet -Administrator 2 software tool.
- Minimized cost of ownership – due to long lamp life and filter exchange intervals.
- Peace of Mind – with future-proof connectivity.
- Cost effective replacement – of existing NEC P model installations to achieve better imaging for lectures and presentations without wall-mount adjustment.


Projection Technology
LCD
Resolution
XGA
Brightness (Lumens )
6000.000000
Contrast Ratio
20000
Lens Ratio
1.30 to 2.20
Optical Zoom
1.70
Lens Shift Vertical Positive (%)
0
Lens Shift Vertical Negative (%)
0
Lens Shift Horizontal Positive (%)
0.15
Lens Shift Horizontal Negative (%)
0.15
Keystone Horizontal Negative (degrees)
20
Keystone Horizontal Positive (degrees)
20
Keystone Vertical Negative (degrees)
30
Keystone Vertical Positive (degrees)
30

Connectivity

HDMI

2

DisplayPort

0

HDBaseT

No

DVI-D

VGA in

1

VGA out

1

BNC Video

0

Composite Video

1

Component Video

0

USB for display and control

No

USB Type A for power

No

USB for PC Less Presentation

1

RJ45 For Control/Monitoring

1

RS232 For Control

1

Screen Trigger

No

Physical

Dimensions (W x H x D) in cm

47.8 x 23.3 x 39.0

Weight (Kg)

4.7

Fan Noise (db)

37

Fan Noise in Eco Mode (db)

34

Audio Output (Watts)

20

Chassis Colour

White

Lamp Life (Hours)

4000

Lamp Life Eco Mode (Hours)

8000

Warranty

Projector Warranty
3 Years
Lamp Warranty
6 Months or 1000 cumulative hours
