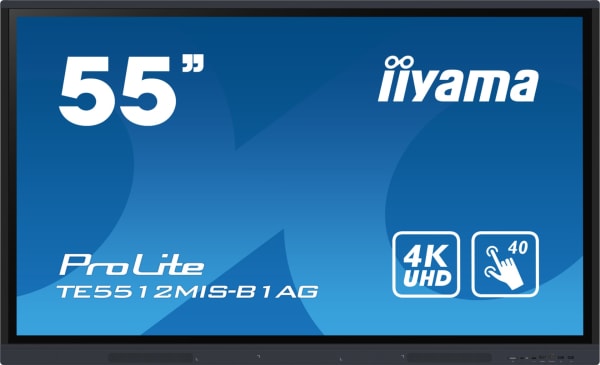

iiyama Prolite TE5512MIS-B1AG
This product is now discontinued. Please contact us for details of a replacement product
55″ interactive 4K UHD touchscreen with 400cd/m2 brightness. ideal for collaborative work
- 400 Candela Brightness
- 55″ diagonal size
- 4K UHD Resolution – 16:9 Aspect Ratio
- 3 Year On Site warranty
- 26.1 KG
- PureTouch-IR for smooth and fast annotation
- iiWare 10 with Note, Browser, Cloud Drive and the option to sideload relevant apps
- Project pricing available
WishlistIn Wishlist
We offer credit terms to education, health, government bodies and PLC companies.
Email official purchase orders to info@projectorpoint.co.uk
Manufacturer Overview
55″ Interactive 4K UHD Touchscreen featuring a 4K interface with User Profiles
Collaboration for education and enterprise made simple. The TE5512MIS-B1AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.
This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual function Touch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.
With a 4K UHD resolution (3840×2160) and 400cd/m2 brightness this 55” IPS LCD screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.
You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE5512MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), iiyama Share and EShare app.
PURETOUCH-IR
PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.
IIWARE
iiWare 10 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.
IIYAMA SHARE
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.
IIYAMA DMS
This software provides organisations a suitable and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitise the campus/office environment and makes campus/office management more convenient.
SECURITY
Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.
Technical Specifications
Display
- Panel type
- IPS
- Display number of colours
- 1.073 billion colours
- Number of simultaneous touchpoints
- 40
- LED backlighting type
- Direct-LED
- Touchscreen
- Yes
- Active display area (W x H)
- 1210 x 680 mm
- Display technology
- LED
- Display diagonal
- 139.7 cm (55″)
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 400 cd/m²
- HD type
- 4K Ultra HD
- Response time
- 8 ms
- Contrast ratio (typical)
- 1200:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.315 x 0.315 mm
- Display diagonal (metric)
- 138.8 cm
- Panel life
- 5000 h
- Native aspect ratio
- 16:9
- Horizontal scan range
- 30 – 135 kHz
Number of displays
- Number of displays
- 1
- Touchscreen technology
- Infrared
- Surface hardness
- 7H
- USB connector type
- USB Type-C
Remote (IR) input
- Remote (IR) input
- 1
- USB port
- Yes
HDMI version
- HDMI version
- 2
- RS-232C
- Yes
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
HDMI ports quantity
- HDMI ports quantity
- 4
- Ethernet LAN data rates
- 1000 Mbit/s
VGA (D-Sub) input ports
- VGA (D-Sub) input ports
- 1
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 2
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
- USB ports quantity
- 6
HDMI input ports quantity
- HDMI input ports quantity
- 3
HDMI output ports quantity
- HDMI output ports quantity
- 1
Number of built-in speakers
- Number of built-in speakers
- 2
- RMS rated power
- 32 W
- Built-in speaker(s)
- Yes
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Orientation
- Horizontal
- Bezel width (top)
- 1.9 cm
- Bezel width (side)
- 1.9 cm
- Bezel width (bottom)
- 4.6 cm
- Product colour
- Black
- Panel mounting interface
- 400 x 200 mm
- VESA mounting
- Yes
- Positioning accuracy
- 1.5 mm
- Screen shape
- Flat
Performance
- Purpose
- Commercial
- Operating hours (hours/days)
- 16/7
- Mean time between failures (MTBF)
- 50000 h
Number of OSD languages
- HDCP
- Yes
- Plug and Play
- Yes
- HDCP version
- 2.2
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
Power
- Power consumption (off)
- 0.5 W
- Power consumption (typical)
- 105 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
Computer system
- Computer system
- Yes
- Processor cores
- 4
- Operating system installed
- Android 11
- Internal memory
- 32 GB
- Internal storage capacity
- 4 GB
- Built-in processor
- Yes
- On-board graphics card model
- ARM Mali-G52
Weight & dimensions
- Display width
- 1271 mm
- Display depth
- 87 mm
- Display height
- 774 mm
- Display weight
- 26.1 kg
Packaging data
- Package width
- 1401 mm
- Package depth
- 220 mm
- Package height
- 859 mm
- Package weight
- 34.5 kg
- Batteries included
- Yes
- Remote control included
- Yes
- Cables included
- AC, HDMI, USB
- Stylus pen
- Yes
Number of stylus pens
- Number of stylus pens
- 4
- Power adapter included
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 – 60 °C
Technical details
- Power supply type
- Internal
OPS slot
- OPS slot
- 1
- Base colour
- Black
- Base material
- Metal
Other features
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version
- Bluetooth version
- 2
- Bluetooth
- Yes
Audio input
- Audio input
- 1
- Bluetooth Low Energy (BLE)
- Yes
