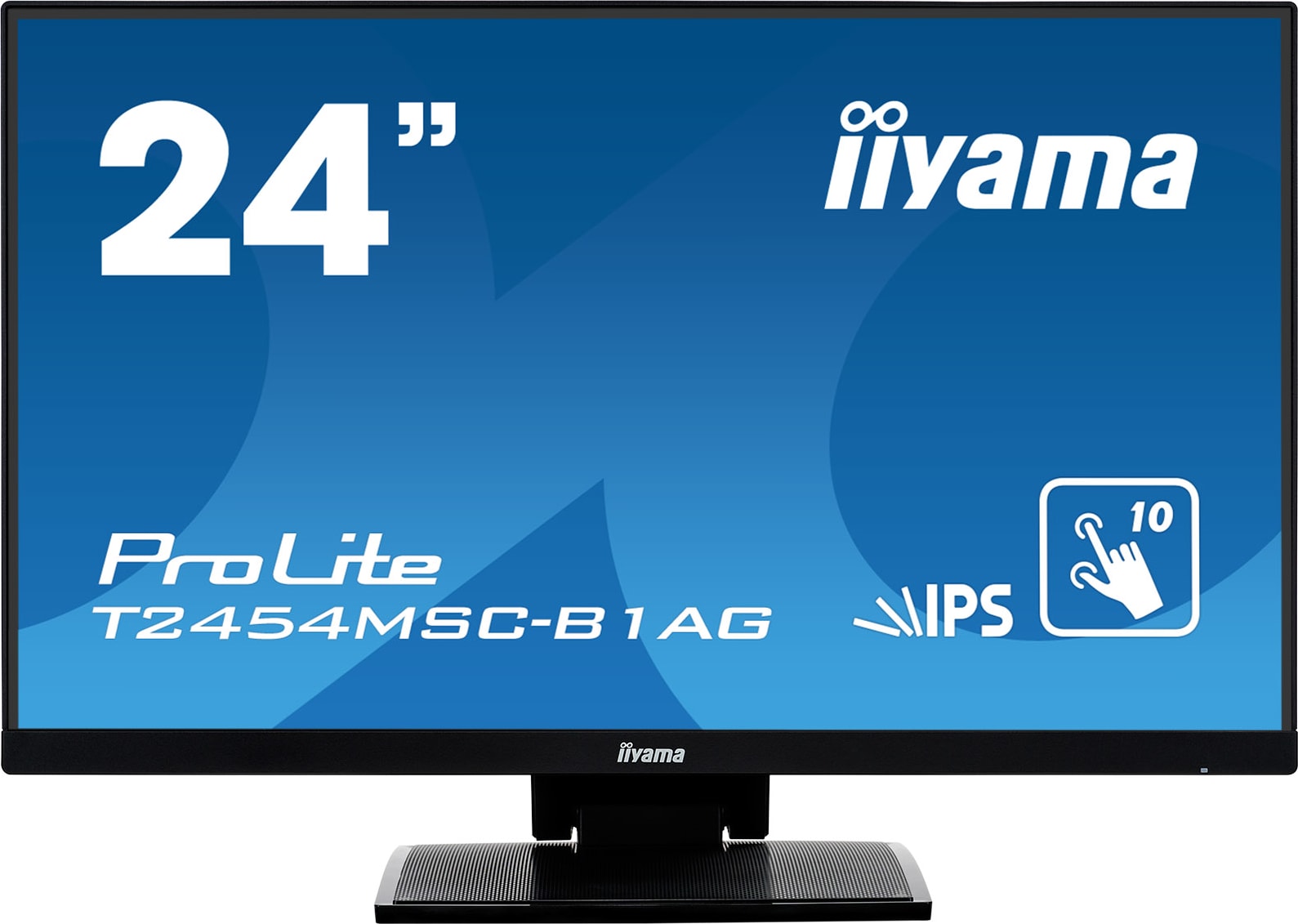

iiyama Prolite T2454MSC-B1AG
This product is now discontinued. Please contact us for details of a replacement product
The iiyama Prolite T2454MSC-B1AG offers a 24″ Full HD IPS display with 10-point touch technology and anti-glare coating, perfect for interactive use.
- 250 Candela Brightness
- 24″ diagonal size
- 1080p Resolution – 16:9 Aspect Ratio
- Project pricing available
WishlistIn Wishlist
We offer credit terms to education, health, government bodies and PLC companies.
Email official purchase orders to info@projectorpoint.co.uk
Manufacturer Overview
24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Technical Specifications
Display
- HDCP
- Yes
- Screen shape
- Flat
- Display number of colours
- 16.78 million colours
- Native aspect ratio
- 16:9
- HD type
- Full HD
- Display technology
- LED
- Contrast ratio (dynamic)
- 5000000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.274 x 0.274 mm
- Horizontal scan range
- 30 – 80 kHz
- Vertical scan range
- 56 – 75 Hz
- Aspect ratio
- 16:9
- Supported graphics resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
- Display resolution
- 1920 x 1080 pixels
- Response time
- 4 ms
- Display diagonal
- 60.5 cm (23.8″)
- Contrast ratio (typical)
- 1000:1
- Touchscreen type
- Multi-user
- Touchscreen
- Yes
- Number of simultaneous touchpoints
- 10
- Panel type
- IPS
- Display diagonal (metric)
- 60.5 cm
- Touch technology
- Multi-touch
- Touchscreen technology
- Projected capacitive system
- LED backlight
- Yes
- Display brightness
- 250 cd/m²
Audio
- Built-in speaker(s)
- Yes
- RMS rated power
- 4 W
Performance
- Megapixel (approx.)
- 2.1 MP
- Mean time between failures (MTBF)
- 30000 h
- Built-in microphone
- No
- Built-in camera
- No
- AMD FreeSync
- No
- NVIDIA G-SYNC
- No
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- OmniTapps Multitouch compatibility
- No
Management features
- Plug and Play
- Yes
Design
- Certification
- CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
- Product colour
- Black
- International Protection (IP) code
- IPX1
Number of upstream ports
- Number of upstream ports
- 1
USB Type-A downstream ports quantity
- USB Type-A downstream ports quantity
- 1
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 1
HDMI ports quantity
- HDMI ports quantity
- 1
- Audio input
- 3.5mm
- HDMI
- Yes
- USB Touch port
- Yes
Technical details
- Height (without stand)
- 322.5 mm
- Depth (without stand)
- 46.5 mm
- Width (without stand)
- 540.5 mm
- Cable lock slot
- Yes
- Placement supported
- Horizontal/Vertical
- Display viewable area (HxV)
- 527.04 x 296.46 mm
- Power supply type
- AC
- Weight (with stand)
- 5.5 kg
Ergonomics
- Wall mountable
- Yes
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm
- Tilt angle range
- -5 – 90°
- Height adjustment
- 7 cm
- Height adjustment
- Yes
- Cable lock slot type
- Kensington
- Tilt adjustment
- Yes
Power
- AC input voltage
- 100-240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 24 W
- Energy efficiency scale
- A to G
Energy efficiency class (SDR)
- Energy efficiency class (SDR)
- F
- Energy consumption (SDR) per 1000 hours
- 20 kWh
Operational conditions
- Storage temperature (T-T)
- -20 – 60 °C
Packaging content
- Quick start guide
- Yes
- Cables included
- AC, HDMI, USB, VGA
Weight & dimensions
- Width (with stand)
- 540.5 mm
- Depth (with stand)
- 128 mm
- Height (with stand)
- 388 mm
Other features
- Dimensions (W x D x H) with stand
- 540.5 x 128 x 388 mm
- Full HD
- Yes
