iiyama Prolite TF6539UHSC-B1AG

In Stock

SKU: F945

  • 65″ diagonal size
  • 3 Year On Site warranty

£2,911.00 Excl. VAT

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 5m HDMI cable (18Gbps)

View Cable
Icon of a Display Mount

£30 off any Mount

View All Display Mounts

Manufacturer Overview

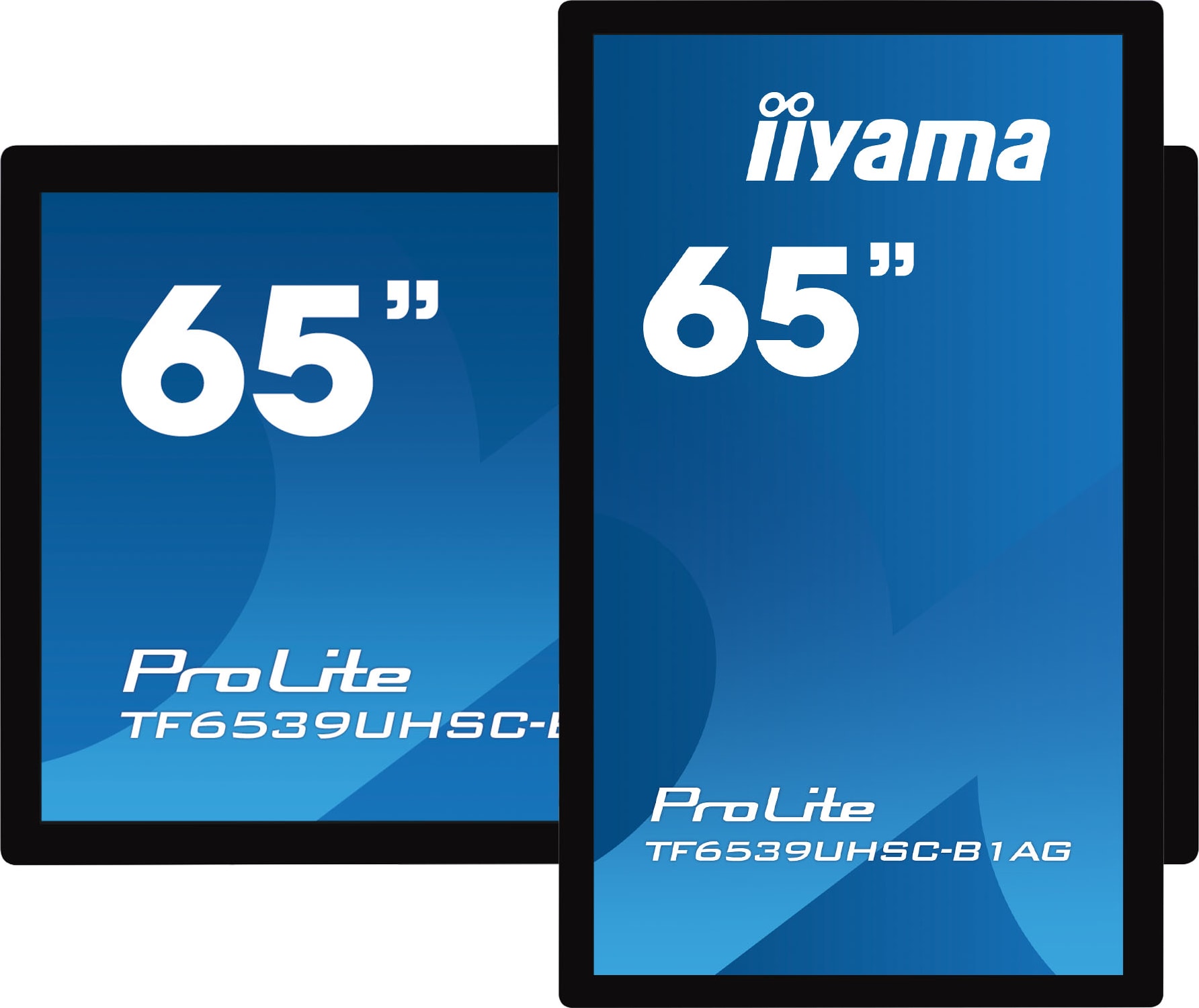

PROLITE TF6539UHSC-B1AG
65″ Open Frame PCAP interactive large format display with 50pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use.
The 4K UHD (3840×2160) Open Frame TF6539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF6539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7
24/7 displays are designed for a continuous operation.

Technical Specifications

Display

LED backlight
Yes
Panel type
IPS
Display number of colours
16.78 million colours
Number of simultaneous touchpoints
50
Touchscreen
Yes

Display technology
LCD
Display diagonal
165.1 cm (65″)
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1100:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°

Ports & interfaces

HDMI version
1.4/2.0

DisplayPorts quantity

DisplayPorts quantity
1

HDMI ports quantity

HDMI ports quantity
2

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports
1

Number of built-in speakers

Number of built-in speakers
2
Built-in speaker(s)
Yes

Design

Product design
Interactive flat panel
Product colour
Black
Panel mounting interface
600 x 400 mm
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
VESA mounting
Yes

Performance

Purpose
Commercial
Mean time between failures (MTBF)
50000 h
HDCP
Yes

Power

Power consumption (off)
0.5 W
Power consumption (typical)
175 W
Power consumption (standby)
0.5 W
AC input voltage
100 – 240 V
AC input frequency
50 – 60 Hz
Energy efficiency scale
A to G

Weight & dimensions

Width
1503.5 mm
Depth
67 mm
Height
880.5 mm
Weight
56 kg

Packaging data

Package width
1670 mm
Package depth
310 mm
Package height
1020 mm
Package weight
65 kg
Quick start guide
Yes
Cables included
AC, DisplayPort, HDMI, USB

Operational conditions

Storage temperature (T-T)
-20 – 60 °C

Technical details

DisplayPort version
1.2
