iiyama Prolite TF5539UHSC-B1AG
This product is now discontinued. Please contact us for details of a replacement product
Open Frame PCAP interactive display with 15pt touch and IPS panel for colour accuracy. Touch-through-glass function.
- 500 Candela Brightness
- 55″ diagonal size
- 4K UHD Resolution – 16:9 Aspect Ratio
- 41 KG
- Project pricing available
WishlistIn Wishlist Quick Links
Projectorpoint Opinion

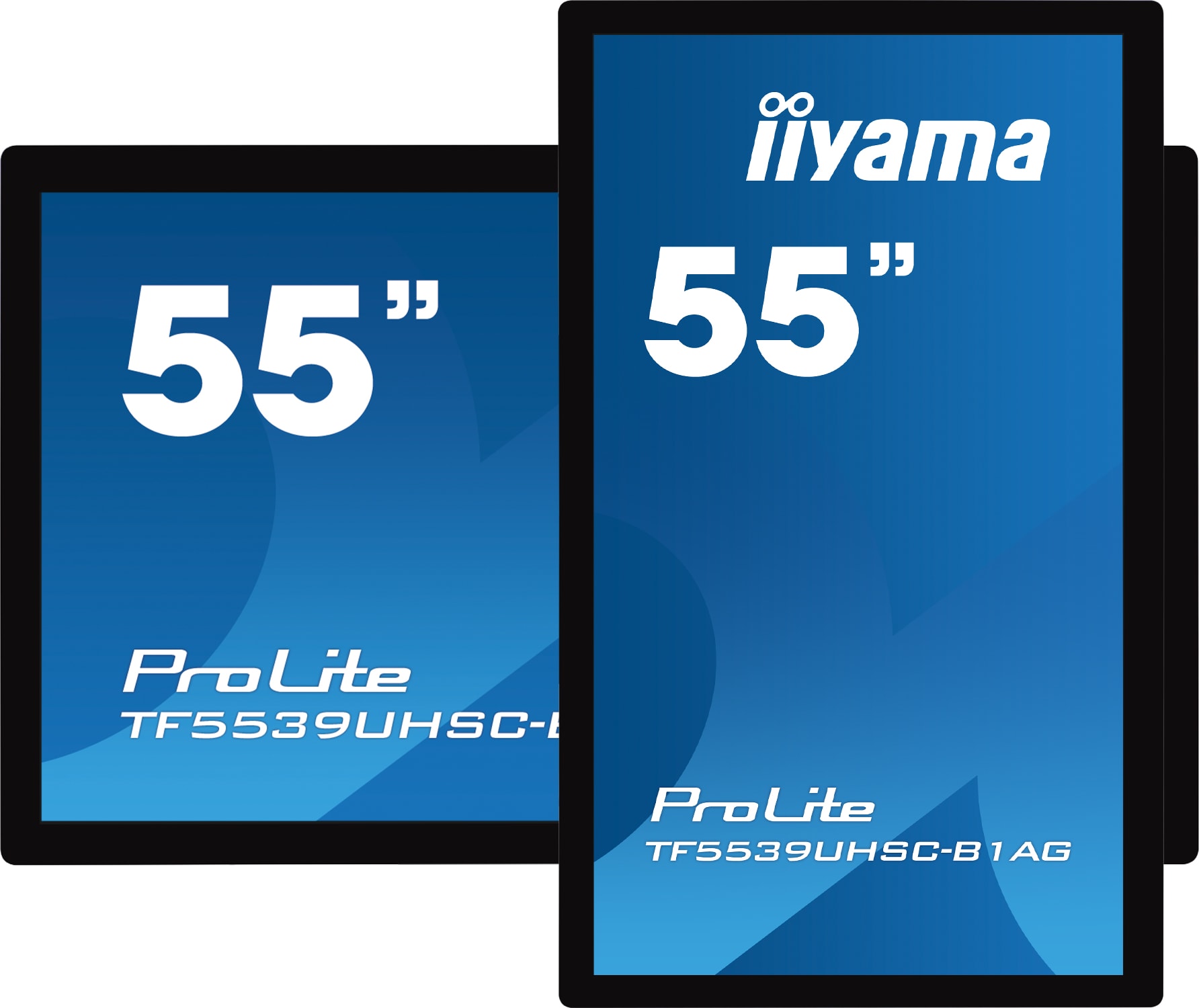

The iiyama PROLITE TF5539UHSC-B1AG is a 55″ Open Frame PCAP interactive large format display that offers a 4K UHD resolution of 3840×2160.
Featuring IPS panel technology, renowned for its wide viewing angles and natural, highly accurate colours, this makes it particularly suitable for colour-critical applications. Whether you’re using it for interactive shop windows, education, kiosks or in-store communications, you can expect exceptional colour performance.
One of the key features of the TF5539UHSC-B1AG is its Touch-Through-Glass function. This innovative feature allows the touch screen to work right through glass, transforming glass surfaces into interactive touch screen displays. This can be particularly useful for storefront windows, real estate offices, in-store POS or restaurants.
The display also features an anti-glare coating. This professional-grade feature helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Manufacturer Overview
PROLITE TF5539UHSC-B1AG
55″ Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use.
The 4K UHD (3840×2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
24/7
24/7 displays are designed for a continuous operation.
Technical Specifications
Display
- HDCP
- Yes
- Screen shape
- Flat
- Display number of colours
- 1.073 billion colours
- Native aspect ratio
- 16:9
- Maximum refresh rate
- 60 Hz
- HD type
- 4K Ultra HD
- Display technology
- LED
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.315 x 0.315 mm
- Horizontal scan range
- 30 – 83 kHz
- Display resolution
- 3840 x 2160 pixels
- Response time
- 8 ms
- Display diagonal
- 139.7 cm (55″)
- Contrast ratio (typical)
- 1100:1
- Surface hardness
- 7H
- Touchscreen type
- Multi-user
- Touchscreen
- Yes
- Number of simultaneous touchpoints
- 15
- Panel type
- IPS
- Display diagonal (metric)
- 139 cm
- Touch technology
- Multi-touch
- Touchscreen technology
- Projected capacitive system
- Display brightness
- 500 cd/m²
Audio
- Built-in speaker(s)
- Yes
- RMS rated power
- 16 W
Performance
- Mean time between failures (MTBF)
- 50000 h
- Built-in microphone
- No
- Built-in camera
- No
- AMD FreeSync
- No
- NVIDIA G-SYNC
- No
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
Number of speakers
- Number of speakers
- 2
Design
- Certification
- CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
- Product colour
- Black
- International Protection (IP) code
- IP54
- Housing material
- Metal
- Glass thickness
- 4 mm
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 1
HDMI ports quantity
- HDMI ports quantity
- 2
DisplayPorts quantity
- DisplayPorts quantity
- 1
Audio input
- Audio input
- 1
Audio output
- Audio output
- 1
- Microphone in
- Yes
- HDMI
- Yes
- HDMI version
- 1.4/2.0
- DisplayPort version
- 1.2
- USB Touch port
- Yes
- RS-232C
- Yes
Technical details
- Height (without stand)
- 749.4 mm
- Depth (without stand)
- 68 mm
- Width (without stand)
- 1271.5 mm
- Placement supported
- Horizontal/Vertical
- Display viewable area (HxV)
- 1209.6 x 680.4 mm
Ergonomics
- Wall mountable
- Yes
- VESA mounting
- Yes
- Panel mounting interface
- 600 x 400 mm
Power
- AC input voltage
- 100-240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (standby)
- 1.5 W
- Power consumption (typical)
- 155 W
- Power consumption (off)
- 0.3 W
- Energy efficiency scale
- A to G
Energy efficiency class (SDR)
- Energy efficiency class (SDR)
- G
- Energy consumption (SDR) per 1000 hours
- 151 kWh
Operational conditions
- Storage temperature (T-T)
- -20 – 60 °C
Packaging content
- Cables included
- AC, DisplayPort, HDMI, USB
Weight & dimensions
- Weight (without stand)
- 41 kg
- Package width
- 1400 mm
- Package depth
- 245 mm
- Package height
- 930 mm
- Package weight
- 46.5 kg
