iiyama Prolite TF4939UHSC-B1AG

In Stock

SKU: F943

  • 49″ diagonal size
  • 3 Year On Site warranty

£1,848.00 Excl. VAT

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 5m HDMI cable (18Gbps)

View Cable
Icon of a Display Mount

£30 off any Mount

View All Display Mounts
Icon of a Display Mount

£10 off any Mount

View All Display Mounts

Manufacturer Overview

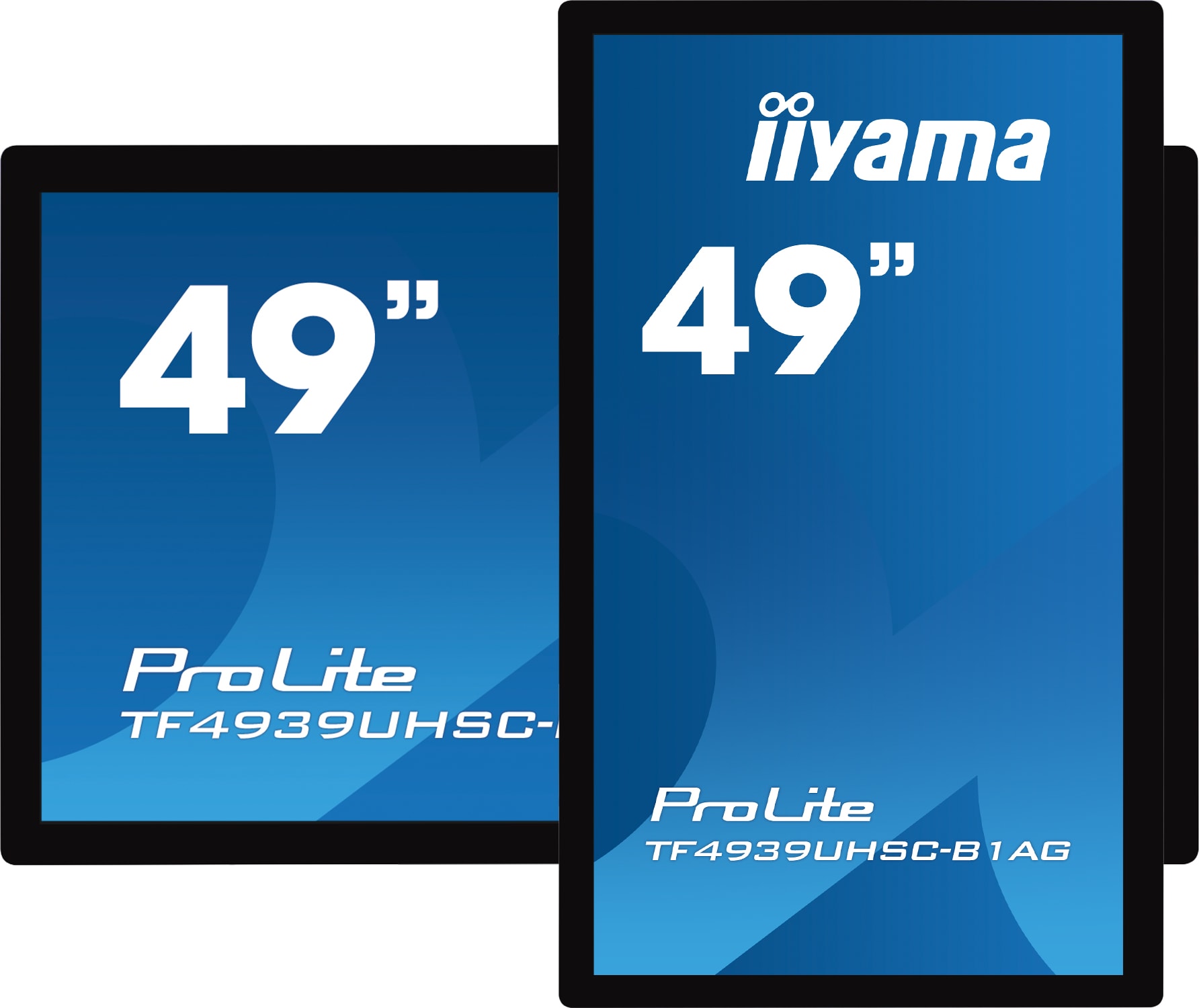

PROLITE TF4939UHSC-B1AG
49″ Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use.
The 4K UHD (3840×2160) Open Frame TF4939UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF4939UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7
24/7 displays are designed for a continuous operation.

Technical Specifications

Display

HDCP
Yes
Screen shape
Flat
Display number of colours
16.78 million colours
Native aspect ratio
16:9
Maximum refresh rate
60 Hz

HD type
4K Ultra HD
Display technology
LED
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.2796 x 0.2796 mm
Digital vertical frequency
30 – 83 Hz
Display resolution
3840 x 2160 pixels
Response time
8 ms
Display diagonal
124.5 cm (49″)
Contrast ratio (typical)
1100:1
Surface hardness
7H
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
15
Panel type
IPS
Display diagonal (metric)
123 cm
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Display brightness
500 cd/m²

Audio

Built-in speaker(s)
Yes
RMS rated power
16 W

Performance

Mean time between failures (MTBF)
50000 h
Built-in microphone
No
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports
1

Number of speakers

Number of speakers
2

Design

Product colour
Black
International Protection (IP) code
IP54
Housing material
Metal
Glass thickness
3 mm

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity
1

HDMI ports quantity

HDMI ports quantity
2

DisplayPorts quantity

DisplayPorts quantity
1

Audio input

Audio input
1

Audio output

Audio output
1
HDMI version
1.4/2.0
DisplayPort version
1.2
USB Touch port
Yes
RS-232C
Yes

Technical details

Height (without stand)
660.5 mm
Depth (without stand)
72.5 mm
Width (without stand)
1130 mm
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
1076 x 606.5 mm

Ergonomics

Wall mountable
Yes
Panel mounting interface
400 x 200 mm

Power

AC input voltage
100-240 V
AC input frequency
50 – 60 Hz
Power consumption (standby)
1.5 W
Power consumption (typical)
135 W
Power consumption (off)
0.3 W

Energy efficiency class (SDR)

Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
133 kWh

Operational conditions

Storage temperature (T-T)
-20 – 60 °C

Packaging content

Cables included
AC, DisplayPort, HDMI, USB

Weight & dimensions

Weight (without stand)
31 kg
Package width
1280 mm
Package depth
245 mm
Package height
835 mm
Package weight
36.7 kg

Other features

Bezel width
2.7 cm
