iiyama Prolite TF4339MSC-B1AG

Call for Availability

SKU: F942

  • 43″ diagonal size
  • 3 Year On Site warranty

£1,175.00 Excl. VAT

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 5m HDMI cable (18Gbps)

View Cable
Icon of a Display Mount

£20 off any Mount

View All Display Mounts

Manufacturer Overview

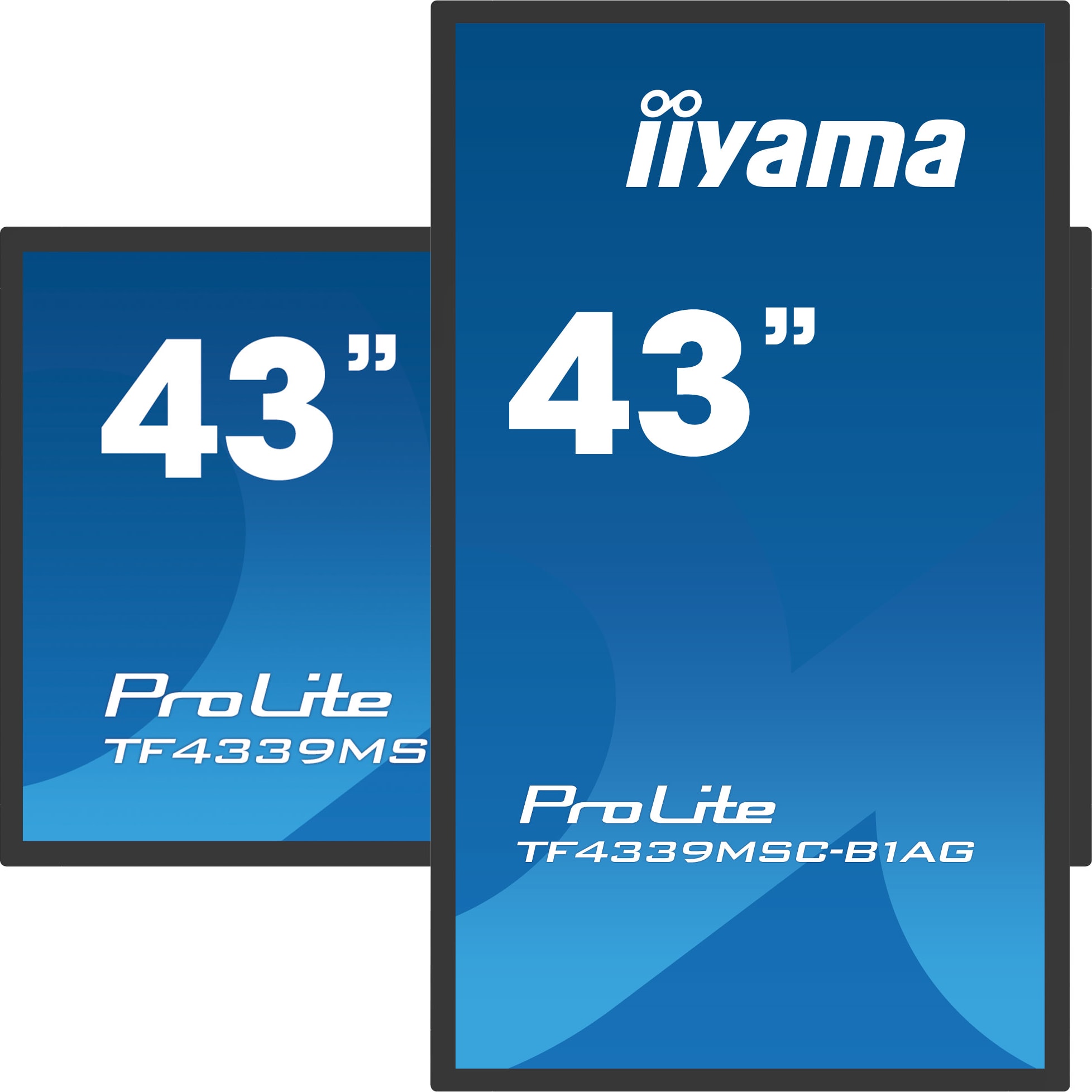

PROLITE TF4339MSC-B1AG
43″ 12pt Open Frame PCAP interactive large format display with touch through glass function.
Touch-Through-Glass technology, guaranteeing a seamless and accurate touch response for true kiosk integration or behind-glass-retail applications. The vibrant, Full HD (1920×1080) TF4339MSC-B1AG Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets (OMK4-3) making it an ideal solution for kiosk integrators and interactive multimedia.

TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

OPEN FRAME LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7
24/7 displays are designed for a continuous operation.

Technical Specifications

Display

HDCP
Yes
Screen shape
Flat
Display number of colours
16.78 million colours
Native aspect ratio
16:9
Maximum refresh rate
60 Hz

HD type
Full HD
Display technology
LED
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.4902 x 0.4902 mm
Horizontal scan range
30 – 83 kHz
Display resolution
1920 x 1080 pixels
Response time
8 ms
Display diagonal
109.2 cm (43″)
Contrast ratio (typical)
4000:1
Surface hardness
7H
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
12
Panel type
AMVA3
Display diagonal (metric)
108 cm
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Display brightness
400 cd/m²

Audio

Built-in speaker(s)
Yes
RMS rated power
16 W

Performance

Built-in microphone
No
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports
1

Number of speakers

Number of speakers
2

Design

Certification
CE, EAC, RoHS, ErP, WEEE, cULus, REACH, UKCA
Product colour
Black
International Protection (IP) code
IP54
Glass thickness
3 mm

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity
1

HDMI ports quantity

HDMI ports quantity
2

DisplayPorts quantity

DisplayPorts quantity
1

Audio input

Audio input
1

Audio output

Audio output
1
HDMI
Yes
USB Touch port
Yes
RS-232C
Yes

Technical details

Height (without stand)
577.5 mm
Depth (without stand)
68 mm
Width (without stand)
985 mm
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
529.25 x 940.86 mm
Power supply type
AC

Ergonomics

Wall mountable
Yes
Panel mounting interface
400 x 200 mm

Power

AC input voltage
100-240 V
AC input frequency
50 – 60 Hz
Power consumption (standby)
1.5 W
Power consumption (typical)
60 W
Power consumption (off)
0.3 W
Energy efficiency scale
A to G

Energy efficiency class (SDR)

Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
56 kWh

Operational conditions

Storage temperature (T-T)
-20 – 60 °C

Packaging content

Cables included
AC, DisplayPort, HDMI, USB

Weight & dimensions

Weight (without stand)
23 kg
Package width
1070 mm
Package depth
200 mm
Package height
700 mm
