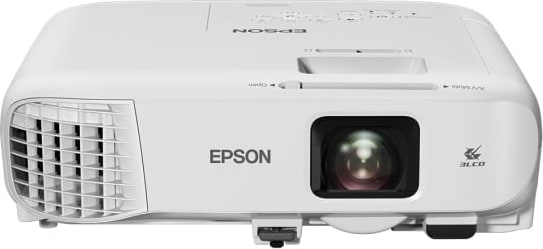

Epson EB-X49
SKU: p5434
The Epson EB-X49 offers bright, vivid content on a large scalable screen. With installation flexibility and network capability, it’s perfect for presentations.
- 3600 Lumens Brightness (Lamp / LCD)
- XGA Resolution – 4:3 Aspect Ratio
- Lens Ratio 1.48-1.77 : 1
- Projector warranty: 3 years Return To Base
- Lamp warranty: 3 Years / 1000 hours
- 2.7 KG
- Volume discounts available
£410.00 Excl. VAT
WishlistIn Wishlist
We offer credit terms to education, health, government bodies and PLC companies.
Email official purchase orders to info@projectorpoint.co.uk
Quick Links
Projectorpoint Opinion
Compact display, optional wireless – Combines the versatility to be positioned just about anywhere with excellent brightness and sharpness, plus low-maintenance performance.
Manufacturer Overview
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
Technical Specifications
- Number of colours
- 1.07 billion colours
- Projector native resolution
- XGA (1024×768)
- Native aspect ratio
- 4:3
- Supported aspect ratios
- 4:3
- Screen size compatibility
- 762 – 7620 mm (30 – 300″)
- Contrast ratio (typical)
- 16000:1
- Zoom ratio
- 1.2:1
- Zoom capability
- Yes
- Vertical scan range
- 100 – 120 Hz
- Projector brightness (economic mode)
- 2400 ANSI lumens
- Matrix size
- 1.4 cm (0.55″)
- Keystone correction, vertical
- -30 – 30°
- Keystone correction, horizontal
- -30 – 30°
- Projection technology
- 3LCD
- Projector brightness
- 3600 ANSI lumens
- Zoom type
- Manual
Lamps
- Lamp type
- UHE
- Lamp power
- 210 W
- Light source type
- Lamp
- Service life of light source
- 6000 h
- Service life of light source (economic mode)
- 12000 h
Lens system
- Focus
- Manual
- Focal length range
- 16.9 – 20.28 mm
- Aperture range (F-F)
- 1.49 – 1.72
- Throw ratio
- 1 – 1.2:1
Video
- Video processing
- 10 bit
- Video colour modes
- Dynamic, Cinema, Presentation, sRGB, Blackboard
- Full HD
- No
- 3D
- No
- Built-in speaker(s)
- Yes
Number of built-in speakers
- Number of built-in speakers
- 1
- RMS rated power
- 5 W
Ports & interfaces
- HDMI connector type
- Full-size
USB 2.0 Type-B ports quantity
- USB 2.0 Type-B ports quantity
- 1
- PC in (D-Sub)
- Yes
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 3
HDMI ports quantity
- HDMI ports quantity
- 1
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
Composite video in
- Composite video in
- 1
- Serial interface type
- RS-232C
- PC Audio out
- Yes
- PC Audio in
- Yes
- DVI port
- No
- AC (power) in
- Yes
Network
- Smart TV
- No
- Ethernet LAN
- Yes
- Card reader integrated
- No
Sound emission
- Noise level
- 37 dB
- Noise level (economic mode)
- 28 dB
Technical details
- Product colour
- White
- Preset modes
- Blackboard, Dynamic, Presentation, Theatre, sRGB
- Products per pallet (UK)
- 78 pc(s)
- USB display function
- 3 in 1: Image / Mouse / Sound
Features
- Country of origin
- Philippines
Design
- Product type
- Standard throw projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Ceiling, Desktop
Power
- AC input voltage
- 100-240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 327 W
- Power consumption (economy mode)
- 225 W
Packaging data
- Package width
- 355 mm
- Package depth
- 380 mm
- Package height
- 160 mm
- Package weight
- 4.12 kg
Software
- Bundled software
- EasyMP Multi PC Projection, Epson Projektor Management
- Software support
- via: AMX, Crestron (Network), Control4, Extron
Operational conditions
- Storage temperature (T-T)
- -10 – 60 °C
Weight & dimensions
- Weight
- 2.7 kg
- Width
- 302 mm
- Depth
- 249 mm
- Height
- 87 mm
Packaging content
- Remote control included
- Yes
- Quick start guide
- Yes
- Cables included
- AC, HDMI
- Batteries included
- Yes
- WLAN adapter included
- Yes
Other features
- Supported network protocols
- PJLink
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
