Epson EB-720
SKU: p5462
This product is now discontinued. Please contact us for details of a replacement product
The Epson EB-720: bright, large-format display up to 110″. Multiple collaboration options. Compatible with document camera. Reliable laser technology.
- 3800 Lumens Brightness (Laser / LCD)
- XGA Resolution – 4:3 Aspect Ratio
- Projector warranty: 5 Years Return To Base
- Laser warranty: 5 Years / 12000 cumulative hours
- 4.5 KG
- Does not ship with wall mount in the box as standard. Full details on optional Epson Wall mount (ELPMB62)
- Project pricing available
WishlistIn Wishlist
We offer credit terms to education, health, government bodies and PLC companies.
Email official purchase orders to info@projectorpoint.co.uk
Quick Links
Manufacturer Overview
Whatever the size of workspace, unrestricted and immersive presentations are now possible with this compact, affordable display solution. Due to a large display size, and flexible formats, content can be viewed from every angle, and participants can share directly from their own devices, for the perfect collaborative experience.
With the EB-720, users are no longer restricted to a single display size, with bright, large scalable options up to 110”. Unlike flat-panel equivalents, there are no shadows, glare or blind spots, and the 3,800lm high-brightness laser light source can work when ambient lighting is also high. Multi-screen capability makes collaboration easy and intuitive, while a split-screen feature can show up to four inputs on one large display.
The viewing experience is more immersive, with multiple connectivity options enhancing exceptional image and sound quality. For the ultimate in engagement, wireless connectivity, including Screen Mirroring via Miracast, allows everyone to share content from their tablets, mobiles or laptops. By connecting an optional Epson document camera you can easily display images of 3D objects with incredible detail for the whole room to see.
Unlike flat panels displays, the EB-720 provides multiple display sizes and formats for one fixed cost. It also offers flexible mounting options to deploy a more comfortable view for delegates. When used with antibacterial whiteboards it provides more hygienic workspaces and is free from finger marks.
Sustainability is another strength, based on sustainable manufacturing, product usage and lifecycle.
Key Features
– Any room, any size: Bright, large-format display options up to 110″
– Every-angle viewing: No restricted angles, shadows, glare or blind spots
– Multiple collaboration options: Expand connectivity through BYOD devices, VC cameras and more
– Document camera compatibility: Create a totally immersive experience with sound and visuals
– Exceptional reliability: Maintenance-free laser technology for fit-and-forget peace of mind
Technical Specifications
- Number of colours
- 1.07 billion colours
- White light output
- 3800 ANSI lumens
- Colour light output
- 3800 ANSI lumens
- Projector native resolution
- XGA (1024×768)
- Native aspect ratio
- 4:3
- Screen size compatibility
- 1651 – 2794 mm (65 – 110″)
- Contrast ratio (typical)
- 2500000:1
- Zoom ratio
- 1.35:1
- Vertical scan range
- 100 – 120 Hz
- Projector brightness (economic mode)
- 2660 ANSI lumens
- Matrix size
- 1.4 cm (0.55″)
- Keystone correction, vertical
- -3 – 3°
- Keystone correction, horizontal
- -3 – 3°
- Projection technology
- 3LCD
- Projector brightness
- 3800 ANSI lumens
- Zoom type
- Auto
Lamps
- Light source type
- Laser
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 30000 h
Lens system
- Fixed focal length
- 3.7 mm
- Focus
- Manual
- Throw ratio
- 0.32 – 0.43:1
Video
- Video processing
- 10 bit
- Video colour modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB
- Full HD
- No
- 3D
- No
- Built-in speaker(s)
- Yes
- RMS rated power
- 16 W

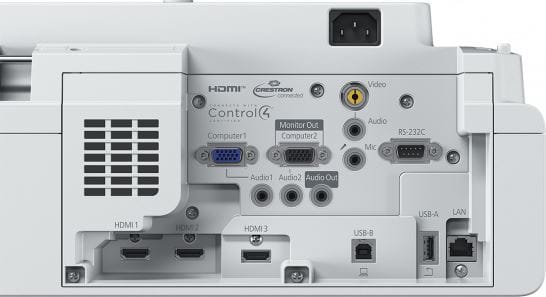

Ports & interfaces
- HDMI connector type
- Full-size
USB 2.0 Type-B ports quantity
- USB 2.0 Type-B ports quantity
- 1
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 3
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 2
Audio (L/R) in
- Audio (L/R) in
- 3
Audio (L/R) out
- Audio (L/R) out
- 1
- Microphone in
- Yes
- Serial interface type
- RS-232C
- DVI port
- No
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports
- Miracast
- Yes
Sound emission
- Noise level
- 36 dB
- Noise level (economic mode)
- 26 dB
Technical details
- Product colour
- White
- Products per pallet (UK)
- 24 pc(s)
Performance
- Password protection
- Yes
Features
- Interactive
- No
- Country of origin
- China
Design
- Product type
- Ultra short throw projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Ceiling, Wall
Power
- AC input voltage
- 100-240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 255 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 197 W
Packaging data
- Package width
- 442 mm
- Package depth
- 475 mm
- Package height
- 312 mm
- Package weight
- 8.21 kg
Software
- Bundled software
- EasyMP Multi PC Projection, Epson Projektor Management
- Software support
- via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
- Storage temperature (T-T)
- -10 – 60 °C
Weight & dimensions
- Weight
- 5.7 kg
- Width
- 356 mm
- Depth
- 395 mm
- Height
- 133 mm
Packaging content
- Remote control included
- Yes
- Quick start guide
- Yes
- Cables included
- AC
- Batteries included
- Yes
- WLAN adapter included
- Yes
Other features
- Supported network protocols
- HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
