    Ideal for:
  • EducationFor Education

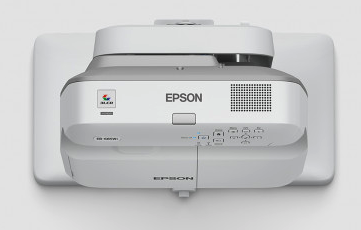

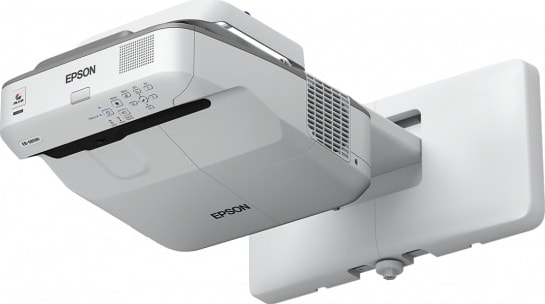

Epson EB-685Wi

In Stock
FREE UK Mainland Delivery

SKU: p4821

The Epson EB-685Wi offers interactive features, high brightness, and image quality. Its dual pen capability allows for simultaneous use.

  • 3500 Lumens Brightness (Lamp / LCD)
  • WXGA Resolution – 16:10 Aspect Ratio
  • 5 Years Return To Base warranty
  • 5 Years / 1000 hours Lamp warranty
  • 5.9 KG
  • Volume discounts available

£1,279.00 Excl. VAT

We offer credit terms to education, health, government bodies and PLC companies.

Email official purchase orders to info@projectorpoint.co.uk

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 5m HDMI cable (18Gbps)

View Cable
Icon of a Projector Screen

£30 off any Projector Screen

View All Screens
Icon of a Projector Mount

£30 off any Mount

View All Mounts

Projectorpoint Opinion

Education pricing available. Please contact us for further info

Dedicated ultra short throw lens. Create large images from a short distance. Interactive features. This unit includes the Interactive pens and Pen tray.

Manufacturer Overview

This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Dual pen
Epson’s interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2.

Technical Specifications


Number of colours
1.073 billion colours
White light output
3500 ANSI lumens
Colour light output
3500 ANSI lumens
Projector native resolution
WXGA (1280×800)
Projection distance (wide)
0 – 0.4 m

Projection distance (tele)
0 – 0.6 m
Native aspect ratio
16:10
Supported aspect ratios
16:10
Screen size compatibility
1524 – 2540 mm (60 – 100″)
Contrast ratio (typical)
300:1
Contrast ratio (dynamic)
14000:1
Zoom ratio
1.35:1
Projector brightness (economic mode)
2900 ANSI lumens
Vertical synchronization (min)
0.1 kHz
Vertical synchronization (max)
0.12 kHz
Matrix size
1.5 cm (0.59″)
Keystone correction, vertical
±3°
Keystone correction, horizontal
±3°
Projection technology
3LCD
Projector brightness
3500 ANSI lumens

Lamps

Lamp power
250 W
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
10000 h

Lens system

Focus
Manual
Throw ratio
0.28:1

Video

Full HD
No
3D
No
Built-in speaker(s)
Yes
RMS rated power
16 W

Ports & interfaces

RS-232C
Yes

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity
3

HDMI ports quantity

HDMI ports quantity
3

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity

USB 2.0 ports quantity
3

Composite video in

Composite video in
1

Audio (L/R) in

Audio (L/R) in
1

Headphone outputs

Headphone outputs
1
Microphone in
Yes

S-Video inputs quantity

S-Video inputs quantity
1
Serial interface type
RS-232C

RS-232 ports

RS-232 ports
1
DVI port
No
AC (power) in
Yes

Network

Ethernet LAN
Yes
Card reader integrated
No

Sound emission

Noise level
35 dB
Noise level (economic mode)
30 dB

Technical details

Product colour
Grey, White
Products per pallet layer (UK)
2 pc(s)
Products per pallet (UK)
12 pc(s)
Pallet width (UK)
100 cm
Pallet height (UK)
15 cm

Performance

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Features

Country of origin
Philippines

Design

Product type
Ultra short throw projector
Cable lock slot type
Kensington
LED indicators
Yes
Cable lock slot
Yes
Placement
Wall

Power

AC input voltage
220 – 240 V
AC input frequency
50 – 60 Hz
Power consumption (typical)
354 W
Power consumption (standby)
0.39 W
Power consumption (economy mode)
310 W

Packaging data

Package width
490 mm
Package depth
730 mm
Package height
335 mm
Package weight
20 kg

Operational conditions

Storage temperature (T-T)
-10 – 60 °C

Weight & dimensions

Weight
5.9 kg
Width
367 mm
Depth
400 mm
Height
149 mm

Packaging content

Remote control included
No
Manual
Yes

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Epson EB-685Wi”

Your email address will not be published. Required fields are marked *


Need help or advice? Talk to experts!

If you need help making your choice, simply call our experts on our freephone.
Call Now:  0800 073 0833

Projection Calculator

OR
Throw Distance:
450 cm
Diagonal:
181 - 382 cm
Width:
158 - 333 cm
Height:
89 - 187 cm

Where can I position the projector?

To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
