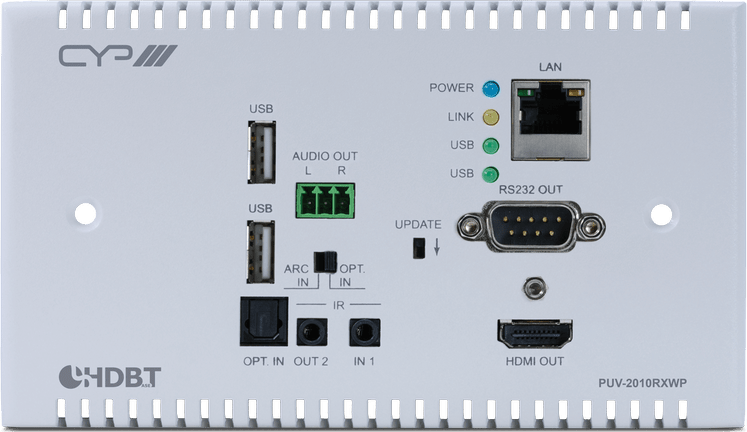

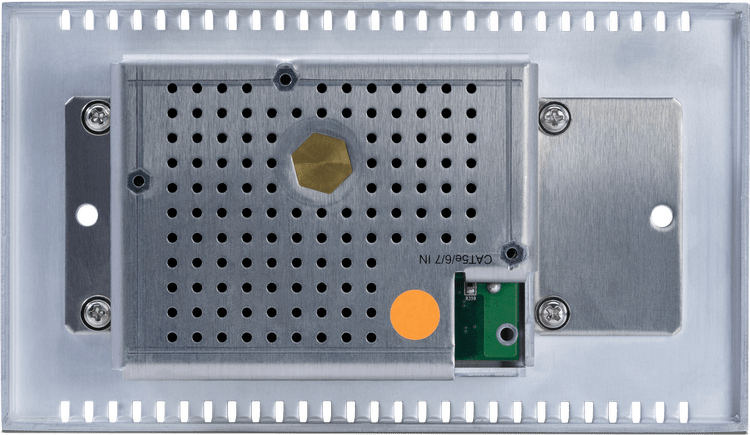

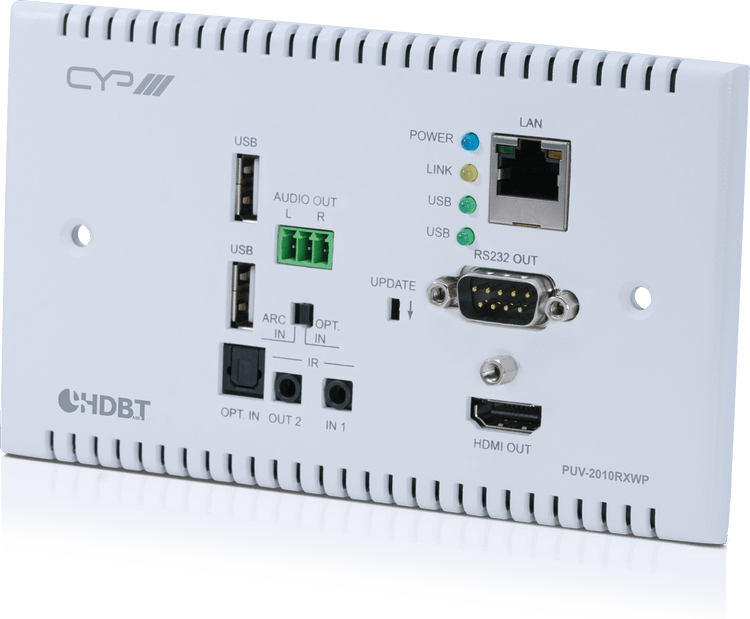

CYP – PUV-2010RXWP 100m HDBaseT 2.0 Wall Plate Receiver

Call for Availability
FREE UK Mainland Delivery

SKU: x10950

Call for Price & Availability

Manufacturer Overview

The PUV-2010RXWP UK Wall Plate Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments.

In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

Specification
  • Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
  • HDCP 2.2, HDMI and DVI compatible
  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Optical audio return (OAR)
  • Supports optical sampling rate up to 48kHz
  • Audio return channel (ARC)
  • Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
  • Receiver features 2 x USB 2.0 ports
  • Fits in a standard UK standard double-gang back-box
Inputs 1x RJ45 [1x HDBaseT 2.0 HDMI & Propriety Data]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
Outputs 1x HDMI [1x HDMi Uncompressed AV and Data]
1x USB Type A [1x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x Stereo (L/R) Audio Output]
1x 9pin Dsub [1x RS-232 Data]
POE PSU: PoH
Dimensions 90mm [W] x 156mm [D] x 42mm [H]
Net Weight 285g
Gross Weight 600g
