CYP AU-A300-HBT HDBaseT 2 Channel AV Reciever

Call for Availability
FREE UK Mainland Delivery

SKU: x10959

Call for Price & Availability

Manufacturer Overview

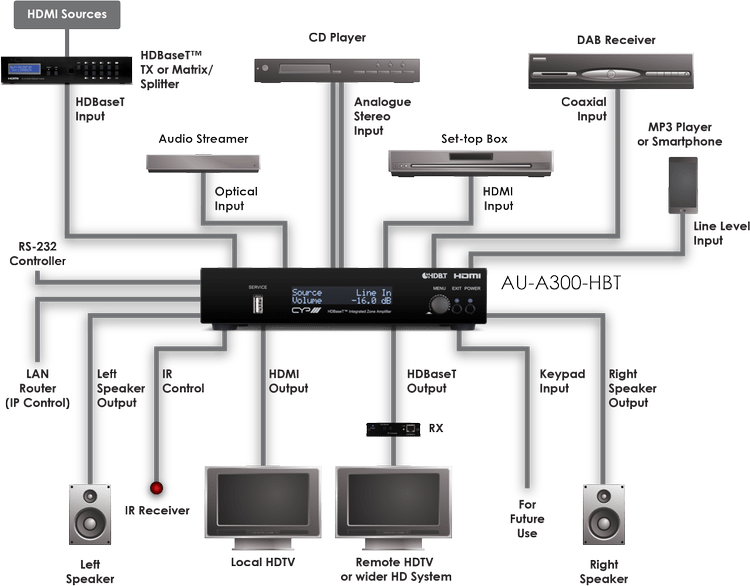

?The AU-A300-HBT is a compact 2 channel digital receiver that is perfect for providing high quality audio distribution in remote AV zones within any multi-room installation. This advanced solution can integrate local HDMI and remote HDBaseT sources from a CYP matrix, local inputs (iPod and MP3 etc) via the stereo and digital inputs and even utilise the audio output from a TV, which is growing in popularity as a dedicated source within an AV system. The device also incorporates a HDBaseT output that can be used for creating additional HDBaseT zones or used to repeat the signal to further HDBaseT 2-Channel Digital AV Receivers.



Specification
  • 30W per channel digital stereo Amplifier
  • Integrated HDBaseT Input and Output
  • Control via remote control, RS-232 or IP (Web GUI or Telnet)
  • Simultaneous audio outputs
  • HDMI Audio Embedding
  • Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion
  • Compact design for remote in-zone application
  • Supports PoE (Power over Ethernet) for connected compatible HDBaseT receivers

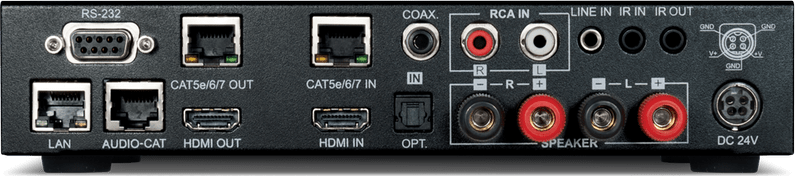

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x RCA [1x Coaxial 2 Channel LPCM]
1x Toslink [1x Optical 2 Channel LPCM]
2x RCA [1x Analogue Stereo (L/R)]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x RJ45 [1x Keypad – reversed for future use – Propriety Data]
1x USB Type A [1x Service Port Propriety Data]
Outputs 4x Speaker Binding Posts [1x Speaker Level Stereo Output]
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
PSU: 24V/3.75A
Dimensions 215mm [W] x 150mm [D] x 50mm [H]
Net Weight 1640g
Gross Weight 1960g
