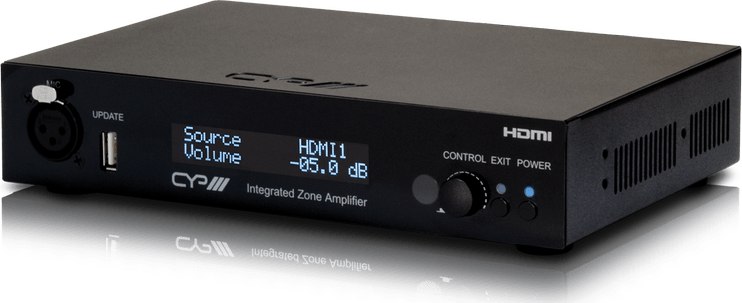

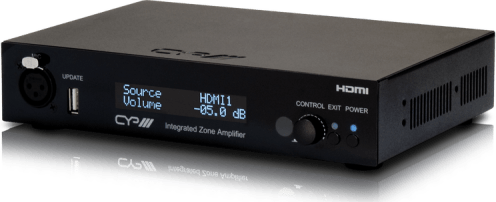

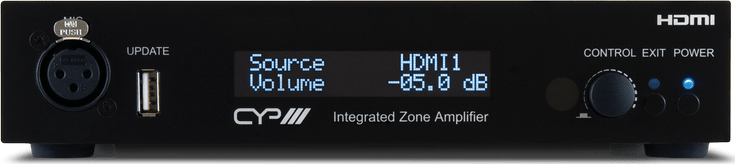

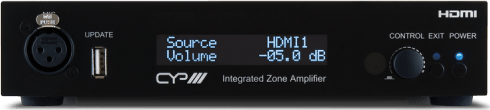

CYP AU-A300 2 Channel Digital Amplifier

Call for Availability
FREE UK Mainland Delivery

SKU: x10957

Call for Price & Availability

Manufacturer Overview

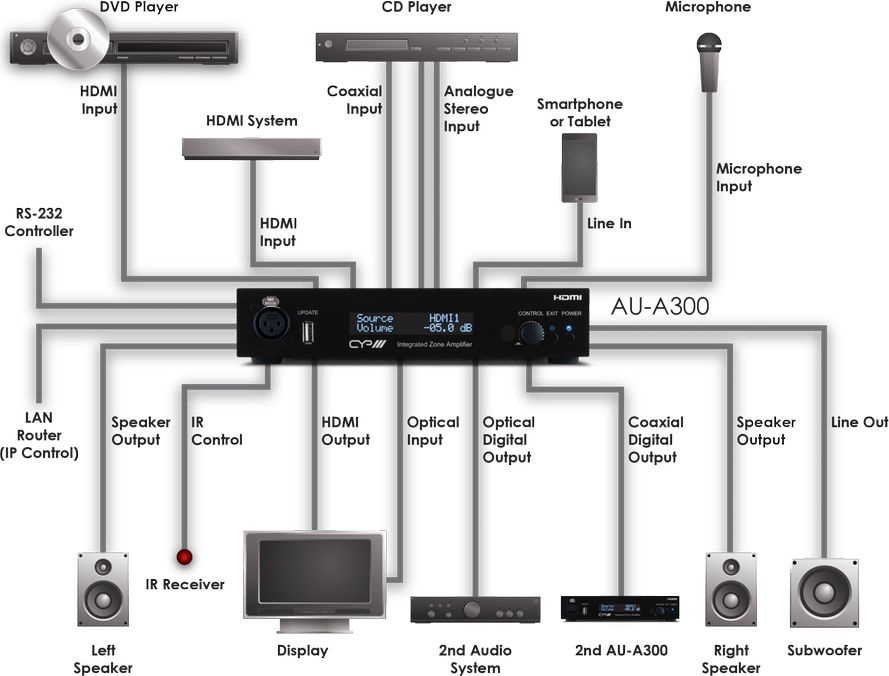

The CYP AU-A300 is a compact 2 channel digital amplifier that is perfect for providing high quality audio distribution into remote AV zones within any multi-room installation. This advanced solution can integrate HDMI audio outputs from a HDMI matrix, local inputs (iPod and MP3 etc) via the stereo and digital inputs and even utilise the audio output from a TV, which is growing in popularity as a dedicated source within an AV system.

  • 30W per channel digital stereo Amplifier
  • Inputs: 2 x HDMI, 1 x L/R Stereo audio, 1 x Optical, 1 x Digital Co-Ax, 1 x 3.5mm Stereo
  • Outputs: 1 x HDMI, 1 x Optical, 1 x Digital Co-Ax, 1 x L/R Stereo (Line Level output), Speaker Terminals

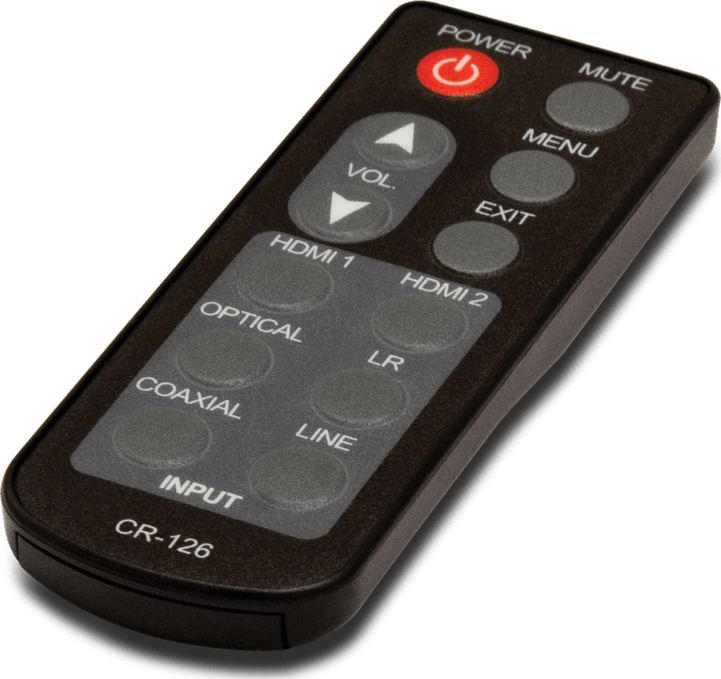

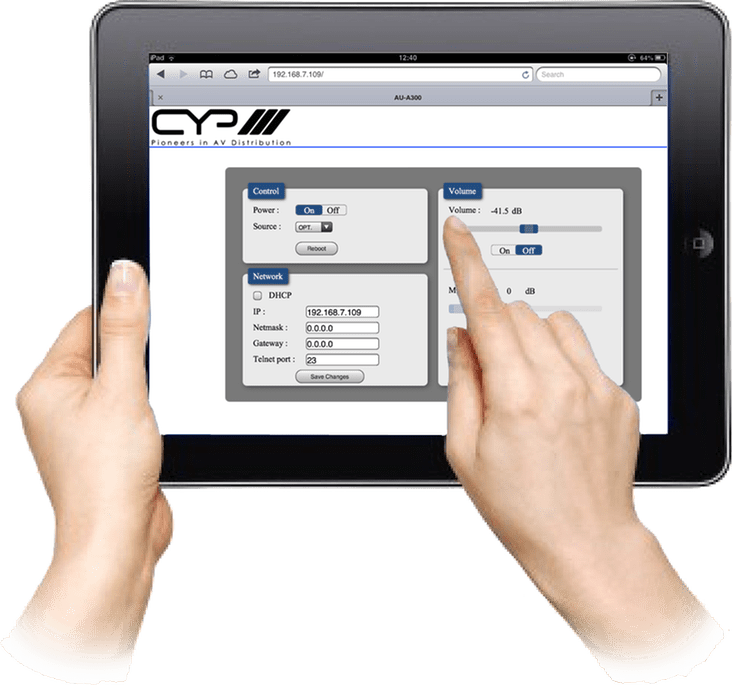

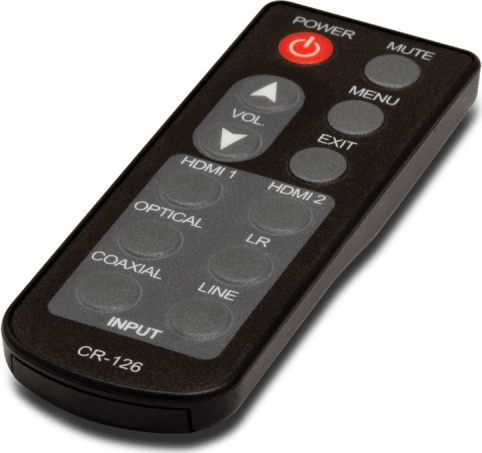

  • Control via remote control, RS-232 or IP (Web GUI or Telnet)
  • Simultaneous audio outputs
  • Dedicated Microphone input for commercial applications
  • Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion
  • Compact design for remote application
Inputs 2x HDMI [2x HDMI Uncompressed AV and Data]
1x XLR [1x Microphone]
1x Toslink [1x Optical – 2 Channel LPCM]
1x RCA [1x Coaxial – 2 Channel LPCM]
2x RCA [1x Analogue – Stereo (L/R)]
1x 3.5mm Stereo mini-jack [1x Analogue – Stereo(L/R)]
1x RJ45 [1x IP Control]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]

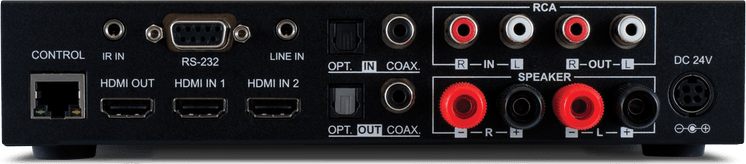

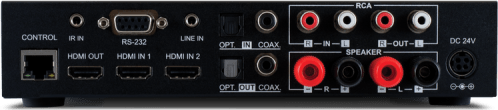

Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x Toslink [1x Optical – 2 Channel LPCM]
1x RCA [1x Coaxial – 2 Channel LPCM]
2x RCA [1x Analogue – Stereo (L/R)]
4x Speaker Binding Posts [1x Speaker Level Stereo Output]
PSU: 24V/4.16A
Dimensions 255mm [W] x 170mm [D] x 48mm [H]
Net Weight 1060g
Gross Weight 2260g
