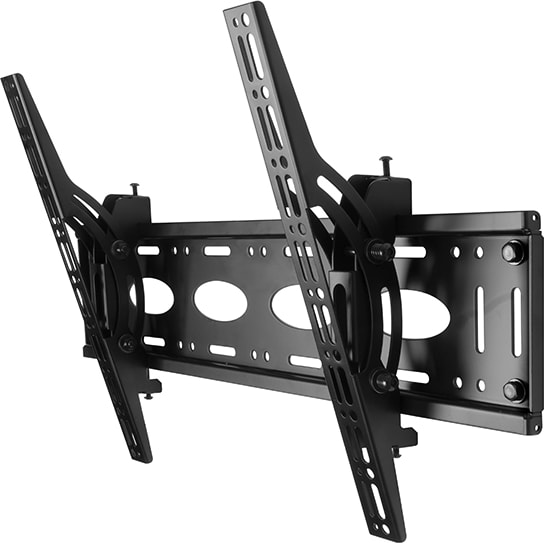

BTech – Universal Flat Screen Wall Mount With Tilt (BT8432)

Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

– Unique ‘Torsion-tilt’ mechanism for easy tilt adjustment
– Lateral adjustment of screen once mounted
– Levelling screws allow adjustment of screen height
– Security locking screws and Allen key to prevent unauthorised screen removal
– Collar compatible ideal for pole mounting
– Simple ‘hook-on’ installation with all mounting hardware included

Specification

• Recommended screen size: up to 80″
• Max load: 70kg* (*Please note the maximum load is reduced to 50kg when pole mounted)
• VESA® compatibility: up to 600 x 400
• Universal fixings: up to 677 x 400mm
• Tilt: +/-15°
• Distance from wall (flat): 81mm
• Distance from wall (full tilt): 148mm
