Blustream HDBaseT Extender Set (HEX70ED-KIT-V2)

Call for Availability
FREE UK Mainland Delivery

SKU: x10321

Call for Price & Availability

Manufacturer Overview

The Blustream HEX70ED-KIT V2 4K HDCP 2.2 HDBaseT extender set offers market leading features and outstanding value. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m. The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

Key Features

    • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
    • Extends HDMI up to a distance of 70m over single CAT cable at 1080p
    • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
    • Supports all industry standard video resolutions including VGA to WUXGA and 480i to 4K
    • Features 1x HDMI loop out for integrating local displays or cascading to further signal distribution devices
    • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
    • Bi-directional RS-232 pass through
    • Bi-directional IR from all input and output locations
    • Supplied with Blustream IR receiver and emitter
    • Advanced EDID management
    • HDCP 2.2 support


Video input:

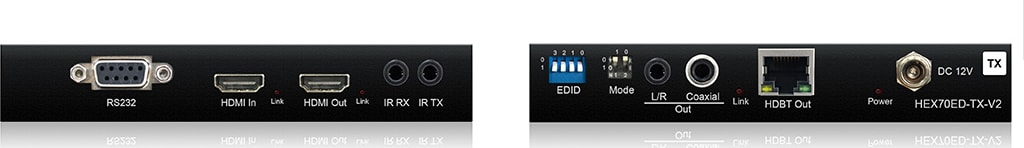

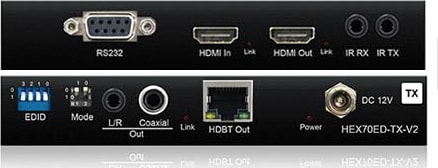

    • HEX70ED-TX: 1X HDMI Type A, 19-pin, female

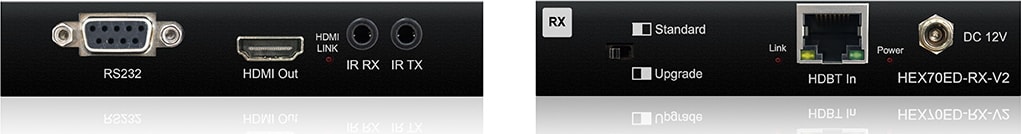

    • HEX70ED-RX: 1x HDBaseT RJ45

Video output:

  • HEX70ED-TX: 1x HDBaseT RJ45, 1X HDMI Type A, 19-pin, female
  • HEX70ED-RX: 1X HDMI Type A, 19-pin, female
  • IR input 2x 3.5mm stereo jack
  • IR output 2x 3.5mm mono jack
  • RS-232 control: 2x DB9 female
  • EDID DIP switch: 4-pin
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 9.5W
  • Ind. Unit Dimensions (W x D x H): 110mm x 108mm x 22mm (RX), 139mm x 114mm x 22mm (TX), without connections
  • Ind. Unit Dimensions (W x D x H): 110mm x 118mm x 22mm (RX), 139mm x 127mm x 22mm (TX), with connections
