Blustream HDBaseT Extender Set (HEX100ARC-KIT-V2)

Part of the Blustream Platinum Range of HDBaseT products offering the very best in performance and flexibility. The HEX100ARC-KIT-V2 extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m over a single CAT cable. The HEX100ARC-KIT-V2 also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Key Features

• • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Extends HDMI up to a distance of 100m over single CAT cable at 1080p
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA to WUXGA and 480i to 4K
  • Supports 3D signal display
  • Features 1x HDMI loop out for integrating local displays or cascading to further signal distribution devices
  • Supports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (to 90m max distance)
  • Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated 3-port 10/100BaseT Ethernet switch (LAN Serving)
  • Bi-directional RS-232 pass through
  • Bi-directional IR from all input and output locations
  • Supplied with Blustream IR receiver and emitter
  • Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end
  • HDCP 2.2 support

Specifications

HEX100ARC-TX-V2

• • Video Input Connectors: 1x HDMI Type A, female
  • Video Output Connectors: 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
  • Audio Output Connectors: 2x RCA (L/R), 1x Optical (SPDIF)
  • Ethernet port: 1x RJ45 connector
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • 2x mounting bracket

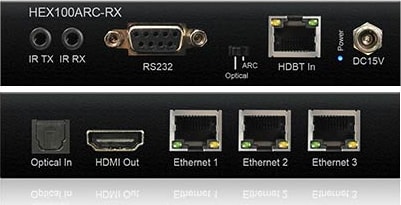

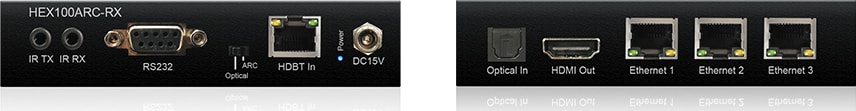

HEX100ARC-RX

• Video Input Connectors: 1x HDBaseT RJ45 connector,
• Video Output Connectors: 1x HDMI Type A, female
• Audio Input Connectors: 1x Optical (SPDIF)
• Ethernet port: 3x RJ-45 connector
• RS-232 serial port: 1x DB-9 female
• IR Input ports: 1x 3.5mm stereo jack
• IR Output ports: 1x 3.5mm mono jack
