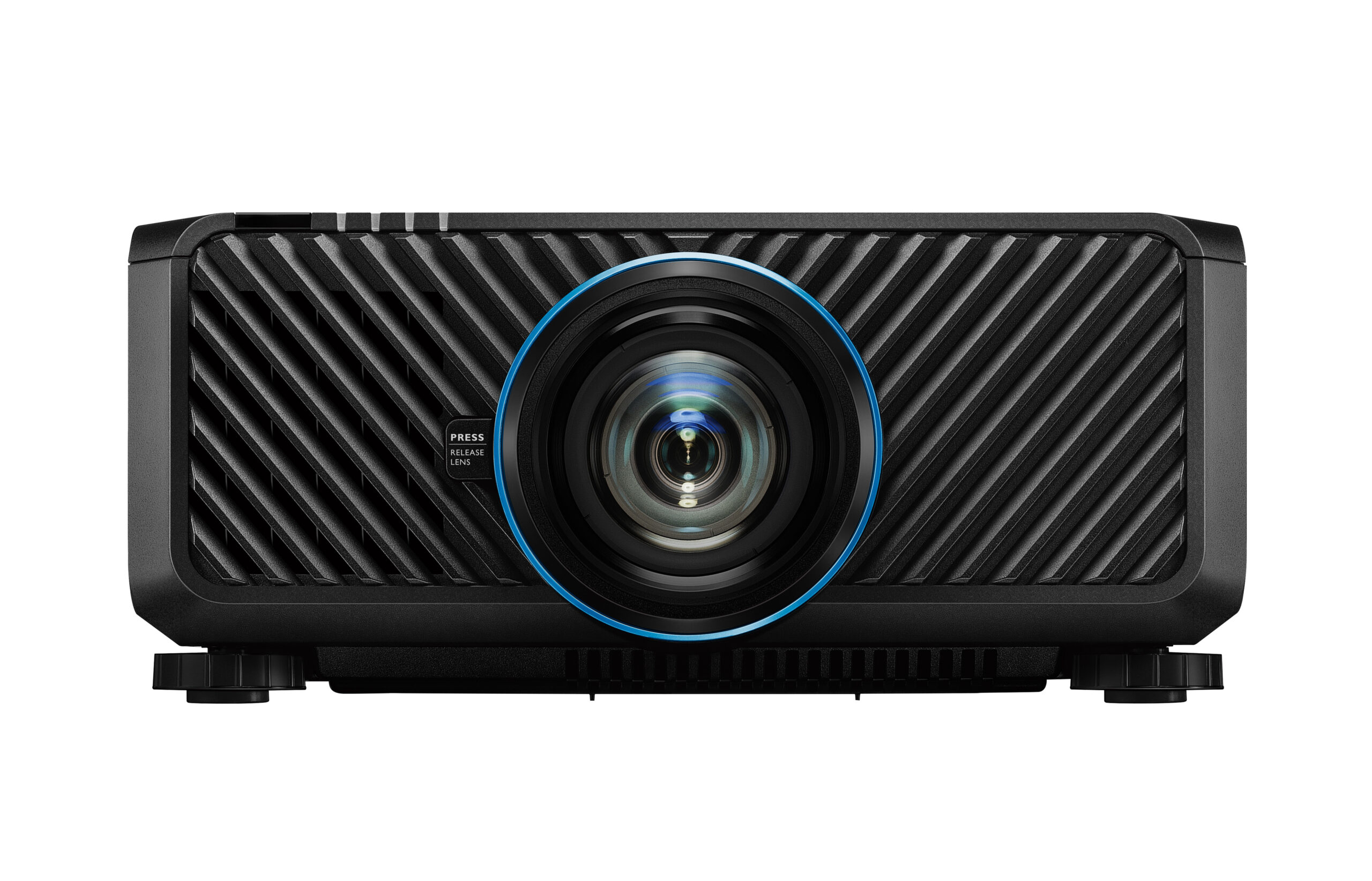

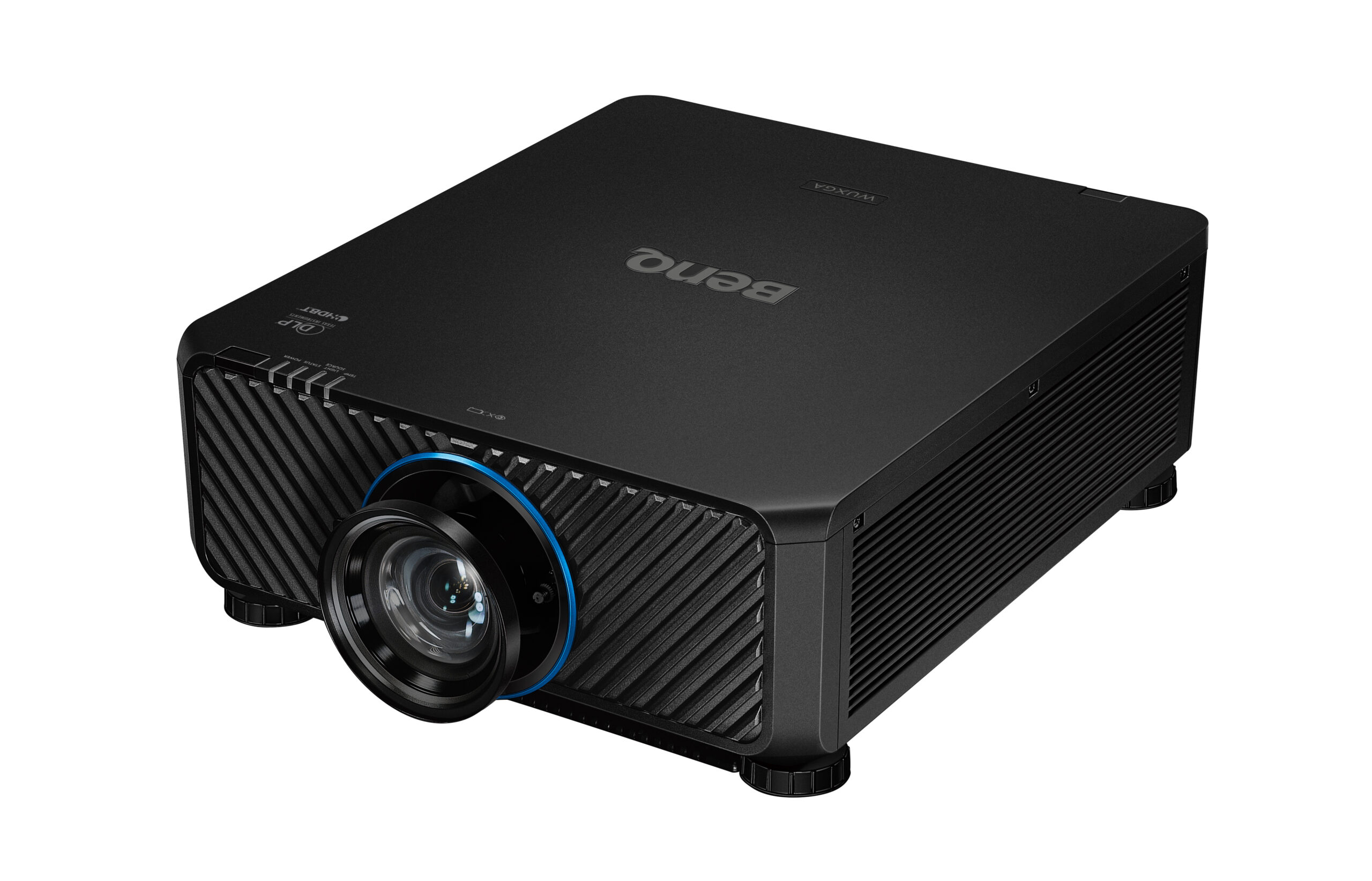

BenQ LU9245
The BenQ LU9245 is a powerful laser projector with 7000 lumens, dual colour wheels for superior colour performance, and HDMI 2.0 compatibility for 4K content.
- 7000 Lumens Brightness (Laser / DLP)
- WUXGA Resolution – 16:10 Aspect Ratio
- Optional Lenses available
- 5 Years warranty
- 20000 Hours Laser warranty
- 24 KG
- Project pricing available
£4,238.00 Excl. VAT
Quick Links
Projectorpoint Opinion
The BenQ LU9245 is a dedicated large venue installation projector featuring a laser light source and 7000 ansi lumens. Native widescreen high definition WUXGA resolution 1920 x 1200 pixels, 16:10 aspect ratio), extensive connectivity and fleet of 5 optional interchangeable lenses for installation flexibility.
This models ships lensless as standard

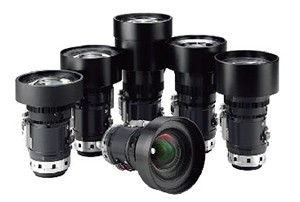

Lenses (Optional)
LS2ST3 Wide Fix (5J.JDH37.002) – 0.778
LS2ST1 Wide Zoom (5J.JDH37.011) – 0.77~1.1
LS2ST2 Short Throw(5A.JK337.001) – 1.25~1.6
LS2ST4 Semi Throw(5A.JK337.011) – 1.1 ~ 1.3
LS2SD2 Standard (5J.JEN37.001) – 1.54 ~ 1.93
LS2LT1 Semi Long (5J.JDH37.032) – 1.93 ~ 2.9
LS2LT2 Long Zoom (5J.JDH37.041) – 3 ~ 5
Manufacturer Overview
BlueCore Laser Projectors from the World’s No.1 DLP Brand The BenQ LU9245 BlueCore Laser Projector is the brightest choice for large venue applications, featuring superior 7,000 ANSI-lumen brightness and 3,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. The BlueCore laser engine also delivers superior colour performance through a dual colour wheel system, support for 360° and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities. The LU9245 is compatible with a selection of lenses for a wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.
Superior Image Quality

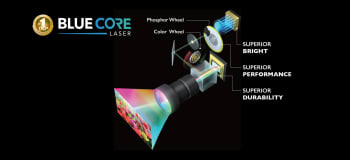

Revolutionary BlueCore Laser Technology
The world’s No.1 DLP brand BenQ expands its full line of innovative BlueCore laser projectors with LU9245, for fixed lens installation, enabling powerful visual communication in museums or other venues for simulated trainings.
Dual Colour Wheels for Optimal Chromatic Performance
LU9245 powerful BlueCore laser projection utilises a dual colour wheel system to produce unparalleled colour performance that achieves a 96% Rec.709 colour coverage. By increasing colour ratios and the purity of RGBY colour, LU9245 dramatically enhances colour saturation to ensure superior presentation quality.
HDMI 2.0 for Supreme Image Quality
To help users enjoy 4K content, LU9245 and HDBase T both come with HDMI 2.0 ports which are compatible with 4K signal. Users can now effortlessly project 4K content with much less friction and enjoy greater brightness and contrast range than SDR.
*The actual output resolution is based on projector’s resolution
Dynamic Dimming
Analyses scene brightness levels to optimise light output and create high contrast. Bringing out subtle details in dark scene and represent the best-in-class dynamic image.
Gamma Selection
Select Gamma for your preference and optimising image quality between input source and picture brightness. Besides, LU9245 also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.
Enduring Reliability
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimise energy consumption and delivers up to 70,000 hours under Eco Mode.

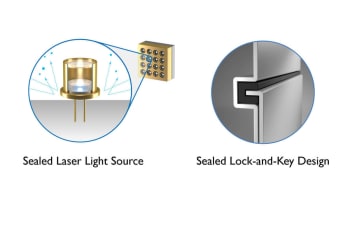

Superior Dustproofing for Severe Conditions with IP5X Certification
BenQ BlueCore laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, colour wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.
Excellent Installation Flexibility
360° and Portrait Projection Accommodate Different Spaces
BlueCore laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.

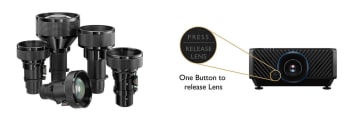

Multiple Lenses for Diverse Applications
BenQ’s LU9245 projector is compatible with seven various lenses. These all-glass optics, eliminate chromatic aberration and colour flare for utmost image quality. Maximise installation options and projection layout with a quick one-button release. Changing lenses is now simple and secure.

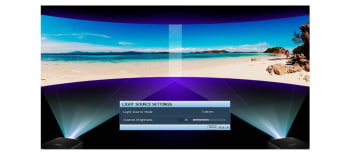

Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 20% to 100% at a 0.5% rate, optimising the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.

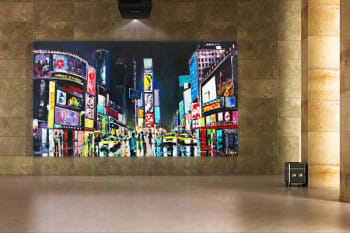

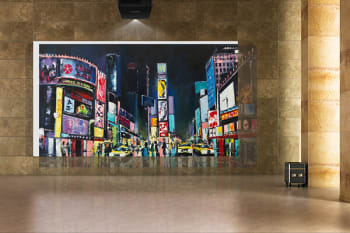

Digital Shrink and Shift without Distortion
Digital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.

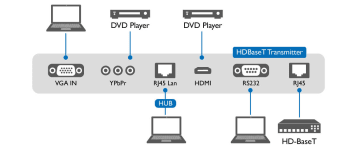

HDBaseT for Uncompressed Transmission Up to 100m and Control
Groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single CAT5 cable. This ensures seamless transmissions up to 100 meters.

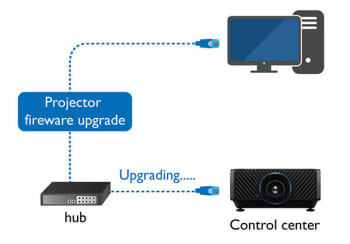

Firmware Upgrade by LAN
Administrators can centrally upgrade firmware on BenQ projectors that are on the same local network via LAN deploying the latest updates to devices at once. This application can upgrade firmware with a friendlier interface
Easy Management

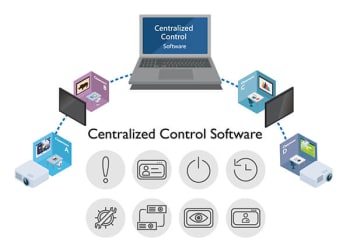

Centralised Control with BenQ Software
BenQ centralised control software is a management tool for computers that enables remote and centralised management of multiple digital projectors by IT administrators/technicians via a local network.The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.
Network/Web Control
BenQ BlueCore laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.

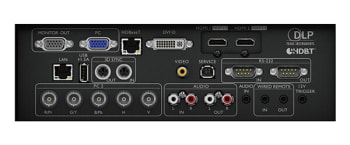

Wide Compatibility
3D Sync IN /3D Sync out
Connect up to 3 projectors and project 3D content together by a single PC.
RS-232 In and Out
Control at same time by RS-232 in and out connected together to make multi-screen projections.
Technical Specifications
- Number of colours
- 1.073 billion colours
- Projector native resolution
- WUXGA (1920×1200)
- Native aspect ratio
- 16:10
- Screen size compatibility
- 1270 – 12700 mm (50 – 500″)
- Contrast ratio (dynamic)
- 3000000:1
- Vertical scan range
- 23 – 120 Hz
- Horizontal scan range
- 15 – 102 kHz
- Matrix type
- DMD
- Matrix size
- 1.7 cm (0.67″)
- Keystone correction, vertical
- -30 – 30°
- Keystone correction, horizontal
- -30 – 30°
- Projection technology
- DLP
- Projector brightness
- 7000 ANSI lumens
Lamps
- Lamp power
- 100 W
- Light source type
- Lamp
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 38000 h
Lens system
- Horizontal lens shift range
- -5 – 5%
- Vertical lens shift range
- -15 – 55%
Video
- Analog signal format system
- NTSC, PAL, SECAM
- Full HD
- Yes
- 3D
- No
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1200 (WUXGA)
- Built-in speaker(s)
- Yes
Number of built-in speakers
- Number of built-in speakers
- 2
- RMS rated power
- 20 W
Ports & interfaces
- Mobile High-Definition Link (MHL)
- No
- HDMI connector type
- Full-size
- HDBaseT port
- Yes
USB 2.0 Type-B ports quantity
- USB 2.0 Type-B ports quantity
- 1
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 2
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 1
Composite video in
- Composite video in
- 1
Audio (L/R) in
- Audio (L/R) in
- 1
Audio (L/R) out
- Audio (L/R) out
- 1
- Serial interface type
- RS-232
- PC Audio in
- Yes
- DVI port
- Yes
Component video (YPbPr/YCbCr) in
- Component video (YPbPr/YCbCr) in
- 1
Network
- Smart TV
- No
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Card reader integrated
- No
Sound emission
- Noise level
- 36 dB
- Noise level (economic mode)
- 34 dB
Technical details
- Product colour
- Black
- HDCP
- Yes
Design
- Product type
- Large venue projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Desktop
Power
- AC input voltage
- 100 – 240 V
- Power consumption (max)
- 650 W
- Power consumption (typical)
- 600 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 400 W
Weight & dimensions
- Weight
- 24 kg
- Width
- 525 mm
- Depth
- 470 mm
- Height
- 216 mm
Packaging content
- Remote control included
- Yes
- Manual
- Yes
- Cables included
- AC, VGA
- Batteries included
- Yes
Other features
- Security updates end date
- 31/12/2024
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
