Atlona Technologies 4K UHD HDMI Over HDBaseT Kit with PoE (AT-UHD-EX-70-KIT)

Name: Atlona Technologies 4K UHD HDMI Over HDBaseT Kit with PoE (AT-UHD-EX-70-KIT) - Projectorpoint
SKU: x9693
Price: 299.00 GBP
Availability: OutOfStock

Call for Availability

•

SKU: x9693

£358.80 Incl. VAT£299.00 Excl. VAT

Call Now

WishlistIn Wishlist

Manufacturer Overview

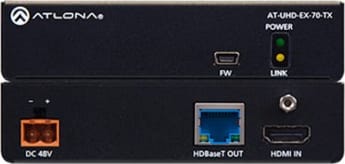

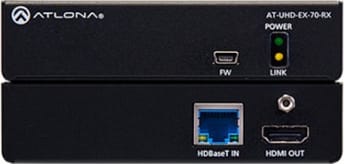

The Atlona AT-UHD-EX-70-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable with Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.

The AT-UHD-EX-70-KIT provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; compliant with HDCP 2.2 to meet the latest copy protection requirements; an easy-to-install form factor with rear panel HDBaseT, HDMI, and power connections; a rackmountable form factor that allows for four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

The AT-UHD-EX-70-KIT is ideal for use in residential or commercial point to point applications that require HDBaseT signal transmission over greater distances than HDMI can support. As a transmitter/receiver pair, the kit can be used with the H2H matrix switcher series or HDDA distribution amplifier series for long distance AV signal extension with PoE capability without control signal extension requirements.

Highlights :

4K/UHD capability – Compatible with Ultra High Definition sources and displays.
Full support of 4K/UHD streaming services and playback devices.

HDCP 2.2 compliant – Adheres to latest specification for High-bandwidth Content Protection.
Allows protected content stream to pass between devices

Remote-powered receiver – Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT.
Saves time and integration costs.

Long distance HDMI extension – Transmits HDMI signals up to 230ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable.
Uses easy-to-integrate category cable for low-cost, reliable system installation.

Rear panel I/O connectors – Placement of ports on rear panel simplifies wire management.
Saves installation time and eliminates clutter

Field updatable firmware – Front panel USB port provides an easy means for kit upgrades.
Ensures long term system return on investment.

Multi channel audio compliant – Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X.™
Allows any multi-channel audio stream to be used within a professional audio system.

Front panel Power and Link status LEDs – LED indicators provide power and HDBaseT link status information.
Provides easy setup and troubleshooting

Power Chaining – Single power supply provides ample power for up to three Atlona Extender Kits.
Four Atlona Extender Kits may be powered using an optional power supply, p/n AT-PSU-48V1.25A.Reduces clutter from multiple power supplies in equipment racks.

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure. Easy installation into system racks and confined spaces behind displays.
Keeps devices out-of-sight when placed in public spaces.

Included accessories – User guide, desktop power supply for transmitter, detachable power cable, mounting brackets

Award-winning 10 year limited product warranty – Ensures long-term product reliability and performance in residential and commercial systems
Specify, purchase, and install with confidence
