Atlona Technologies 4K UHD HDMI Over HDBaseT Kit with Control and PoE (AT-UHD-EX-70C-KIT)

Name: Atlona Technologies 4K UHD HDMI Over HDBaseT Kit with Control and PoE (AT-UHD-EX-70C-KIT) - Projectorpoint
SKU: x9694
Price: 352.00 GBP
Availability: OutOfStock

Call for Availability

•

SKU: x9694

£422.40 Incl. VAT£352.00 Excl. VAT

Call Now

WishlistIn Wishlist

Manufacturer Overview

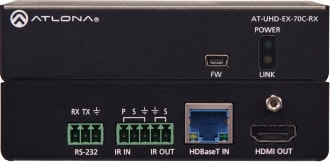

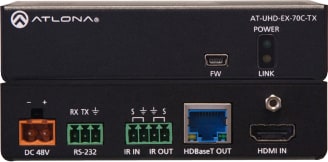

The Atlona AT-UHD-EX-70C-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit provides bidirectional extension of both 12 volt IR and RS-232 commands. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

Highlights :

4K/UHD capability – Compatible with Ultra High Definition sources and displays.
Full support of 4K/UHD streaming services and playback devices.

HDCP 2.2 compliant – Adheres to latest specification for High-bandwidth Content Protection.
Allows protected content stream to pass between devices

Remote-powered receiver – Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT.
Saves time and integration costs.

Bidirectional extension of both RS-232 and IR control commands -Control signals travel over HDBaseT for maximum control system flexibility.
Eliminates multiple cable runs between source, control system, and display

Long distance HDMI extension – Transmits HDMI signals up to 230ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable.
Uses easy-to-integrate category cable for low-cost, reliable system installation.

Flexible Bidirectional IR control capabilities – Transmitter: IR input designed for control system IR pass-through.
Receiver: IR Input designed to work with 12V IR receivers for source control

Rear panel I/O connectors – Placement of ports on rear panel simplifies wire management.
Saves installation time and eliminates clutter

Field updatable firmware – Front panel USB port provides an easy means for kit upgrades.
Ensures long term system return on investment.

Multi channel audio compliant – Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X.™
Allows any multi-channel audio stream to be used within a professional audio system.

Front panel Power and Link status LEDs – LED indicators provide power and HDBaseT link status information.
Provides easy setup and troubleshooting

Power Chaining – Single power supply provides ample power for up to three Atlona Extender Kits.
Four Atlona Extender Kits may be powered using an optional power supply, p/n AT-PSU-48V1.25A.Reduces clutter from multiple power supplies in equipment racks.

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure. Easy installation into system racks and confined spaces behind displays.
Keeps devices out-of-sight when placed in public spaces.

Included accessories – User guide, desktop power supply for transmitter, detachable power cable, mounting brackets and 1x IR emitter P/N AT-IR-CS-TX

Award-winning 10 year limited product warranty – Ensures long-term product reliability and performance in residential and commercial systems
Specify, purchase, and install with confidence
