Atlona Technologies 4K/UHD HDBaseT TX/RX with Three-Input Switcher, Ethernet, Control, and PoE KIT (4K-HDVS-EXT)

Call for Availability
FREE UK Mainland Delivery

SKU: x10255

Call for Price & Availability

Manufacturer Overview

4K/UHD HDBaseT Extender with Switching for HDMI and VGA Sources

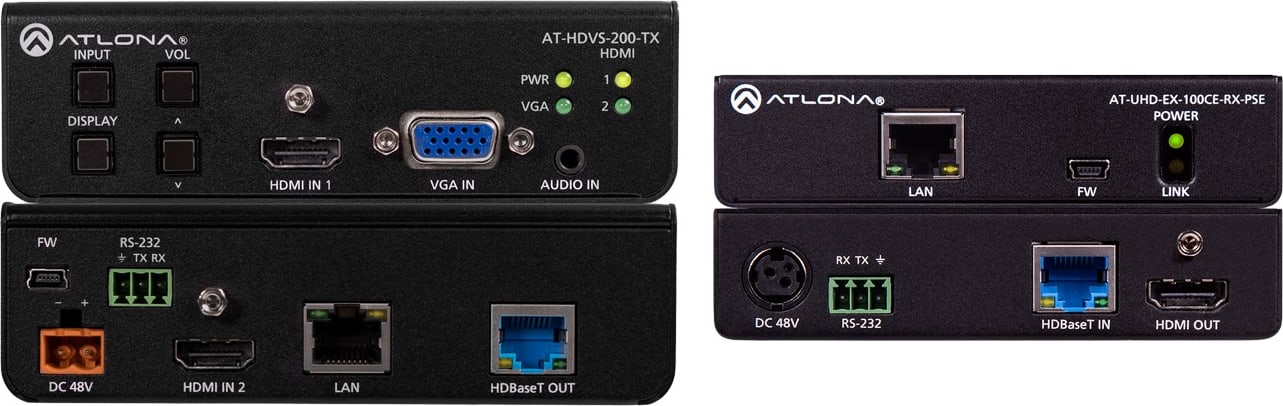

The Atlona 4K-HDVS-EXT is an HDBaseT transmitter and receiver kit that delivers a complete integration solution with 4K/UHD extension, automatic HDMI and VGA input switching, and automatic display control. It includes the AT-HDVS-200-TX three-input HDBaseT switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver.

Resolution
Video 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz* (UHD), 2048x1080p,
1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p,
576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900,
1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1280×768, 1152×864, 1024×768, 800×600,
640×480 (VGA input limited to a max of 1920×1200)
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
Color Depth 8-bit, 10-bit, 12-bit
Audio
Analog IN PCM 2Ch
HDMI IN / HDBaseT OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD,
DTS-HD Master Audio, Dolby Atmos
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 70 meters up to 230ft
CAT5e/6 @ 1080p up to 100 meters up to 330ft
CAT6a/7 @ 4K up to 100 meters up to 330ft
Signal
Bandwidth 10.2 Gbps
CEC Yes
HDCP 1.4 Compliant
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 17.8W
Supply (100CE-RX-PSE) Input: AC100~240V 50/60Hz Output: DC48V 0.83A
Dimension
H x W x D (HDVS-200-TX) 38 x 127 x 102 (mm) 1.5 x 5 x 4.02 (inch)
H x W x D (100CE-RX-PSE) 25 x 109 x 127 (mm) 0.98 x 4.29 x 5.00 (inch)
Weight
Unit (HDVS-200-TX) 0.29 kg 0.64 lbs
Unit (100CE-RX-PSE) 0.39 kg 0.86 lbs
Certification
Unit CE, FCC
Power Supply CE, FCC, cULus, RoHS, CCC, RCM

* 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
