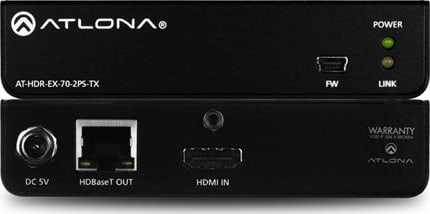

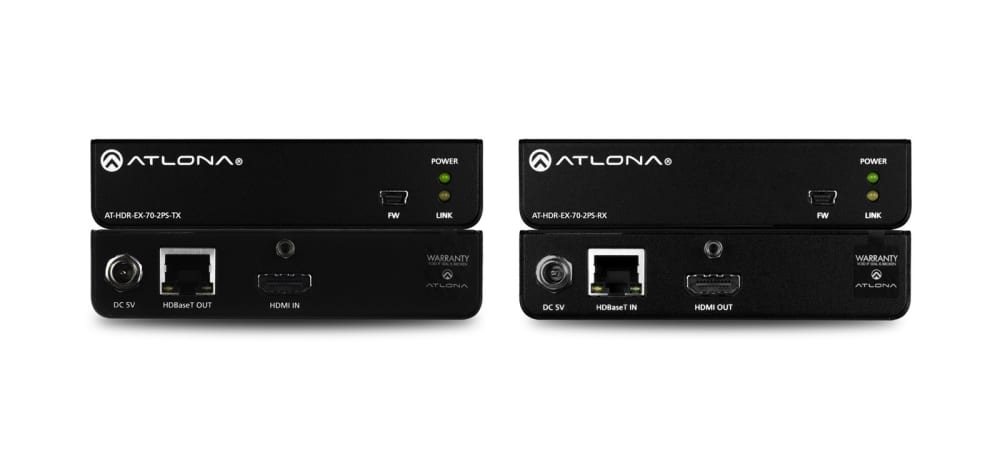

Atlona 4K HDR HDMI Over HDBaseT TX/RX Kit (HDR-EX-70-2PS)

Call for Availability

SKU: x10858

£384.00 Excl. VAT

Manufacturer Overview

An innovative yet practical solution for 4K HDR over HDBaseT : HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps – a significant challenge for extending signals over HDBaseT. The HDR-EX-70-2PS provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.

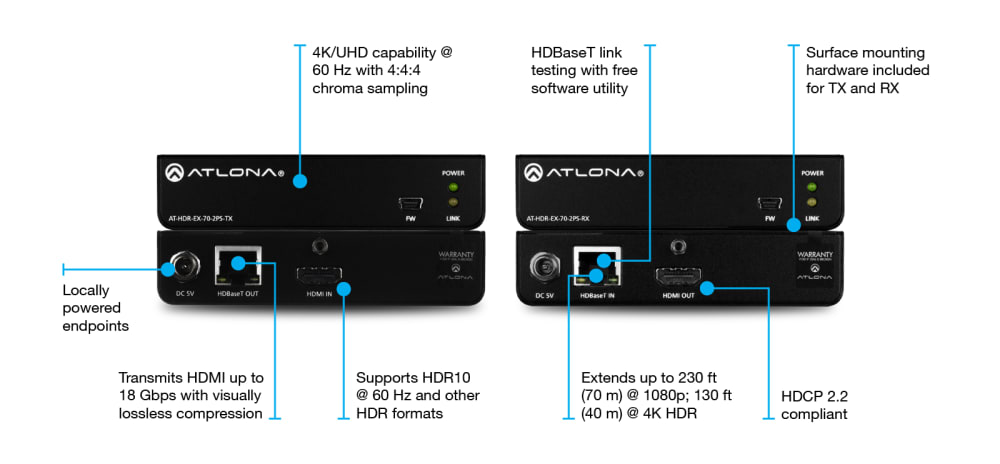

Features

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 @ 60 Hz and Dolby® Vision @ 30 Hz
  • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between authenticated devices

HDBaseT extender kit for HDMI up to 230 feet (70 meters)

  • Extends HDMI up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K HDR using CAT6a/7 cable*
  • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

Visually lossless compression

  • Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression with no latency
  • Innovative signal extension solution delivers very high, pristine image quality

Multi-channel audio compliant

  • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
  • Allows any multi-channel audio stream to be used within a professional audio system

Provides HDMI signal regeneration for source devices

  • Allows HDMI 1.2 sources such as cable television set-top boxes to be used in newer systems
  • Addresses the lack of support for the HDMI 1.3 clock stretching protocol required in HDBaseT extenders

HDBaseT link status testing

  • Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
  • Provides real-time link status, plus detailed HDBaseT and HDMI signal information
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality

Rear panel I/O connectors

  • Placement of ports on rear panel simplifies wire management
  • Saves installation time and eliminates clutter

Field-updatable firmware

  • Front panel USB port provides an easy means for device updates
  • Ensures long-term system return on investment

Front panel Power and Link status LEDs

  • LED indicators provide power and HDBaseT link status information
  • Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

  • Easy installation into racks and confined spaces
  • Keeps devices out-of-sight when placed in public spaces

Included accessories

  • Installation guide, surface mounting brackets, and two external universal power supplies

Award-winning 10 year limited product warranty

  • Ensures long-term product reliability and performance in residential and commercial systems
  • Specify, purchase, and install with confidence

<!–

–>

Video
Video 4096×2160@24Hz, 3840×2160@24/25/30Hz (UHD), 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@25/29.97/30Hz, 720p@30/50/59.94/60Hz
4K/HD/SD 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/
29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900,
1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600,
640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR 4K HDR10 @ 60Hz and Dolby® Vision™ @ 30Hz
Audio
Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD
Master Audio™, Dolby Atmos®, DTS:X
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate up to 24-bit
Resolution / Distance
CAT5e/6 @ 4K up to 35 meters up to 115 feet
CAT5e/6 @ 1080p up to 60 meters up to 200 feet
CAT6a/7 @ 4K up to 40 meters up to 130 feet
CAT6a/7 @ 1080p up to 70 meters up to 230 feet
HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 18 Gbps
CEC Yes
HDCP 2.2
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity (RH) 20 to 90%, non-condensing
Power
Consumption Transmitter: 4W Receiver: 5.9W
Idle Consumption Transmitter: 1.32W Receiver: 3.55W
Supply Input: 100 – 240V AC, 50/60Hz Output: 5V DC
