Panasonic PT-HTQ20

Optional Lenses for the Panasonic PT-HTQ20:

• ET-D3LEU101 (0.370:1)
• ET-D3LEW50 (0.694:1)
• ET-D75LE95 (0.364:1)
• ET-D3LEF70 (-)
• ET-D3LEW201 (0.645-0.850:1)
• ET-D3LEW300 (0.770-0.933:1)
• ET-D3LEW600 (0.924-1.28:1)
• ET-D3LEW10 (1.26-1.72:1)
• ET-D3LES20 (1.67-2.41:1)
• ET-D3LES250 (1.67-2.41:1)
• ET-D3LET30 (2.40-4.66:1)
• ET-D3LET40 (4.61-7.41:1)
• ET-D3LET80 (7.34-13.8:1)

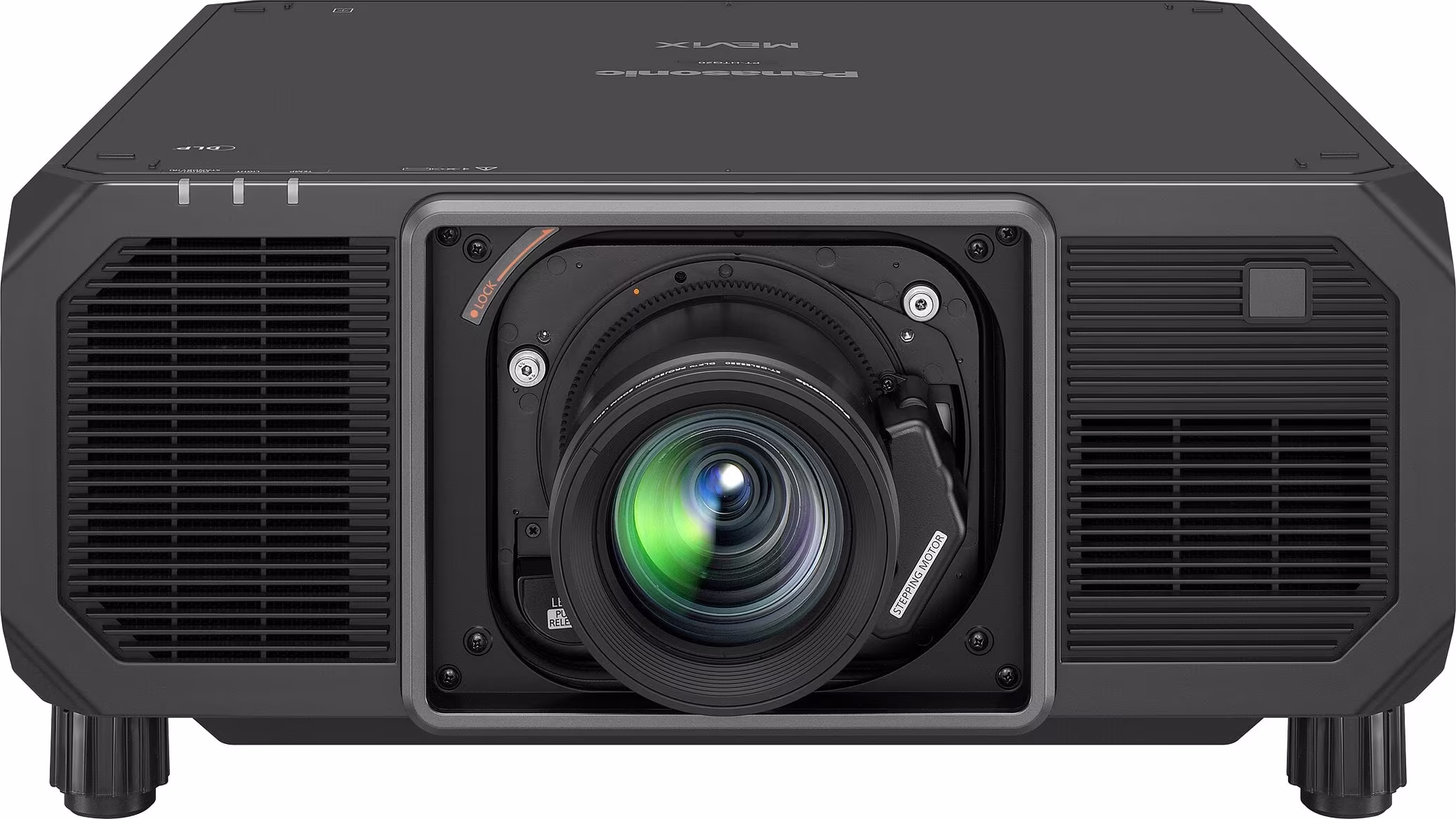

PT-HTQ20 – 1-Chip DLPTM RGB Laser Projector
Redefining Immersive Experiences with Rec. 2020 Colour, 20,000 lm1 Brightness, and Detailed 4K2 Resolution

Immersive Visual Expression for Diverse Environments
VIVID PRIME RGB laser technology supports the Rec. 2020 colour gamut standard, delivering vividly expressive 20,000 lm1 images that bring immersive attractions to the next level. With color brightness approaching 3-Chip DLP models, its proprietary RGB-plus-phosphor design maintains smooth gradations for Rec. 709 content and reduces rainbow effect. The projector delivers smooth 4K2 visuals with Quad Pixel Drive technology and supports high-frame-rate 2K/240 Hz playback3. An enhanced Gradation Smoother can reduce tonal banding across six levels.

Flexible Installation with Flagship Features

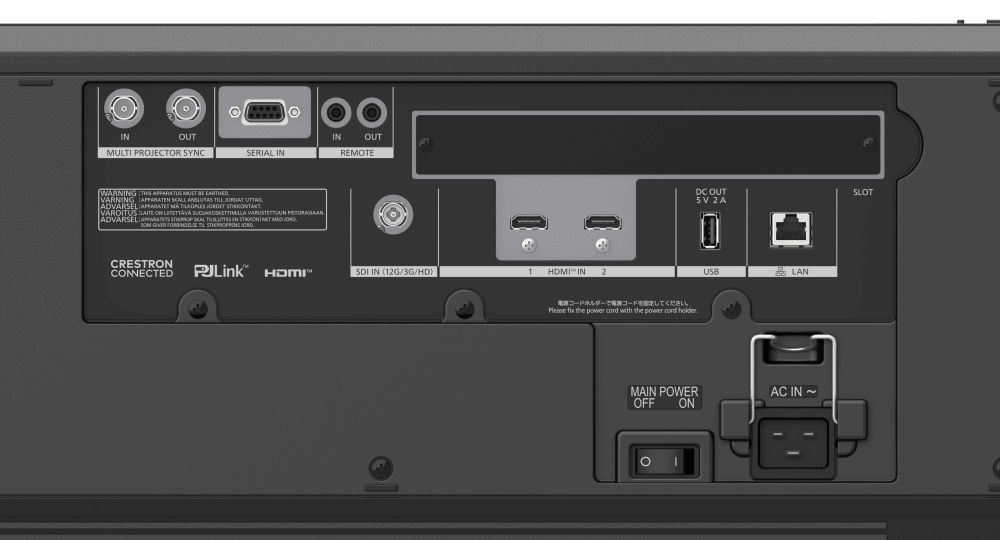

The PT-HTQ20 brings 3-Chip DLP-class features and flexibility to the 1-Chip category, with a compact size close to the PT-RQ25K and compatibility with Panasonic lenses for 3-Chip DLP projectors4. Full brightness is maintained on AC 120–240 V power5, broadening deployment options. In addition to a built-in 12G/3G/HD-SDI-compatible terminal, the projector features an Intel SDM standard-compatible slot for optional function boards including the ET-SBFMP10 media processor6, and integrates with Visual Software Suite7 to automate complex adjustment workflows.

High Reliability for Demanding Applications
The dust-resistant optical engine, together with the advanced cooling system and filterless design, enhances long-term reliability while reducing maintenance requirements. A built-in mechanical shutter helps protect the DMD from stage lighting effects, while key PCBs feature a proprietary coating to improve resistance to dust and humidity in harsh conditions. Backup Input8 and Multi-Laser Drive Engine minimise interruptions during mission-critical presentations.
