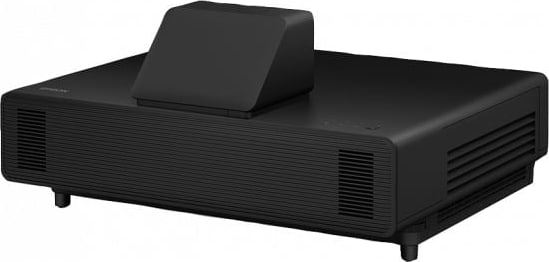

Epson EB-805F
The Epson EB-805F is a versatile laser projector with 5000 lumens, Full HD resolution, and a 5-year warranty. Perfect for signage and small spaces.
- 5000 Lumens Brightness (Laser / LCD)
- 1080p Resolution – 16:9 Aspect Ratio
- Lens Ratio 0.27-0.37 : 1
- 5 Years warranty
- 5 Years / 12000 cumulative hours Laser warranty
- 9.4 KG
- Does not ship with wall mount in the box as standard. Full details on optional Epson Wall mount (ELPMB62)
- Project pricing available
£2,148.00 Excl. VAT
Quick Links
Projectorpoint Opinion
The Epson EB-805F features a bright 5000 ansi lumens, Full HD 1080p resolution (1920 x 1080 pixels, 16:9 aspect ratio) and a laser light source for up to 20,000 hours of trouble free presentations.
The EB-805F also features a dedicated ultra short throw lens capable of achieving a 2.5mtr wide image from just 47cm throw distance between projector and screen. A popular choice where bright, large high definition images are required but room size is small or throw distance is limited.

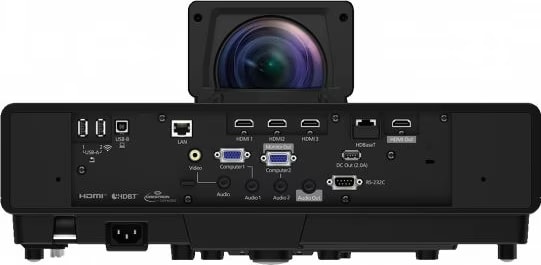

Extensive connectivity including 3 HDMI inputs and 1 output, HDBaseT and 2 x USB-A inputs and a separate LAN input.
A truly versatile projector and a good choice for museums, art galleries and meeting rooms.
Manufacturer Overview
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson’s advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that’s capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
Key Features
– Ultra-short-throw signage projector: Compact, unobtrusive design.
– Up to 130-inch display: Full HD resolution, 5,000 lumen brightness and 3LCD technology
– Fit and forget reliability: Low maintenance laser projector with a 5 year warranty
– Easy installation: 360 degree rotation with portrait projection support
– Flexible playback: Play content directly from a USB stick
Technical Specifications
- Number of colours
- 1.07 billion colours
- White light output
- 5000 ANSI lumens
- Colour light output
- 5000 ANSI lumens
- Projector native resolution
- 1080p (1920×1080)
- Projection distance (wide)
- 0 – 0.4 m
- Projection distance (tele)
- 0 – 0.8 m
- Native aspect ratio
- 16:9
- Screen size compatibility
- 1651 – 3302 mm (65 – 130″)
- Contrast ratio (typical)
- 2500000:1
- Zoom ratio
- 1.35:1
- Vertical scan range
- 192 – 240 Hz
- Projector brightness (economic mode)
- 3500 ANSI lumens
- Matrix size
- 1.57 cm (0.62″)
- Keystone correction, vertical
- -3 – 3°
- Keystone correction, horizontal
- -3 – 3°
- Projection technology
- 3LCD
- Projector brightness
- 5000 ANSI lumens
- Zoom type
- Auto
Lamps
- Light source type
- Laser
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 30000 h
Lens system
- Fixed focal length
- 3.9 mm
- Focus
- Manual
- Throw ratio
- 0.27 – 0.37:1
Video
- Video processing
- 10 bit
- Video colour modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
- Full HD
- Yes
- Built-in speaker(s)
- Yes
- RMS rated power
- 8 W
Ports & interfaces
- HDMI connector type
- Full-size
USB 2.0 Type-B ports quantity
- USB 2.0 Type-B ports quantity
- 1
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 4
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 2
Audio (L/R) in
- Audio (L/R) in
- 3
Audio (L/R) out
- Audio (L/R) out
- 1
- Serial interface type
- RS-232C
Network
- Ethernet LAN
- Yes
Sound emission
- Noise level
- 36 dB
- Noise level (economic mode)
- 27 dB
Technical details
- Product colour
- Black
- Products per pallet (UK)
- 12 pc(s)
Performance
- Password protection
- Yes
Features
- Country of origin
- China
Design
- Product type
- Ultra short throw projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Ceiling, Desktop, Wall
Power
- AC input voltage
- 220-240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 366 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 262 W
Packaging data
- Package width
- 535 mm
- Package depth
- 595 mm
- Package height
- 350 mm
- Package weight
- 13.2 kg
Software
- Bundled software
- Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
- Software support
- via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
- Storage temperature (T-T)
- -10 – 60 °C
Weight & dimensions
- Weight
- 9.4 kg
- Width
- 458 mm
- Depth
- 375 mm
- Height
- 210 mm
Packaging content
- Remote control included
- Yes
- Warranty card
- Yes
- Cables included
- AC
- Batteries included
- Yes
- WLAN adapter included
- Yes
Other features
- Supported network protocols
- HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
