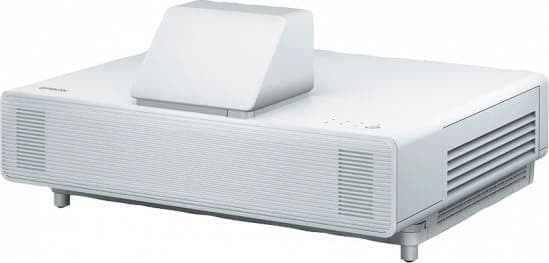

Epson EB-800F

In Stock
FREE UK Mainland Delivery

SKU: p5468

The Epson EB-800F: versatile, cost-effective ultra-short-throw display. Full HD, 5,000 lumens brightness. Perfect for retail, hospitality, and attractions.

  • 5000 Lumens Brightness (Laser / LCD)
  • 1080p Resolution – 16:9 Aspect Ratio
  • Lens Ratio 0.27-0.37 : 1
  • 5 Years warranty
  • 5 Years / 12000 cumulative hours Laser warranty
  • 9.4 KG
  • Does not ship with wall mount in the box as standard. Full details on optional Epson Wall mount (ELPMB62)

£2,150.00 Excl. VAT

We offer credit terms to education, health, government bodies and PLC companies.

Email official purchase orders to info@projectorpoint.co.uk

Bundle Offers (Applied at Checkout)

Icon of a Cable

Free 5m HDMI cable (18Gbps)

View Cable
Icon of a Projector Screen

£30 off any Projector Screen

View All Screens
Icon of a Projector Mount

£30 off any Mount

View All Mounts

Projectorpoint Opinion

The EB-800F is a bright and scalable ultra-short-throw display solution that brings Epson innovation to signage applications.

Manufacturer Overview

This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson’s advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that’s capable of large display sizes.

Large and scalable images
The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install

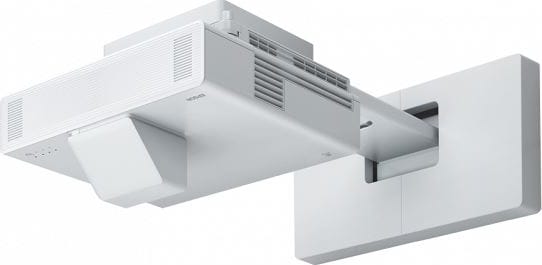

This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Key Features
– Ultra-short-throw signage projector: Compact, unobtrusive design.
– Up to 130-inch display: Full HD resolution, 5,000 lumen brightness and 3LCD technology
– Fit and forget reliability: Low maintenance laser projector with a 5 year warranty
– Easy installation: 360 degree rotation with portrait projection support
– Flexible playback: Play content directly from a USB stick

Technical Specifications


Number of colours
1.07 billion colours
Projector native resolution
1080p (1920×1080)
Projection distance (wide)
0 – 0.4 m
Projection distance (tele)
0 – 0.8 m
Native aspect ratio
16:9

Screen size compatibility
1651 – 3302 mm (65 – 130″)
Contrast ratio (typical)
2500000:1
Zoom ratio
1.35:1
Zoom capability
Yes
Vertical scan range
192 – 240 Hz
Projector brightness (economic mode)
3500 ANSI lumens
Matrix size
1.57 cm (0.62″)
Keystone correction, vertical
-3 – 3°
Keystone correction, horizontal
-3 – 3°
Projection technology
3LCD
Projector brightness
5000 ANSI lumens
Zoom type
Auto

Lamps

Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h

Lens system

Fixed focal length
3.9 mm
Focus
Manual
Throw ratio
0.27 – 0.37:1

Video

Video processing
10 bit
Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Full HD
Yes
3D
No
Built-in speaker(s)
Yes

Number of built-in speakers

Number of built-in speakers
2
RMS rated power
8 W

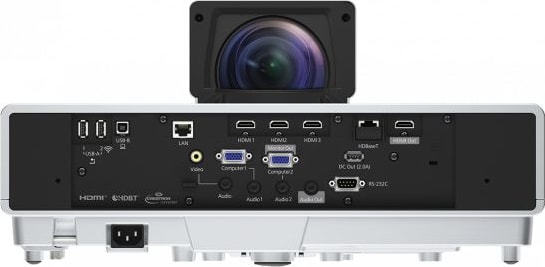

Ports & interfaces

HDBaseT port
Yes

USB 2.0 Type-B ports quantity

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity
3

HDMI ports quantity

HDMI ports quantity
4

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity

USB 2.0 ports quantity
2

Composite video in

Composite video in
1

Audio (L/R) in

Audio (L/R) in
3

Audio (L/R) out

Audio (L/R) out
1
Serial interface type
RS-232C
DVI port
No

Network

Smart TV
No
Ethernet LAN
Yes
Ethernet LAN data rates
10,100 Mbit/s
Wi-Fi
No

Ethernet LAN (RJ-45) ports

Web browser
Yes

Storage

Card reader integrated
No

Sound emission

Noise level
36 dB
Noise level (economic mode)
27 dB

Technical details

Product colour
White
Products per pallet (UK)
12 pc(s)

Performance

Password protection
Yes

Features

Country of origin
China

Design

Product type
Ultra short throw projector
Cable lock slot type
Kensington
Cable lock slot
Yes
Placement
Ceiling, Desktop, Wall

Power

AC input voltage
220-240 V
AC input frequency
50 – 60 Hz
Power consumption (typical)
366 W
Power consumption (standby)
0.5 W
Power consumption (economy mode)
262 W

Packaging data

Package width
530 mm
Package depth
595 mm
Package height
345 mm
Package weight
13.2 kg

Software

Bundled software
Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Software support
via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Operational conditions

Storage temperature (T-T)
-10 – 60 °C

Weight & dimensions

Weight
9.4 kg
Width
458 mm
Depth
375 mm
Height
210 mm

Packaging content

Remote control included
Yes
Warranty card
Yes
Cables included
AC
Batteries included
Yes
WLAN adapter included
Yes

Other features

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
