C2G – 10m Black Cat6 UTP Snagless RJ45 Patch Cable (C2G83412)
£11.00 Excl. VAT
WishlistIn Wishlist Quick Links
Manufacturer Overview

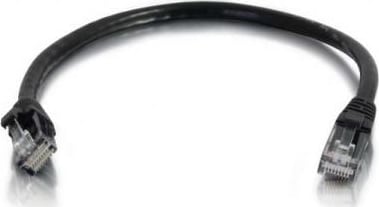

10m Cat6 Booted Unshielded (UTP) Network Patch Cable – Black
Snagless booted design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
• Product #: 83412.
• Connector 1: (1) RJ-45 Male.
• Connector 2: (1) RJ-45 Male.
Product Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily colour-coded your network installation. Each cable is individually labelled with the length for ease of use.
Product Features

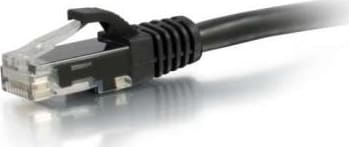

• Snagless booted design protects clips when plugging and unplugging.
• Standard RJ45 connectors and unshielded twisted pair wires.
• Available in 11 colours to colour-code a network.
• Available in lengths up to 100m.
Product Specifications
• Colour: Black.
• Length: 10.00 Meter.
• Jacket Rating: Standard Non-Rated.
• UPC: 757120834120.
• Warranty: Lifetime.
• Vendor: C2G.
• Weight: 0.416 KG.
• Download the technical specifications on this product from the Support tab
Electrical Characteristics
• Conductor DC Resistance: 9.38Ω 100m (maximum).
• Impedance: 100Ω.
• Capacitance: 5600pf/100m.
• Propagation Delay: 545ns/100m (maximum).
• Delay Skew: 45ns/100m (maximum).
Physical Characteristics
• Wiring Scheme: T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9.
• Connector: 50 micron gold-plated RJ45.
• Temperature Rating: 60°C.
• Voltage Rating: 30V.
• Approvals: RoHS Compliant.
• Warranty: Lifetime.
• Package Type: Polybag.
Conductor (Qty. 4 Twisted Pair)
• Conductor Type: 24AWG (7/0.20), Stranded Bare Copper.
• Insulation: H-D PE.
• Diameter: 0.98 ± 0.05mm.
• Colours: Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White.

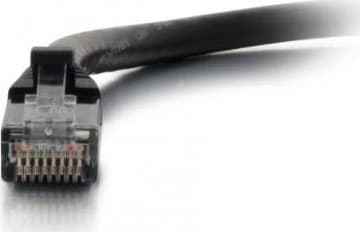

Connector Type (Qty. 2)
• Connector Type: 8P8C (RJ45).
• Gender: Male.
• Connector Material: Polycarbonate.
• Contact Material: Copper Alloy, Gold Plating – 50µm.
• Hood Material: Moulded PVC.
Overall Cable
• Jacket: PVC.
• Minimum Average Thickness: 0.60mm.
• Outer Diameter: 6.20 ± 0.30mm.
Product Uses
• Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3).
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN.
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM.
• Voice; T1.
