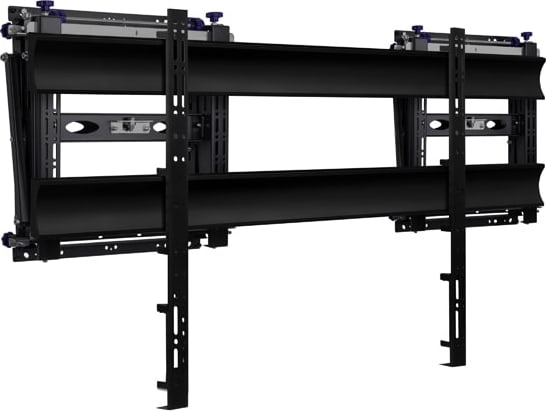

BTech – Full Service Wall Mount for XXL Displays (BT9926)

BT9926 is a dual rail, pop-out wall mount solution designed for extra large 21:9 ultra-wide signage displays. The screen is securely mounted across dual horizontal rails, for a straightforward hook-on installation. The mount features an easy to use push-to-release soft pop-out feature, which allows for easy access during servicing. Additionally, micro-adjustment thumb wheels enable precise screen alignment, ideal for recessed installations.

• Designed to wall mount 21:9 ultrawide signage displays
• Universal design suitable for other extra-large screens over 80″

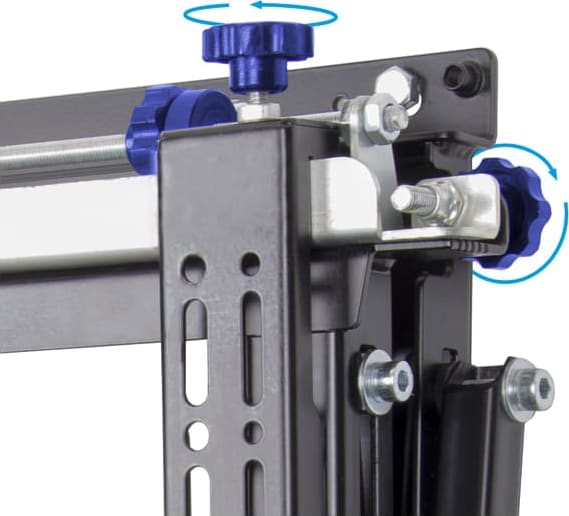

• Tool-less micro-adjustment of +/-7mm

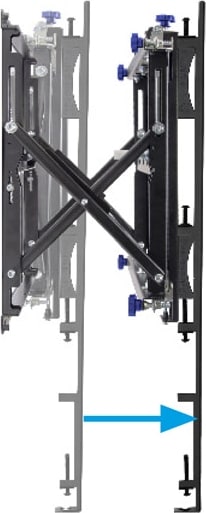

• Pop-out system provides a safe and easy service access
• Straightforward ‘hook-on’ installation

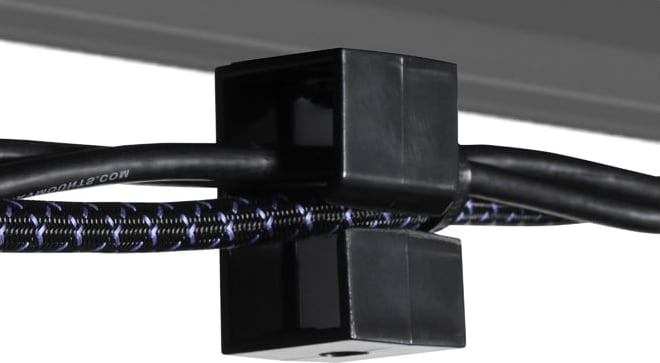

• Cable management clips included to keep the installation tidy
• Ideal for recess mounting
• Features depth, height and lateral micro-adjustment
• Keyhole fixings on wall plates for an easier installation
• Safety screws help prevent unauthorised removal of screens
• All mounting hardware included
• Suitable use with: Jupiter Pana105T, Avocor AVL-1050-T & Viewsonic IFP105S displays

Specifications

• Recommended screen size: 80” (203cm) up to 120″ (305cm)
• Max load: 200kg (440lbs)
• VESA® and non-VESA Fixings: up to 1600 x 800mm
• Flat to wall depth: 146.5mm (5.7″) (+/-7.5mm with micro-adjustment)
• Popped out depth: 338.5mm (13.3″) (+/-7.5mm with micro-adjustment)
• Tool-less micro-adjustment: +/-7.5mm per corner
• Colour (mounting rail): Black or Silver
• Colour (VESA arms): Black
