Vision – 1.2m Projector Ceiling Bracket (TM1200)

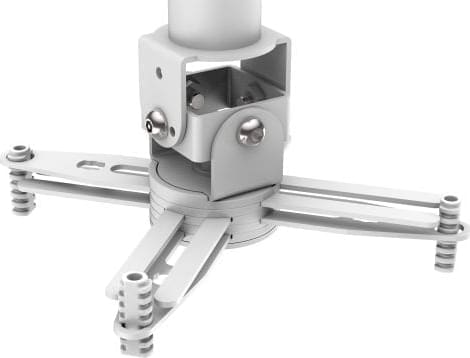

The Techmount is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It has built in flexibility allowing quick assembly in a number of different configurations, including “flush-mount” where the projector is as close to the ceiling as possible.

The fixed pole has greater rigidity than telescopic mounts and because it is cut it to length onsite it has an infinitely variable length. The overall length when the tilting mechanism is in place is 1420mm. An optional 1m male-to-female extension pole is available which can be daisy-chained. Order Code: TM-1200 EXT1M

Sloping Ceilings? : A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.



Safety Approved : In line with best-practise a safety fall-arrest tether is included which secures the projector to your bracket. Independent testing on calibrated test equipment measured a breaking-strain of half a ton! We recommend a maximum safe working load of 10kg which is well within the limits of the product and up to BSi installation standard specification (PAS122:2009).



Easy fit : Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.

Obstruction-free Cable Management : Rather than having a bolt that runs through the pipe and blocks cable access, we use our unique quad-bolt ‘chute-through’ system which leaves cable access clear – even for a big VGA connector.



Tools Included : A spanner and pin-hex key are included. The only tool you’ll need is a 2? pipe cutter (ask your tool supplier for a cutter with a 6-67mm (0.24? – 2.64?) range, and a metal cutting disk). We’ve also included a drilling jig so you can easily and accurately drill 9mm (0.35?) holes into the pole.



Secure : Quick-release mechanisms make life easier for thieves, so the TM-1200 is secure and features security bolts.
