For recommendations for choosing your screen size please see our Screen size advice page.
To make sure this projector is the right fit for you room

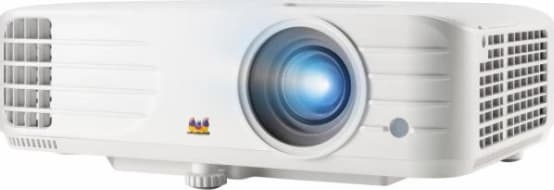

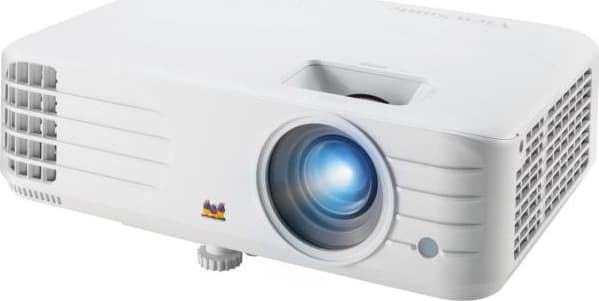

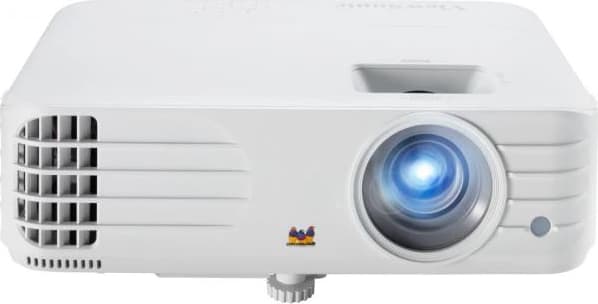

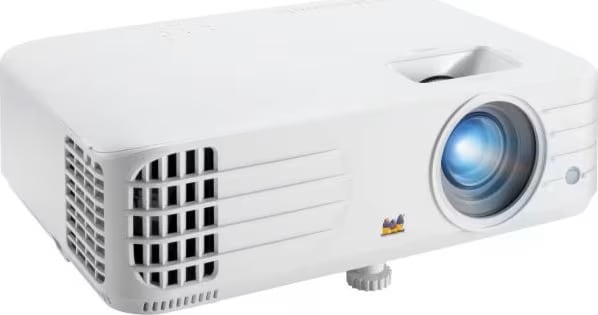

The ViewSonic PG701WU is a high brightness WUXGA projector with 1920 x 1200 resolution and a 16:10 aspect ratio. The 3,500 ANSI lumens of brightness allows the PG701WU to project images in full depth and detail, even in brightly lit medium-sized spaces, such as meeting rooms or classrooms. Its new SuperEco+ mode extends the projector’s lamp life of up to 20,000 hours, effectively reducing lamp replacement and maintenance costs. In addition, the dual HDMI ports allow you flexibly connect to your laptop, PC, and other high definition devices for presentation files or multimedia applications. Lastly, the USB Type A with power supply provides connectivity to a USB dongle for a wireless presentation.
Bright and Clear Images Anywhere
3,500 ANSI Lumens of brightness guarantee bright and clear images in any environment, including meeting rooms or classrooms with high levels of ambient light.
WUXGA resolution for Subtle Details
With WUXGA (1920 x 1200) native resolution in 16:10 aspect ratio, this projector delivers more information displayed with ultra-sharp image details.
Vivid Color Performance
ViewSonic’s proprietary SuperColor technology displays a wide colour range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.
The Energy-efficient SuperEco+ Mode for a Lamp Life of up to 20,000 Hours
With the latest technology to enhance lamp life, the SuperEco+ mode greatly extends the durability of the PX701HD from 15,000 hours to 20,000 hours of use with a signal input.
SuperEco+ Mode: when the projector has not received an input signal for 5 minutes, the projected images are dimmed by 40%, extending the lamp’s lifespan to 20,000 hours on average for reliable long-term usage.
Reduced Energy Consumption
When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.
Customized User Modes for Your Color Preference
Aside from ViewSonic’s default picture mode, two extra user modes were added to ensure that the users can save their preferred settings with up to a total of 7 colour modes.
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service centre for software updates.
Integrated Power Source
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your favourite multimedia content.

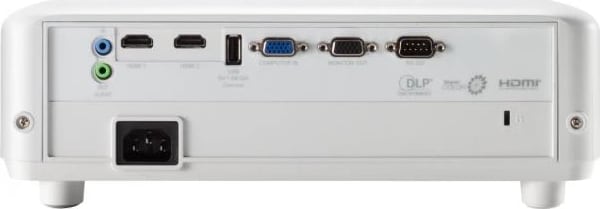

Dual HDMI ports provide enough connectivity to support any of your HDMI multimedia devices, delivering a big screen experience for any occasion.
Reminder for Time Management
The Presenter Timer is an embedded on-screen timer and a great time management tool for helping presentations run on schedule.
USB for display and control
USB Type A for power
USB for PC Less Presentation
RJ45 For Control/Monitoring
RS232 For Control
Dimensions (W x H x D) in cm
31.2 x 10.8 x 22.2
Fan Noise (db)
Fan Noise in Eco Mode (db)
Audio Output (Watts)
Lamp Life (Hours)
Lamp Life Eco Mode (Hours)
