Vision – Flush Projector Ceiling Bracket (TM-CC – 1932372)

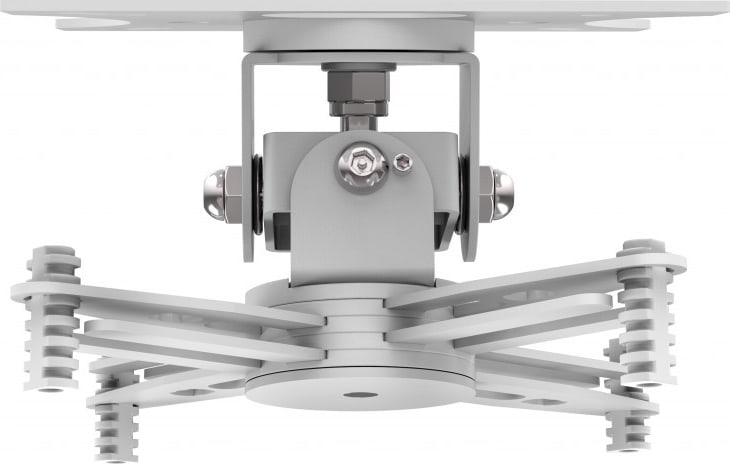

The Techmount TM-CC is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It is designed for applications where no ‘drop’ is required so no pole is included.

Easy fit – Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.

Secure – Quick-release mechanisms make life easier for thieves so the TM-CC comes with secure pin-hex bolts.

Robust construction – Robust Construction High standard of finish and over-engineered for stability and safety. A rugged high-quality satin-white finish blends with ceiling tiles.

Manoeuvrable – The top and bottom parts can rotate 360 degrees, and the spider arms have a maximum span of 340mm.

Sloping Ceilings – A tilting mechanism is built in allowing you to use the bracket with cathedral-type ceilings.

Safety Approved – As with all projector Techmounts a safety cable is included to attach to the projector. The TM-CC has a recommended maximum safe working load (SWL) of 10kg which is well within the limits of the product.

Drop: 11 cm

PACKAGED WEIGHT: 1.9kg

SAFE WORKING LOAD: 10kg

COLOUR: Satin White

ACCESSORIES INCLUDED:

• 1 x H50 Pin-Hex key
• 1 x 17mm Spanner
• 4 x M2.5 43mm pan slot for Optoma & Acer
• 4 x M3 43mm screws
• 4 x M4 43mm screws
• 4 x M5 43mm screws
• 4 x M6 43mm screws
• 4 x M8 50mm Ceiling Fixtures with rawl plugs
• 1 x Safety Tether
