Sonance PS-C63RT Professional 6.5inch in-ceiling speaker (pair, white finish)

Performance,
Sonance Professional Series has been engineered with a level of attention to detail not typically seen in the commercial audio industry. The range features a full-fidelity transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension and chambered 1″ pivoting tweeter for precise high-end detail and exceptional off-axis performance.

Aesthetics
Sonance Professional Series In-Ceiling Speakers feature a bezel-less grille design to minimise visual distraction and reduce shadow lines.



Installation
A one-piece grille allows for a one-step painting process, while the magnetic retention simplifies installation and reduces the risk of damage during fitment and removal. The sealed metal enclosure incorporates cable and conduit clamping, side knock-out, seismic attachment and a swing-door connector cover. An easily-accessible Euroblock connector provides input and loop through connections, while the seismic attachment provides added security when used in suspended ceiling applications.

The PS-C63RT features a high-excursion 6” polypropylene woofer which delivers effortless low bass extension, that exceeds most 8″ competitive products, while the pivoting chambered 1” soft dome tweeter can be directed to ensure accurate coverage, when speaker positioning is compromised.



A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance. The PS-C63RT features a sealed metal enclosure, integrated cable and conduit clamping, removable Euroblock connector with loop-through, swing-open connector cover and seismic attachment. Additionally, the Sonance PS-C63RT is certified for UL 1480 and UL 2043.

• Frequency Range (-10dB) : 49Hz – 25kHz
• Frequency Range (-3dB) : 65Hz – 20kHz
• Power Capacity : 120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise
• Nominal Sensitivity : 91dB
• Nominal Coverage Angle : 120 degrees conical coverage
• Directivity Factor (Q) : 6.5
• Directivity (DI) : 7.9dB
• Rated Maximum SPL : 108dB @ 1 meter (3.3 feet) average, 116dB peak
• Rated Impedance : 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps : 60W, 30W, 15W (7.5W 70V)
• Crossover Point : 2750Hz

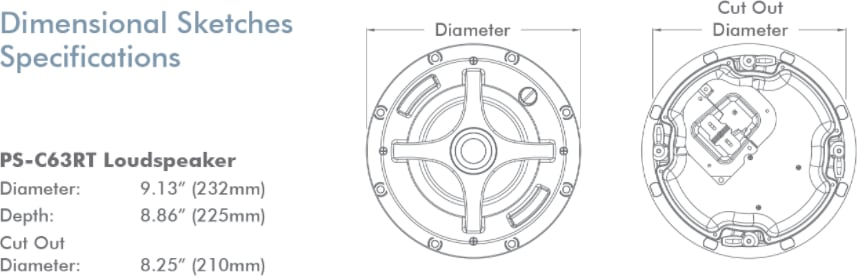

• Overall Dimension : 9.13” Diameter x 8.86” Depth (232mm x 225mm)
• Cut Out Dimension : 8.25” Diameter (210mm)
• Net Weight : 5 lbs (2.27kg) each
• Grille : Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille
• LF Driver : 6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver : 1” (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
• Input Connector : Four pin Euroblock with loop output connections
• Knockout : One, side mounted .75”
• Safety Agency : UL 1480, UL 2043, NFPA 90A, NFPA 70
• Maximum Ceiling Thickness : 1.732” (44mm)
• Suspension Points : One, on top surface
