When the case of the projection screen cannot be installed into the ceiling, the Projecta Elpro Concept offers an elegant design sensitive alternative.
The 0.9 Gain HD Progressive fabric is designed for use with your HD or 4K UHD projector in low ambient light levels. If your environment is bright or you cannot control the lighting, please contact us so we can specify the correct gain level fabric for this screen.
Please note this screen is made to order. No returns or refunds are accepted once your order has been processed unless the screen has a manufacturing fault.
Overall Casing Dimensions : 253.1 cm x 11.26 cm x 10.6 cm
Projecta raises the bar for every wall or ceiling installation. The leaf-shaped case of the Elpro Concept offers a stylish solution for design-sensitive installations.The entire range of Elpro Concept is available up to a width of 380 cm wide and comes with a 5 year limited warranty.
Tab-Tensioned :The tab-tensioning system will keep the projection surface under a constant tensioning for a perfectly flat viewing area. A flat projection surface will get the most out of your projector, making sure no pixels get lost or deformed. If detail is important a perfectly flat projection area is vital.
HD Progressive Screen Material: Colour fidelity, image uniformity, pixel preservation - The best surface for HD and 4K UHD projection When you look closely at a projection screen surface, many surfaces look like varying grains of sandpaper and others have microscopic variations on the surface. This causes pixel loss and “noise” in the image because the surface isn’t able to perfectly reflect the projected image. As projection resolution advances, pixel preservation becomes much more important to preserve the clarity of your image.
The chemistry behind a HD Progressive surface is formulated to create a surface free of microscopic variances allowing the screen to essentially disappear. The result is brilliant light, vibrant color and the best surface for HD, 4K and Ultra HD projection.
Color Fidelity - We hold ourselves to the highest standard when it comes to color fidelity. All of our surfaces are individually tested and color measured to ensure each surface will preserve the true color of the projector.
Image Uniformity - It is imperative that the surface reflects light in a manner that maintains the uniformity of the image being projected.
Pixel Preservation - The clarity of an image is in the microscopic details. Our vinyl technology ensures a premium surface, free of microscopic dips or grooves, so that every pixel is preserved.
Electrically operated projection screen 230 volt (50Hz) with a usage of no more than 0.53 Ampere (121.9 Watt).
The motor is mounted on the left side in the steel casing with rubber dampers to reduce sound.
The motor is mounted inside the roller, 4 wire, 26 rotations per minute, maintenance free, integrated brake and thermal overload cut-out.
The 4 wire connection is integrated into the end cap and can be connected to the electric installation with the connector and standard cable.
Suitable for wall or ceiling mounting with the supplied mounting brackets which can be positioned within 50cm of either side of the case.

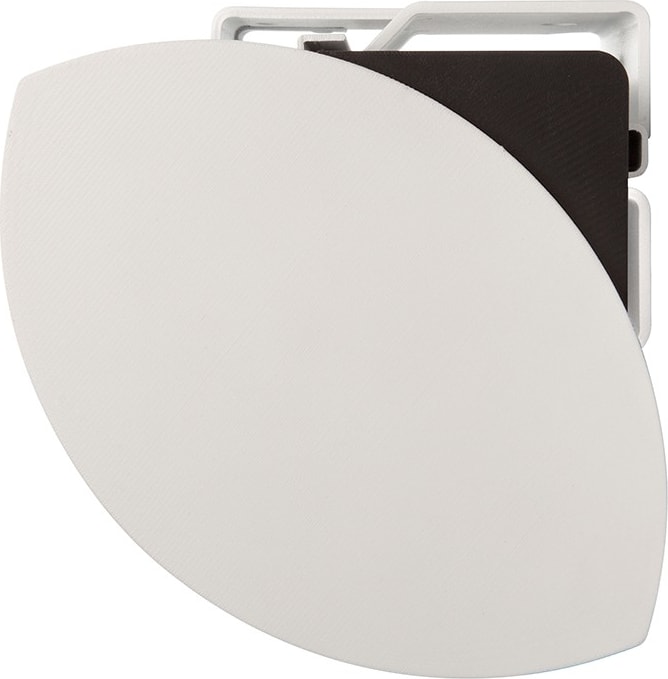

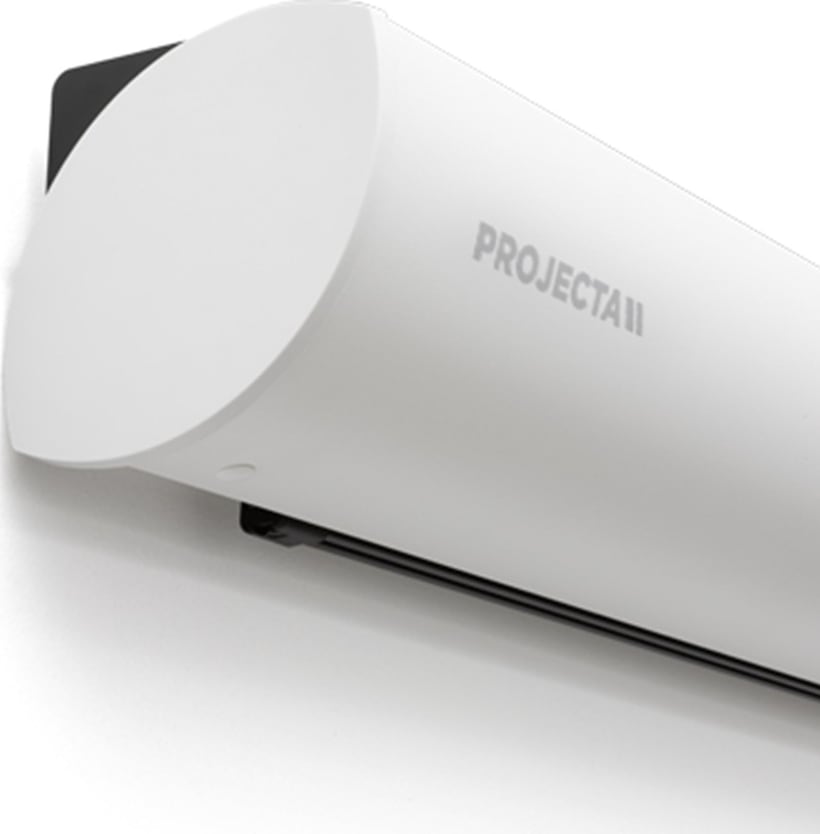

The leaf shaped steel casing (14,6 x 15,4cm) is galvanised on the inside and on the outside powder coated with a matte structure coating (RAL 9016).

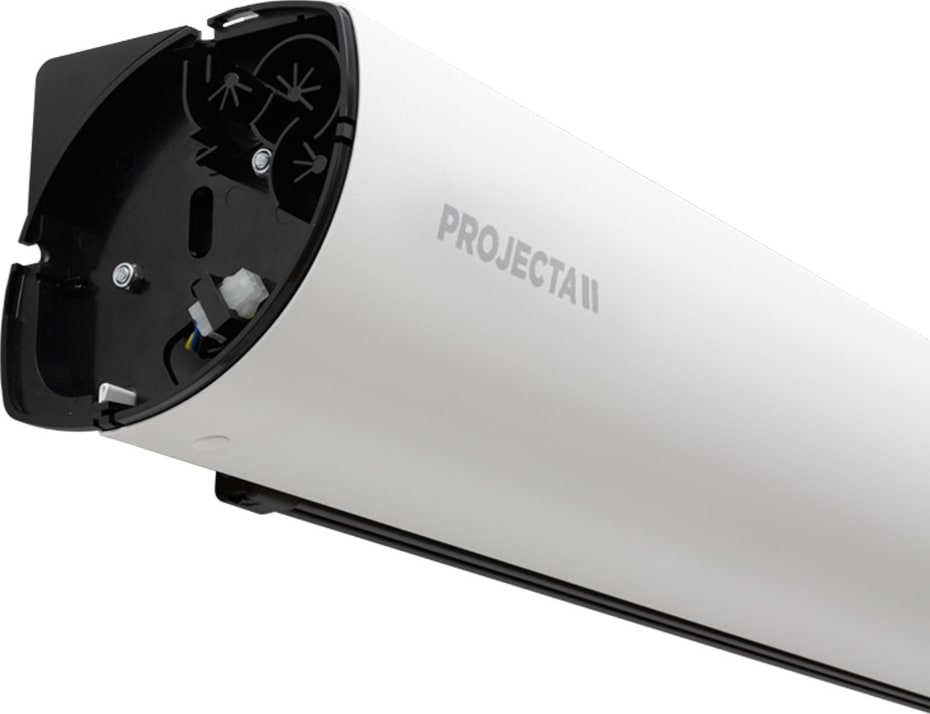

The white end caps close the casing on both ends. After removing the left end cap an Easy Connectivity plug is accessible for easy connecting of power and accessories.
The triangular slat bar rolls into the case completely.
The screen fabrics are flame retardant and seamless in the viewing area.
Each side of the surface to have tab guide cable system to maintain even lateral tension and hold surface flat.
Custom slat bar with added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy duty plastic caps enclosing a preset adjustable mechanism for screen tensioning.
The projection fabrics have a black backing.
Standard 3 position wall switch is supplied.
The projection screen is CE marked and satisfies the strictest quality and safety requirements.
Optional bespoke customisations
On request we can provide pricing to have any of the following customisations applied to this screen.
Shorten or reduce the width of the projection screen surface.
Shorten the case and shorten or reduce the width of the projection screen surface.
Extension of the projection screen surface : If required and technically feasible, Projecta installs a longer projection surface in the case.
Projection screen without black borders.
Reverse installation of the surface so that the projection side is located to the rear : Specify this method when the projection screen surface needs to exit the case reversely because the normal screen path is obstructed by an obstacle or because the case is to be mounted to a beam.
Paint the case, slat bar and plastic components in a different RAL colour : When the screen needs to match a specific colour scheme, Projecta can paint the case in any RAL colour specified.
